P0522

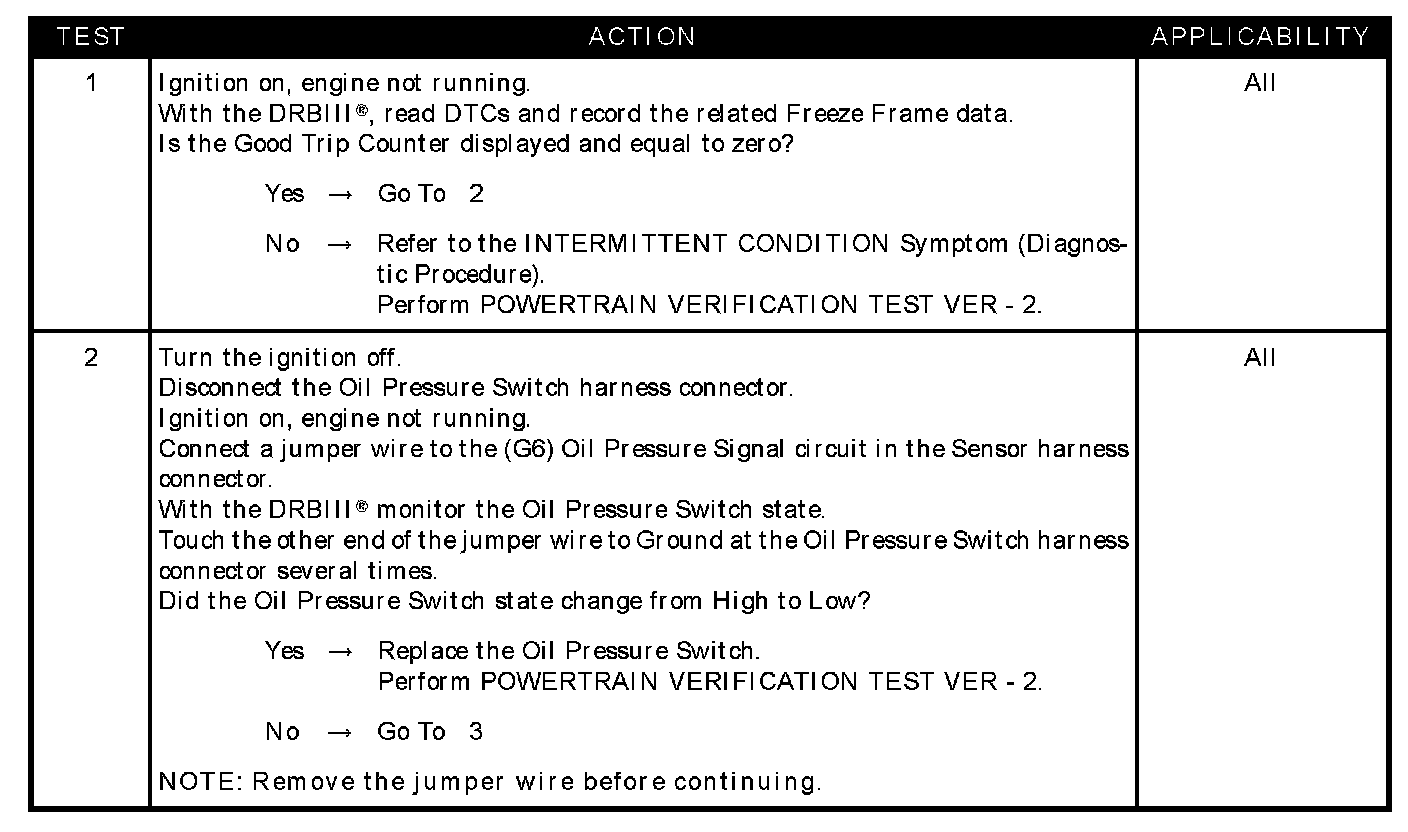

Test 1 - Test 2:

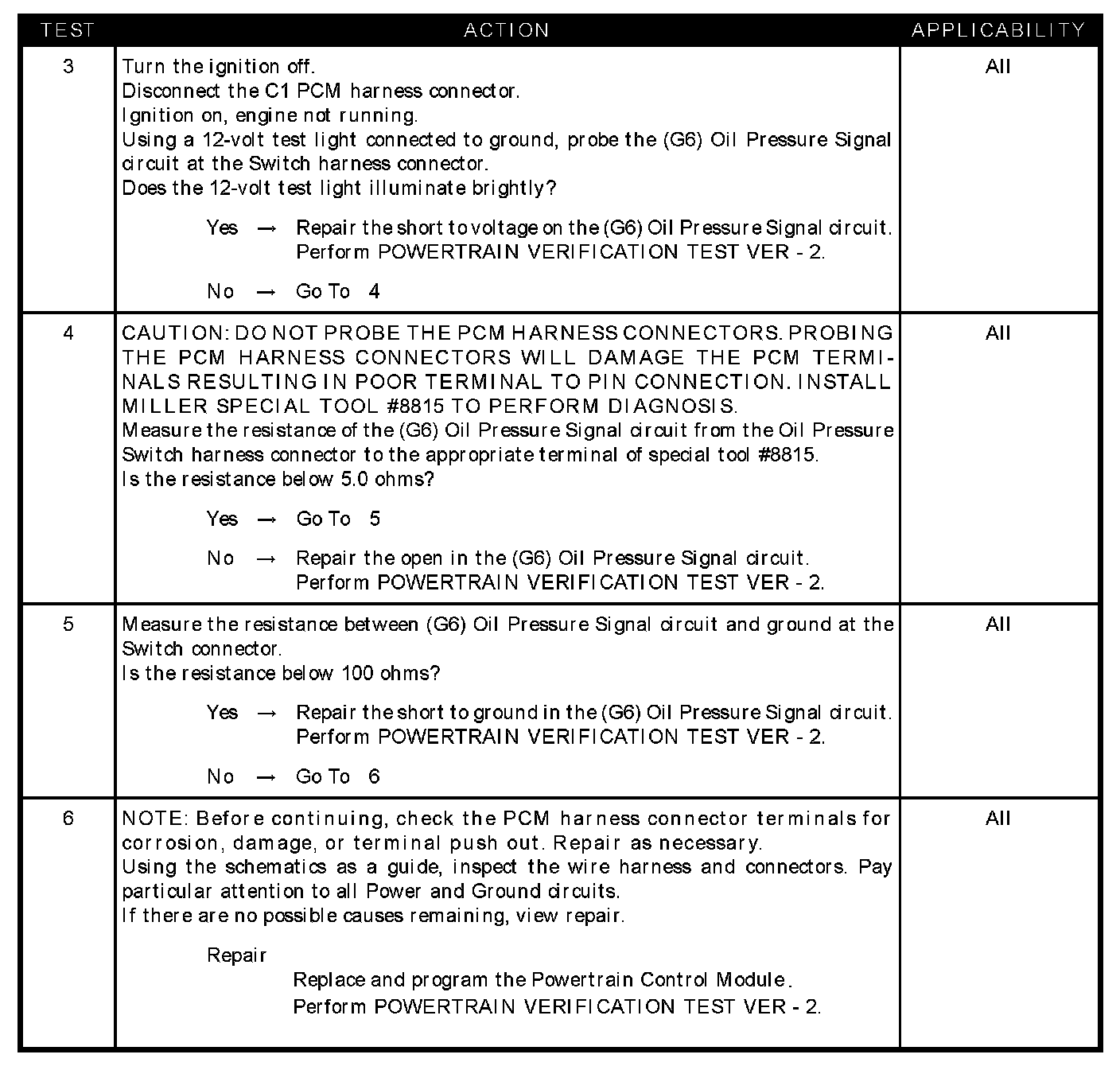

Test 3 - Test 6:

SYMPTOM
P0522-OIL PRESSURE VOLTAGE LOW

WHEN MONITORED
With the ignition on and battery voltage above 10.4 volts.

SET CONDITION
The switch reads closed at voltage below 0.942 of a volt. The NGC must see a change in switch state at engine start. One trip fault.

POSSIBLE CAUSES
- Good trip equal to zero
- Oil pressure switch
- (G6) Oil pressure signal circuit open
- (G6) Oil pressure signal circuit shorted to voltage
- (G6) Oil pressure signal circuit shorted to ground
- PCM
