P0517

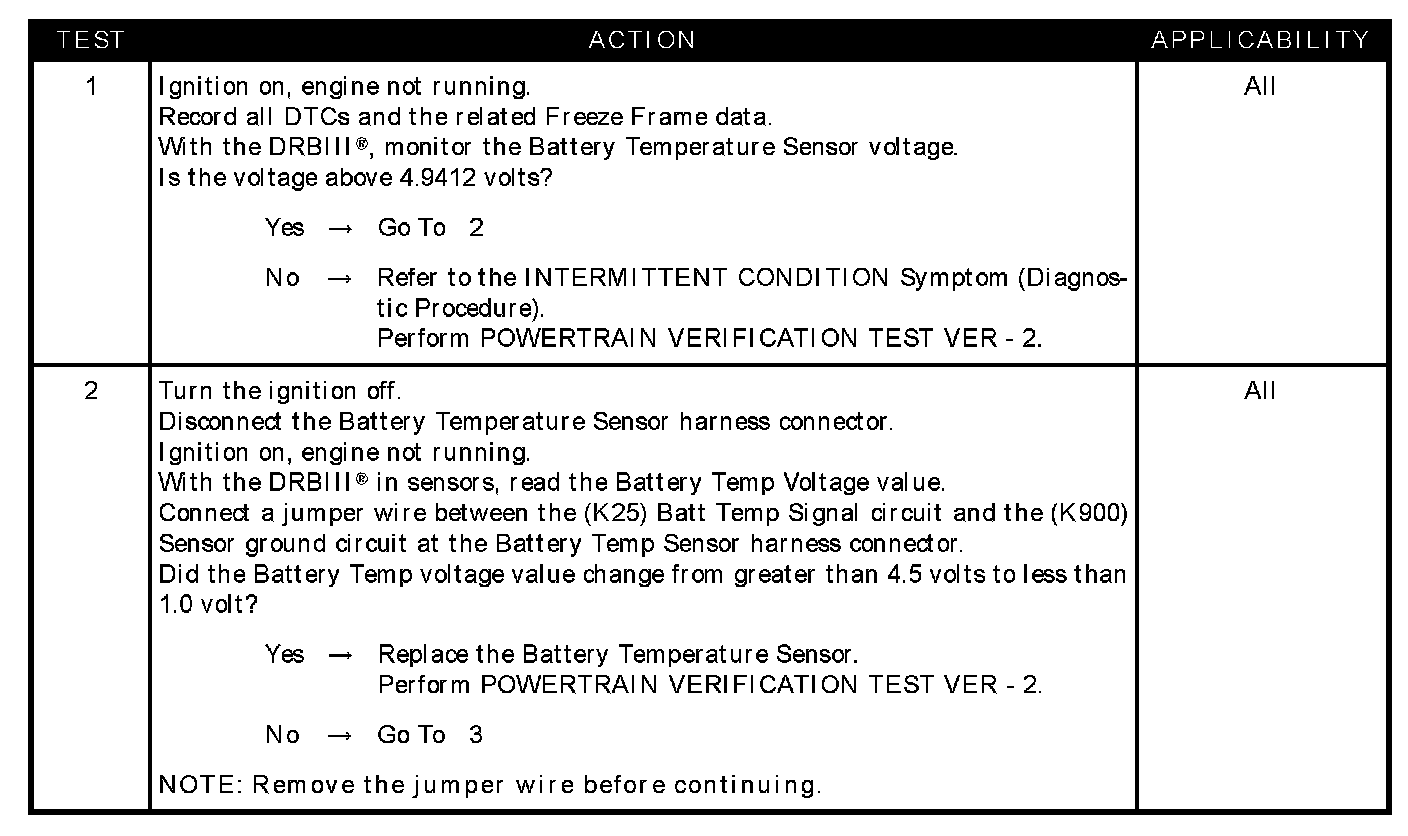

Test 1 - Test 2:

Test 3 - Test 6:

SYMPTOM
P0517-BATTERY TEMPERATURE SENSOR HIGH

WHEN MONITORED
Ignition on.

SET CONDITION
Battery temperature voltage goes above 4.9412 volts for more than 4.8 seconds. Three good trips to clear the MIL.

POSSIBLE CAUSES
- Battery temp sensor voltage above 4.9412 volts
- Battery temperature sensor
- (K118) BATT temp signal circuit shorted to battery voltage
- (K25) BATT temp signal circuit open
- (K900) Sensor ground circuit open
- PCM
