P0516

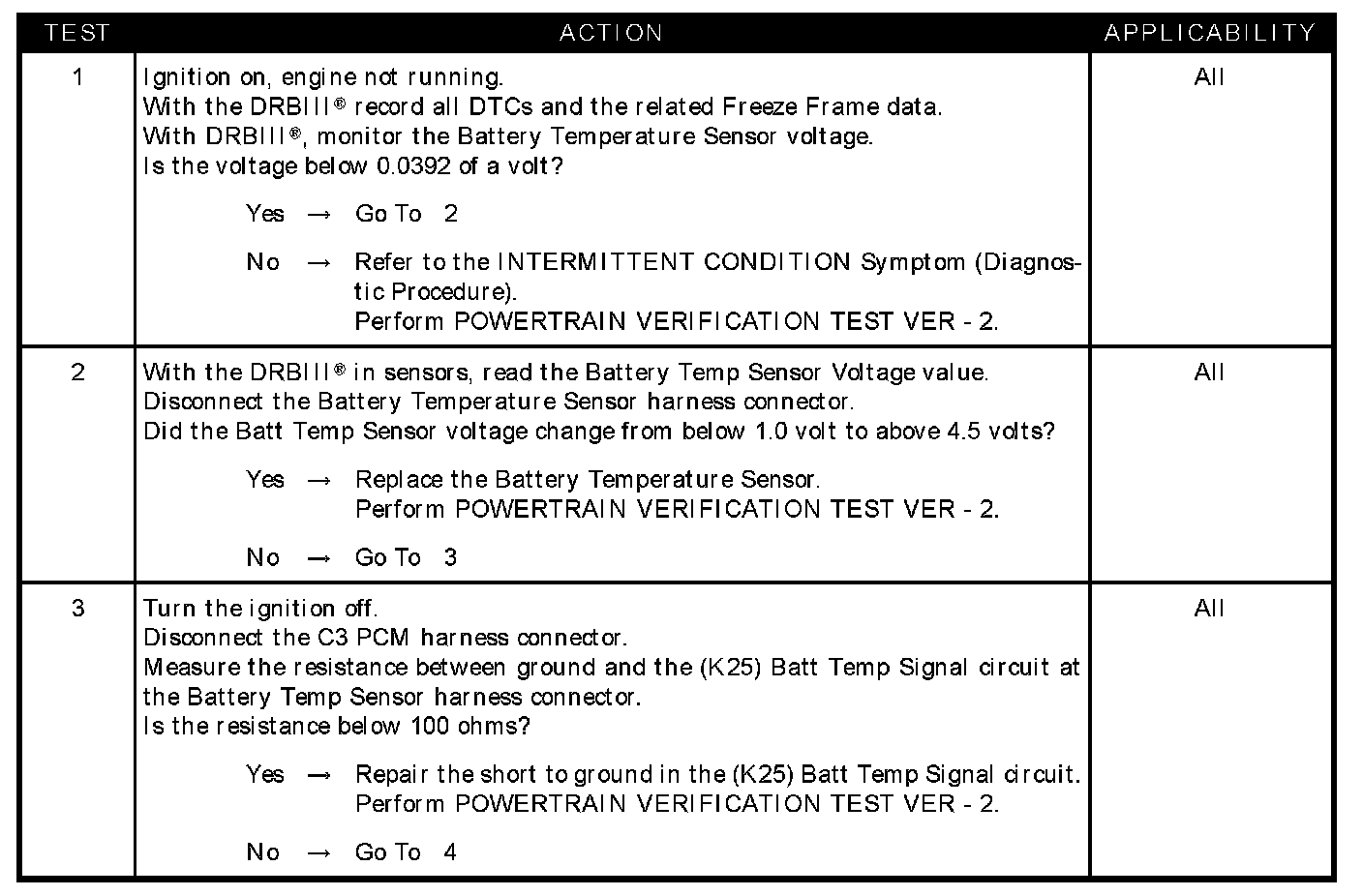

Test 1 - Test 3:

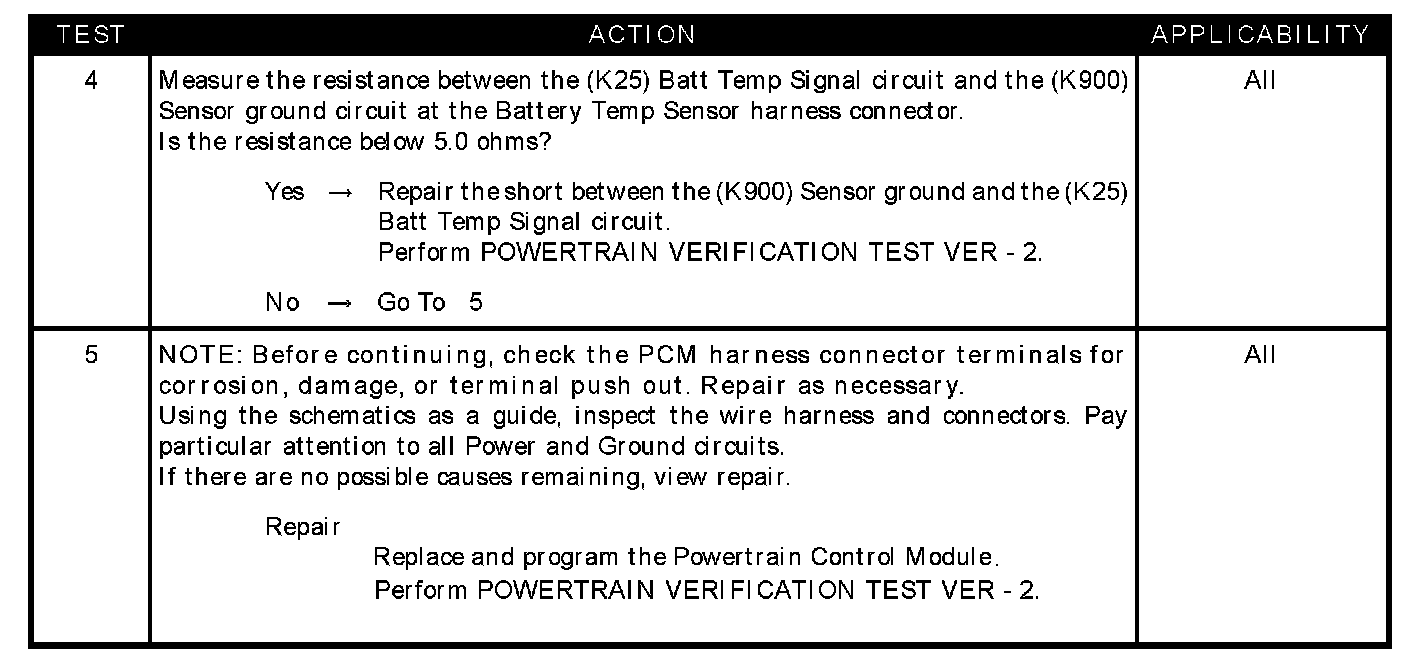

Test 4 - Test 5:

SYMPTOM
P0516-BATTERY TEMPERATURE SENSOR LOW

WHEN MONITORED
Ignition on.

SET CONDITION
Battery temperature sensor voltage below 0.0392 of a volt for 4.8 seconds. Three good trips to clear the MIL.

POSSIBLE CAUSES
- Battery temp volts below 0.0392 of a volt
- Battery temperature sensor
- (K25) BATT temp signal circuit shorted to ground
- (K25) BATT temp signal circuit shorted to the (K900) sensor ground circuit
- PCM
