P0335

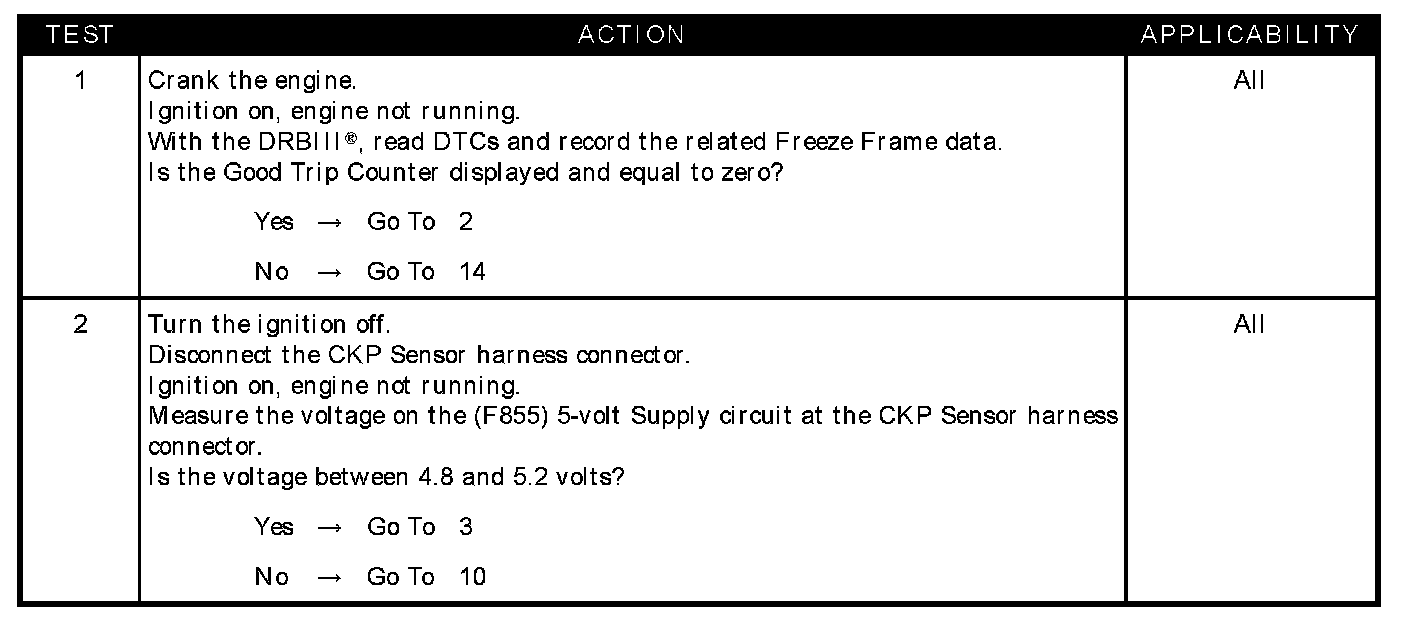

Test 1 - Test 2:

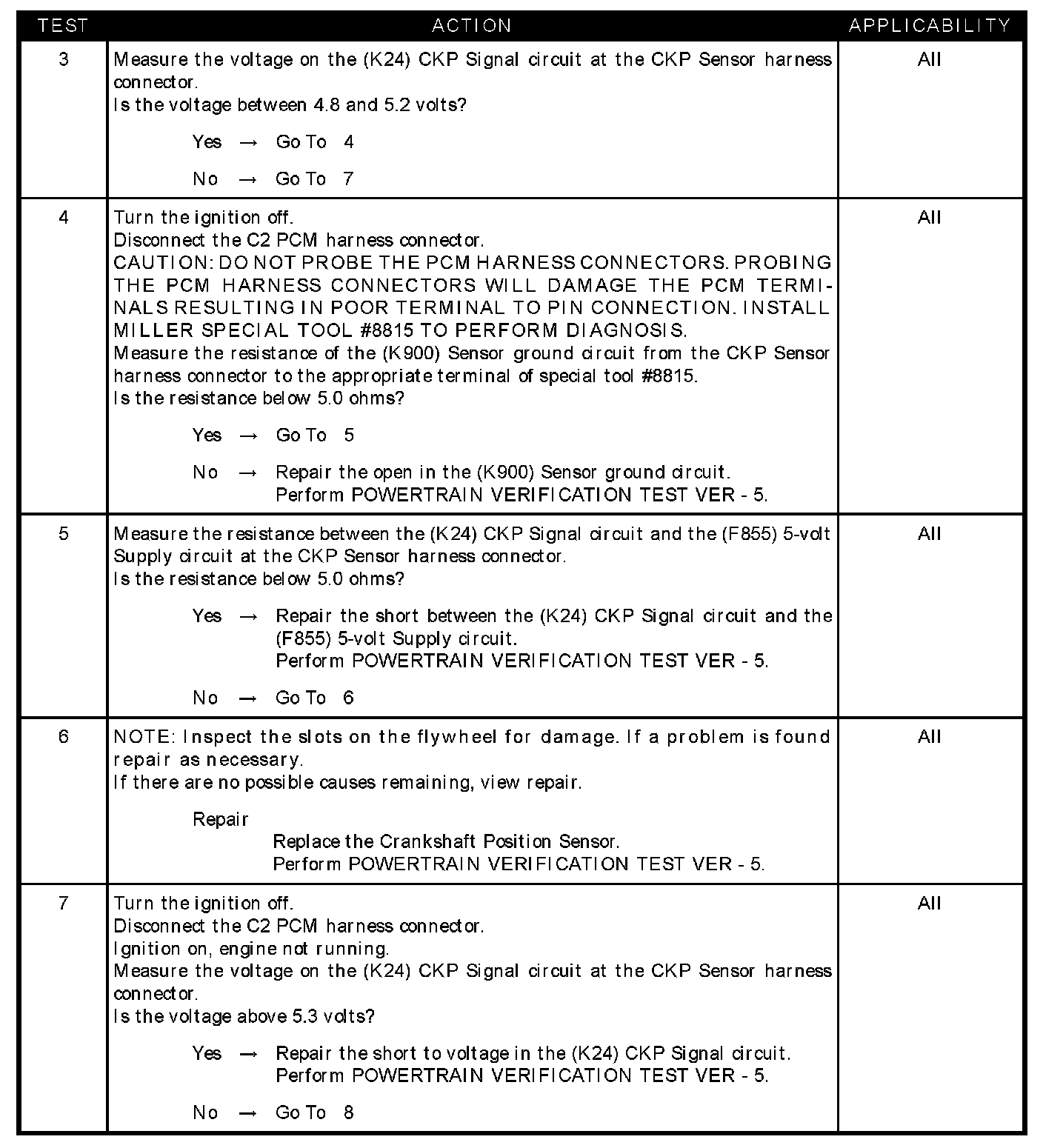

Test 3 - Test 7:

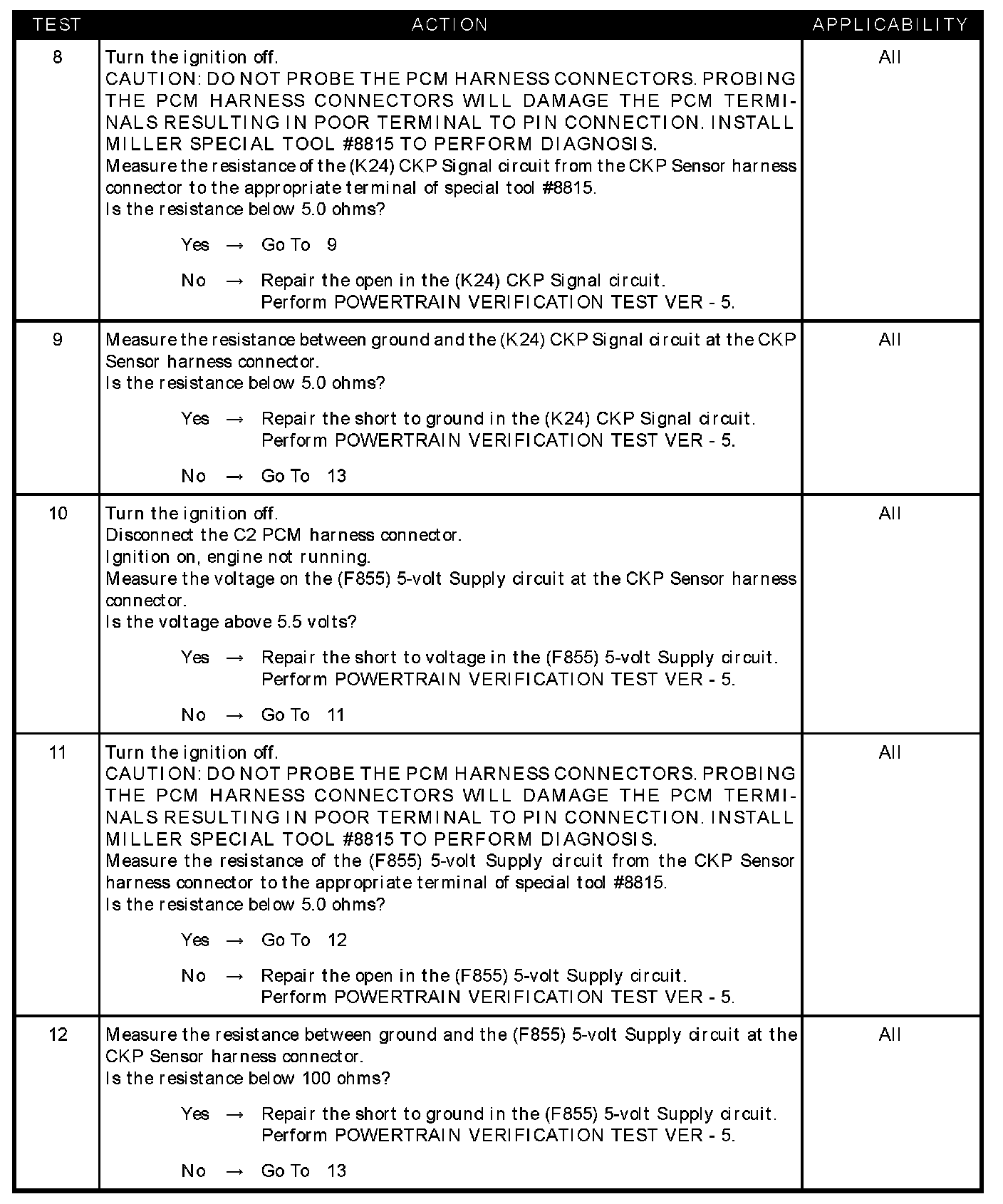

Test 8 - Test 12:

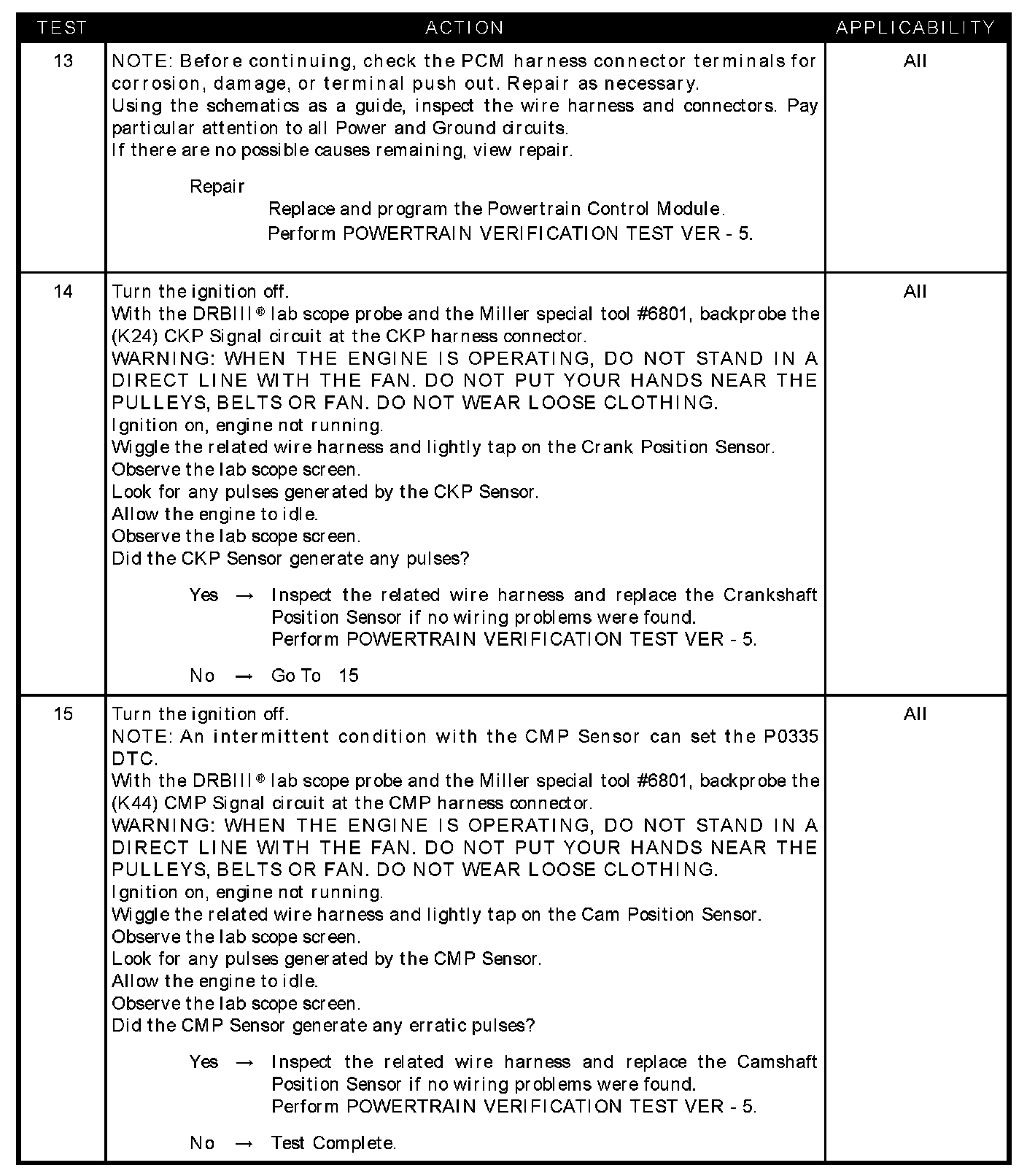

Test 13 - Test 15:

SYMPTOM
P0335-CRANKSHAFT POSITION SENSOR CIRCUIT

WHEN MONITORED
Engine cranking.

SET CONDITION
No CKP signal is present during engine cranking, and at least 8 camshaft position sensor signals have occurred.

POSSIBLE CAUSES
- Intermittent CKP signal
- Intermittent CMP signal
- (F855) 5-volt supply circuit shorted to voltage
- (F855) 5-volt supply circuit open
- (F855) 5-volt supply circuit shorted to ground
- (K24) CKP signal circuit open
- (K24) CKP signal circuit shorted to voltage
- (K24) CKP signal circuit shorted ground
- (K24) CKP signal circuit shorted to (F855) 5-volt supply circuit
- (K900) Sensor ground circuit open
- Crankshaft position sensor
- PCM
