P0174

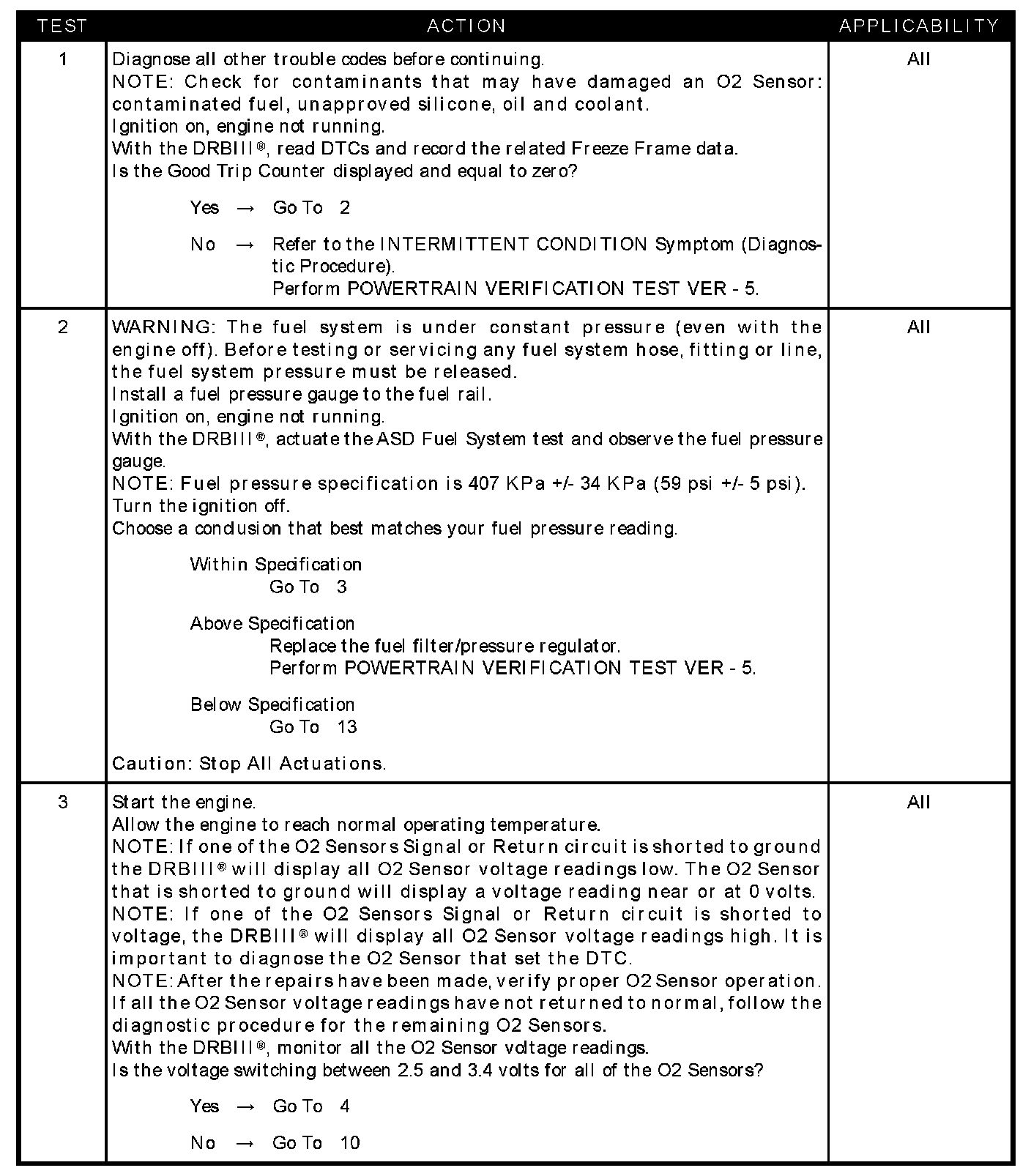

Test 1 - Test 3:

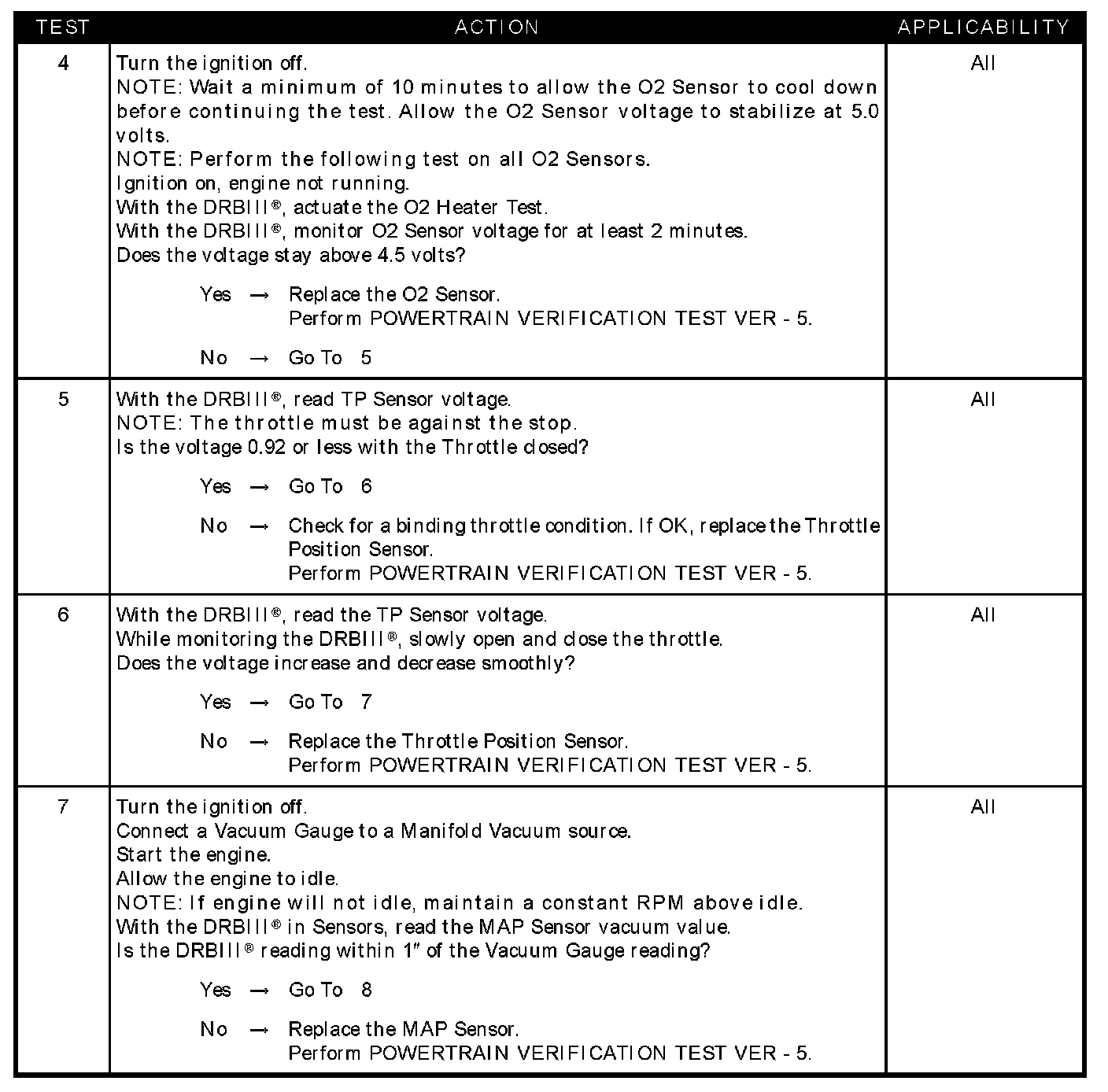

Test 4 - Test 7:

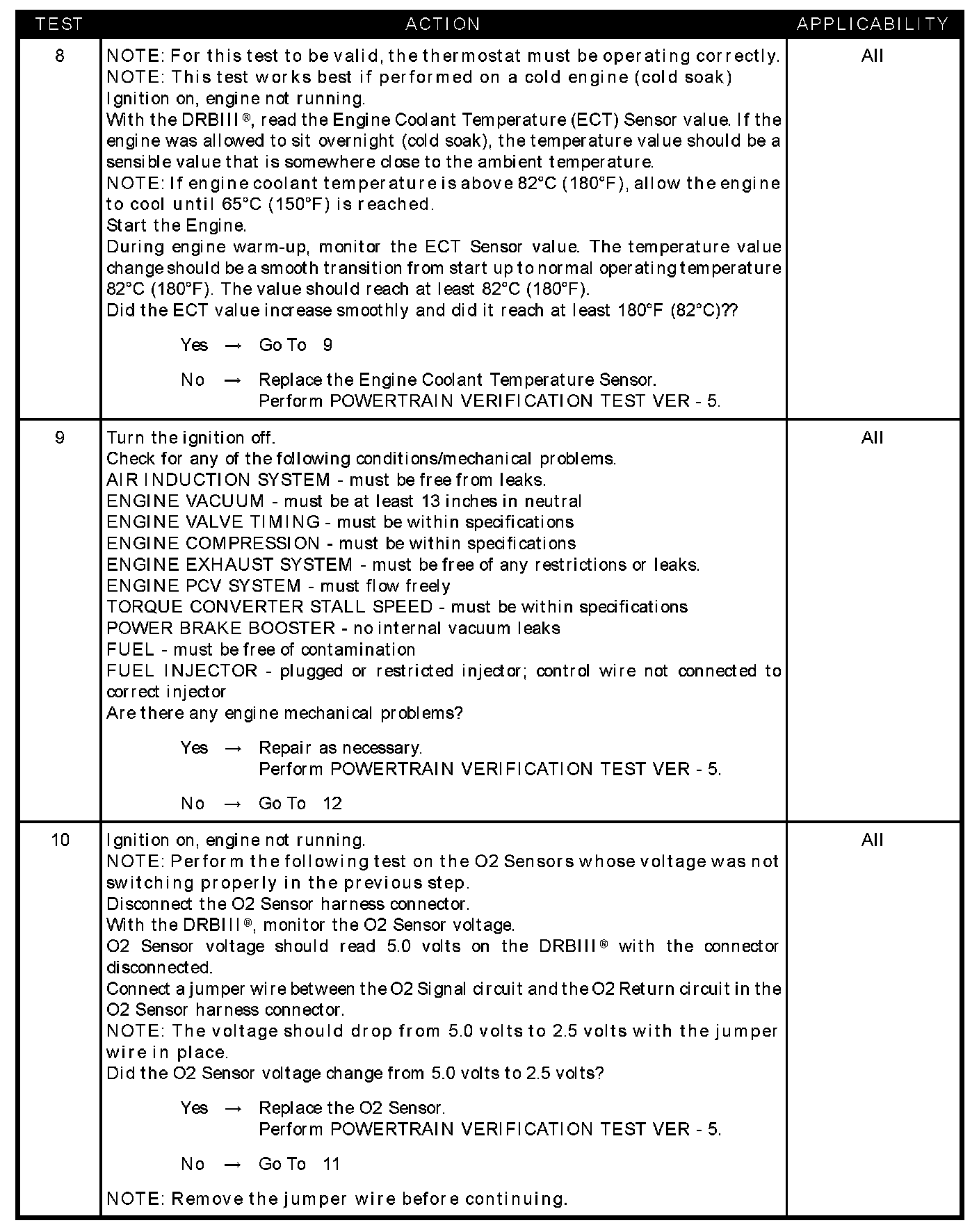

Test 8 - Test 10:

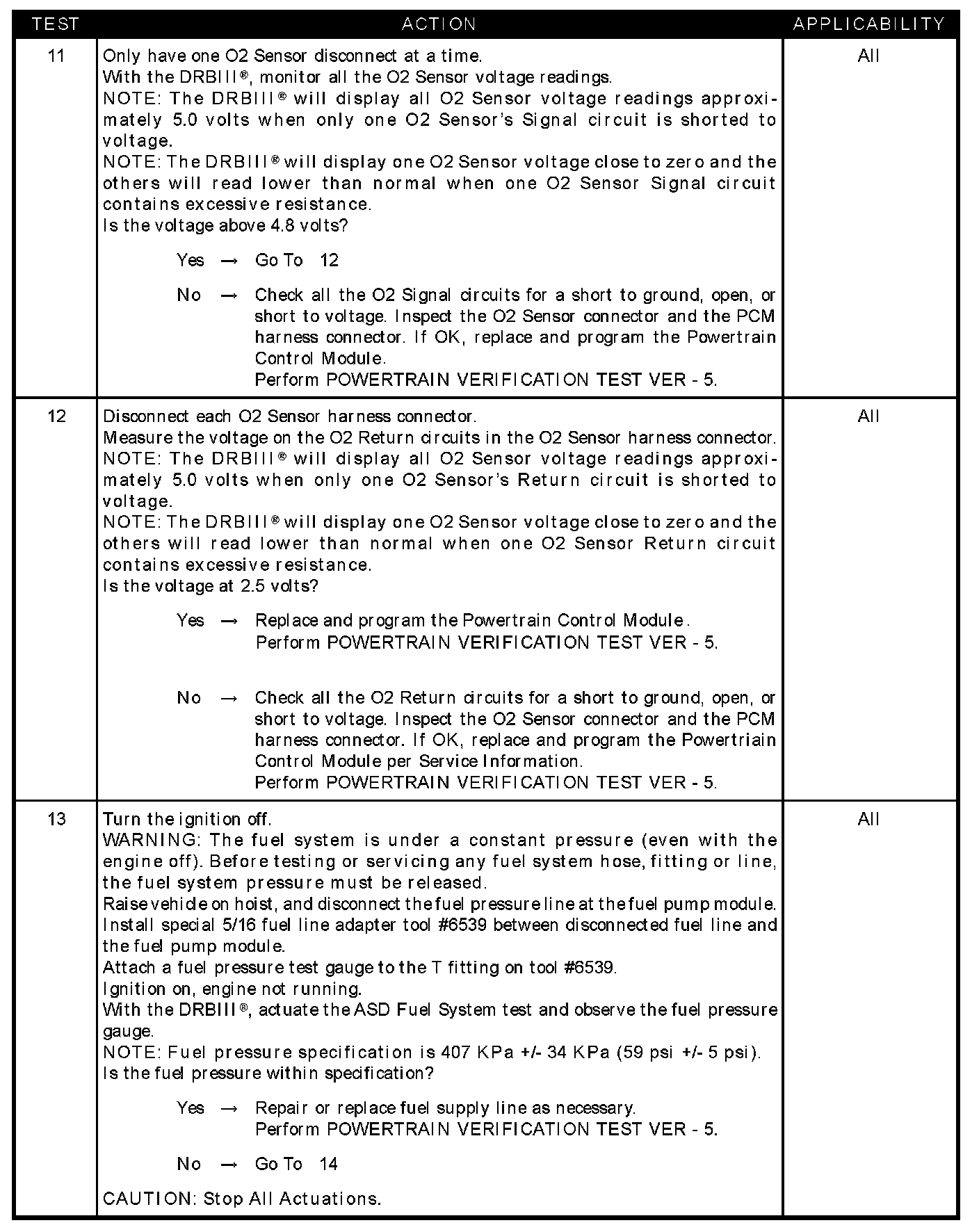

Test 11 - Test 13:

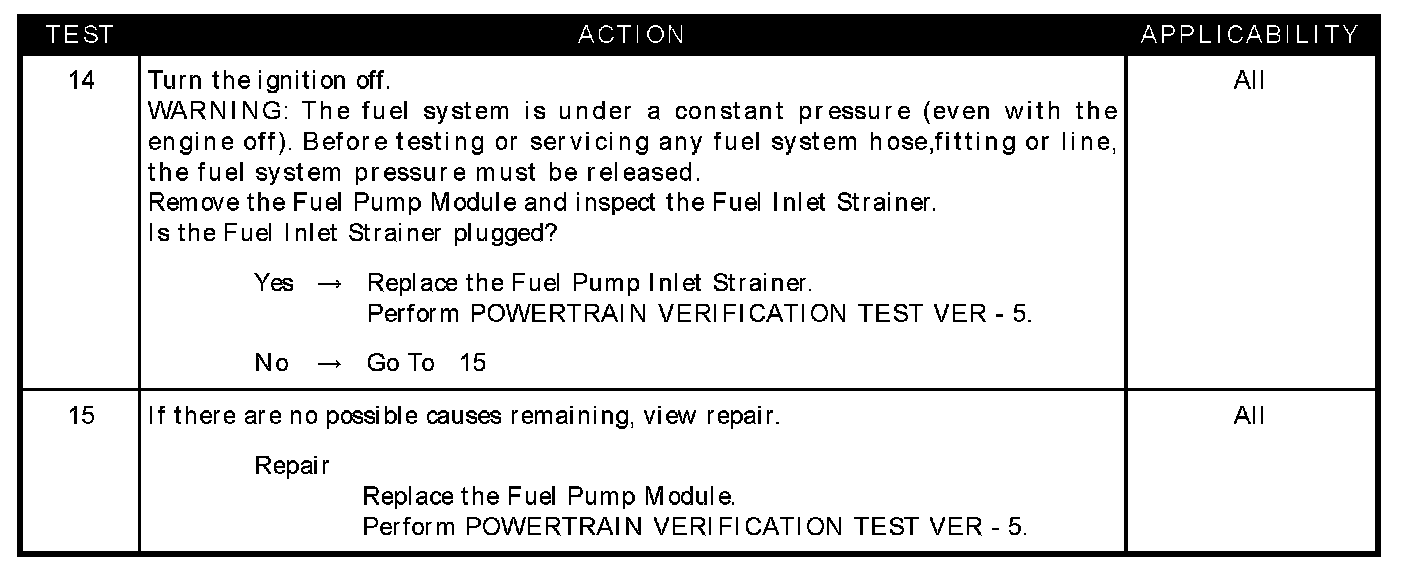

Test 14 - Test 15:

SYMPTOM
P0174-FUEL SYSTEM 2/1 LEAN

TEST NOTE
This symptom is diagnosed using the test P0171-FUEL SYSTEM 1/1 LEAN.

WHEN MONITORED
With the engine running in closed loop mode, the ambient/battery temperature above 20 deg. F and altitude below 8500 ft.

SET CONDITION
If the PCM multiplies short term compensation by long term adaptive and a certain percentage is exceeded for two trips, a freeze frame is stored, the MIL illuminates and a trouble code is stored.

POSSIBLE CAUSES
- Good trip equal to zero
- Restricted fuel supply line
- Fuel pump inlet strainer plugged
- Fuel pump module
- O2 sensor
- O2 signal circuit
- O2 return circuit
- O2 sensor heater operation
- - Throttle position sensor voltage greater than 0.92 volts with throttle closed
- Throttle position sensor sweep
- MAP sensor
- ECT sensor
- Engine mechanical problem
- Fuel filter/pressure regulator (HIGH)
- PCM
