P0113

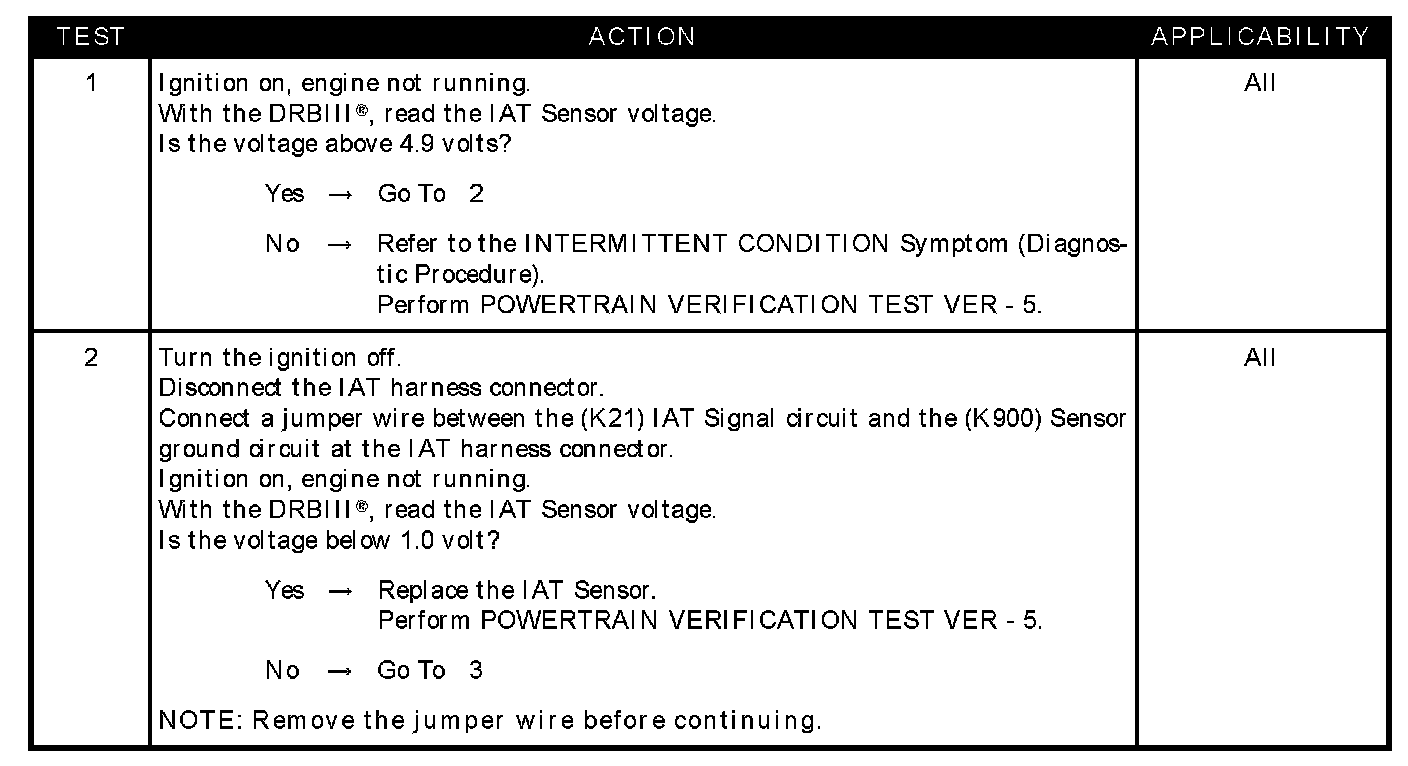

Test 1 - Test 2:

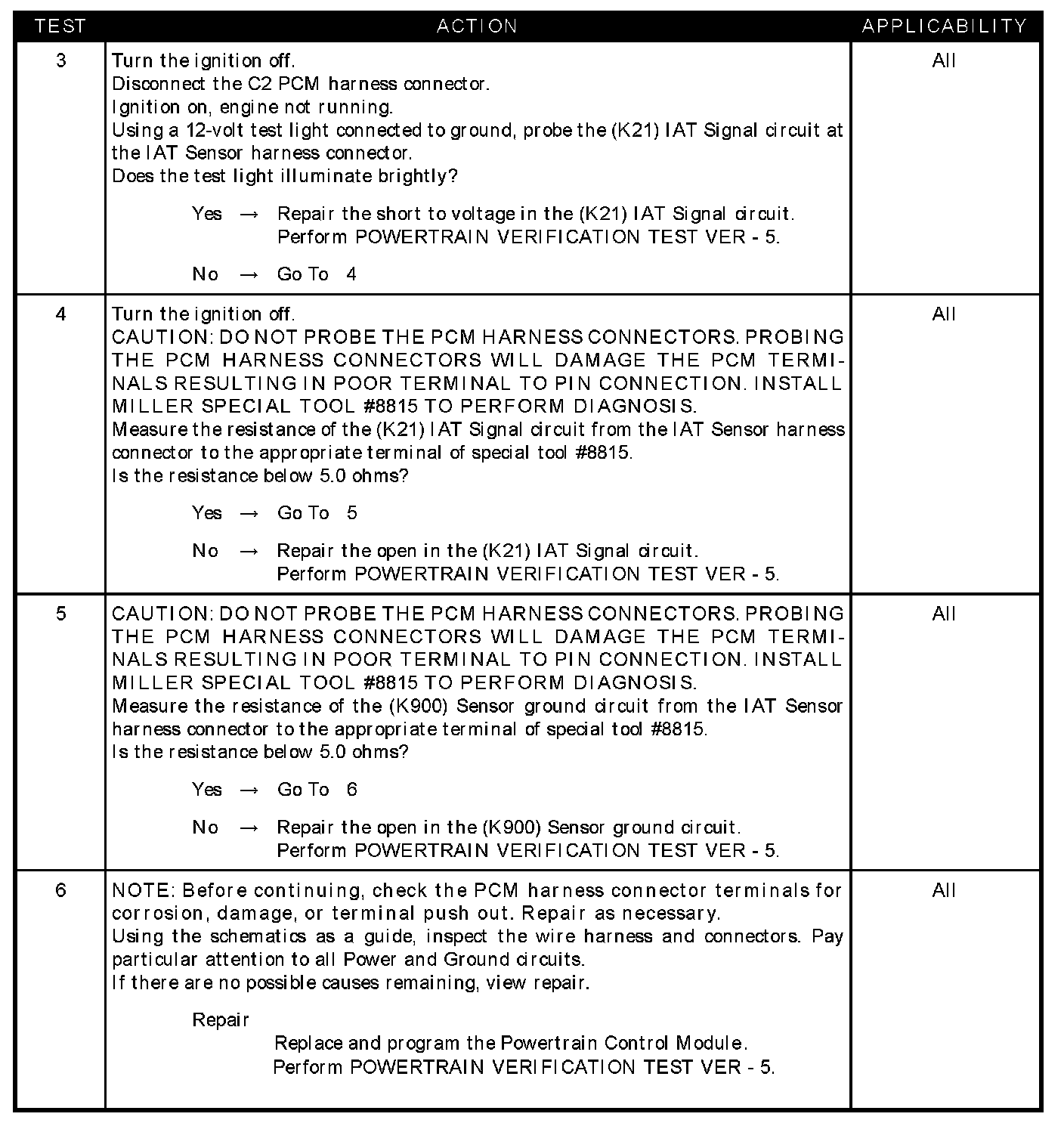

Test 3 - Test 6:

SYMPTOM
P0113-INTAKE AIR TEMPERATURE SENSOR CIRCUIT HIGH

WHEN MONITORED
With the ignition on. Battery voltage greater than 10 volts.

SET CONDITION
The Intake Air Temperature (IAT) sensor circuit voltage at the PCM goes above 4.9 volts. One Trip Failure.

POSSIBLE CAUSES
- IAT sensor voltage above 4.9 volts
- IAT sensor
- (K21) IAT signal circuit shorted to battery voltage
- (K21) IAT signal circuit open
- (K900) Sensor ground circuit open
- PCM
