P0107

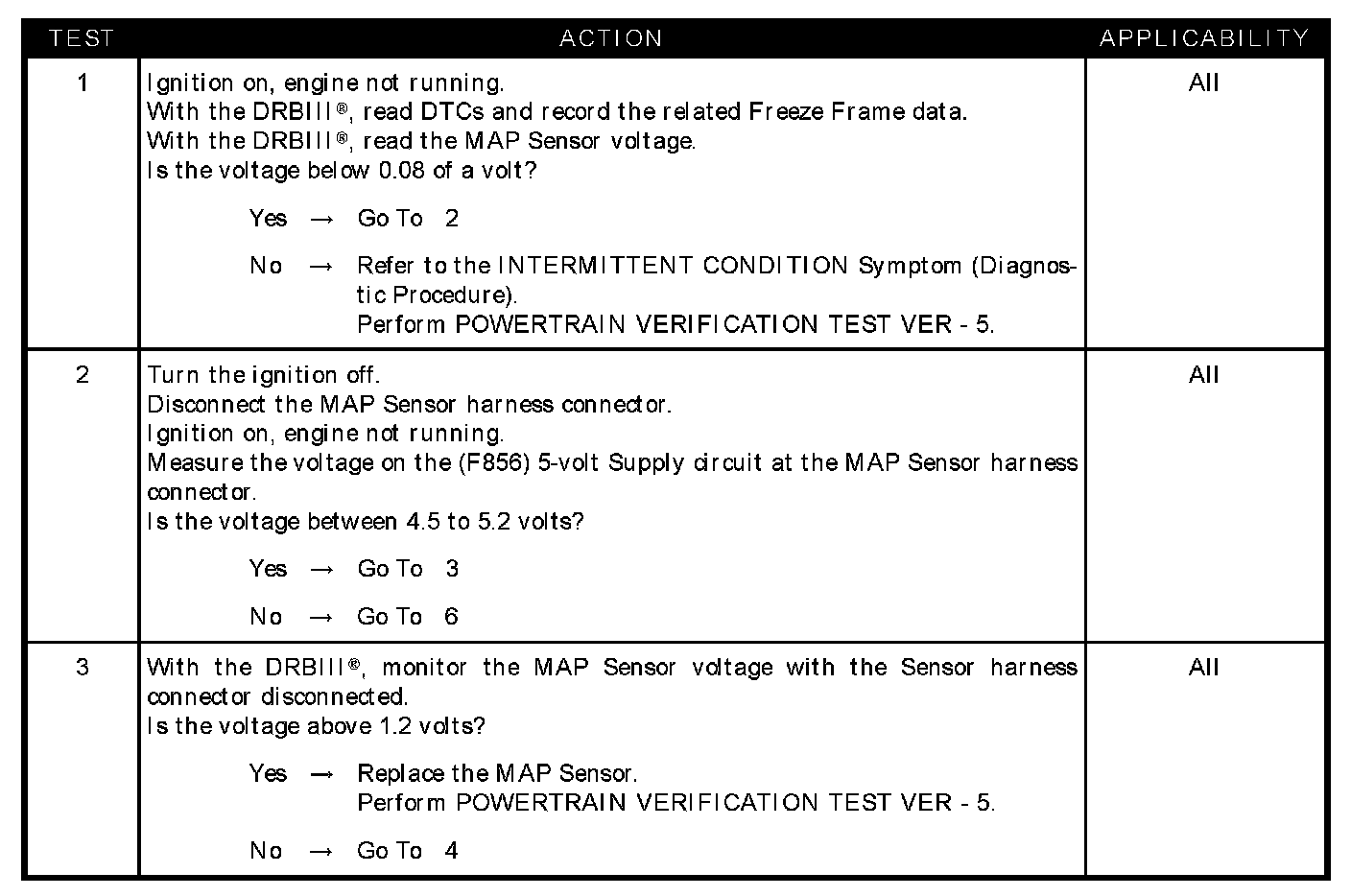

Test 1 - Test 3:

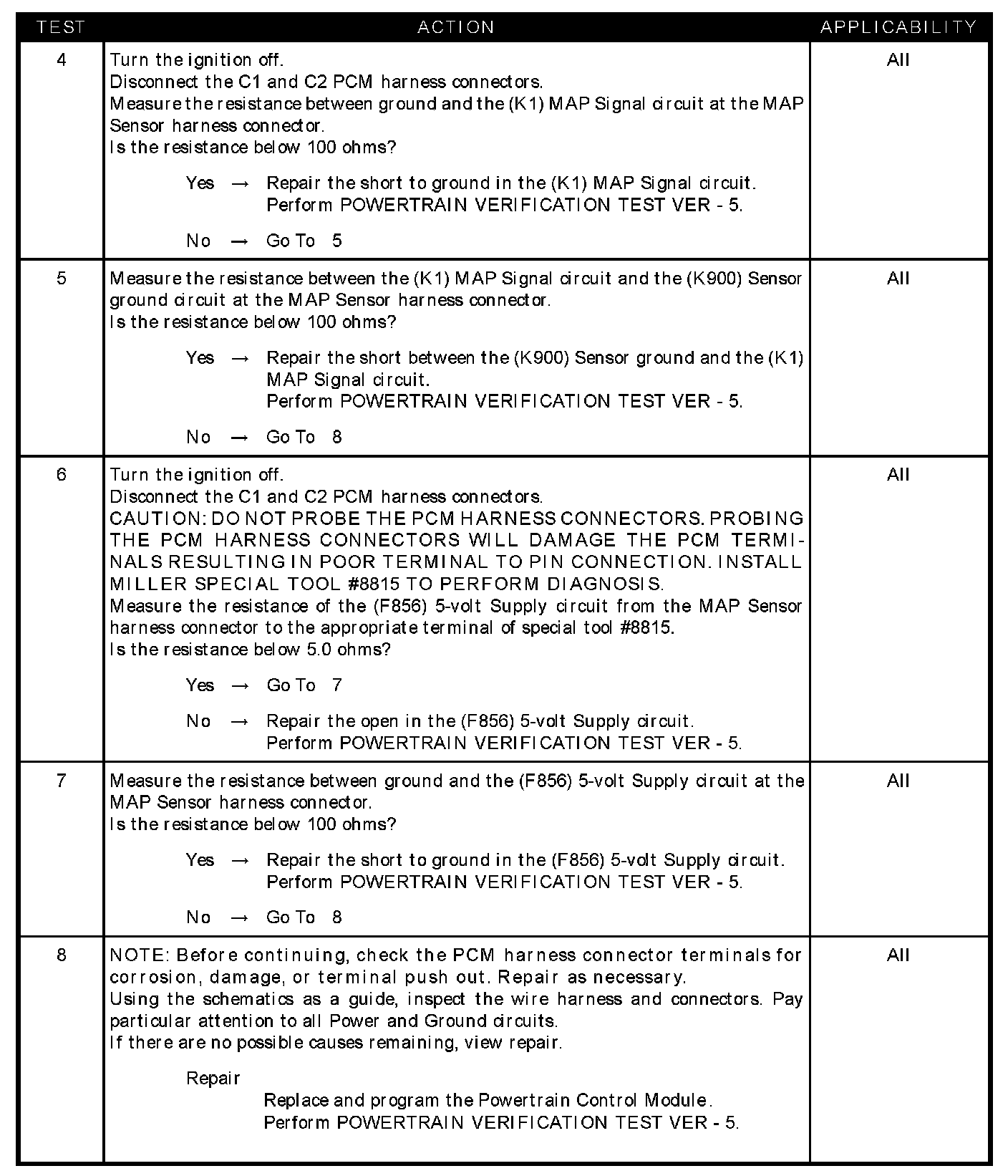

Test 4 - Test 8:

SYMPTOM
P0107-MAP SENSOR CIRCUIT LOW

WHEN MONITORED
Engine speed greater than 250 RPM. Battery voltage greater than 10.3 volts.

SET CONDITION
The MAP sensor signal voltage is below 0.08 of a volt for 1.7 seconds. One Trip Fault.

POSSIBLE CAUSES
- MAP sensor voltage below 0.08 of a volt
- (F856) 5-volt supply circuit open
- (F856) 5-volt supply circuit shorted to ground
- MAP sensor
- (K1) MAP signal circuit shorted to ground
- (K1) MAP signal circuit shorted to the (K900) sensor ground circuit
- PCM
