P0016

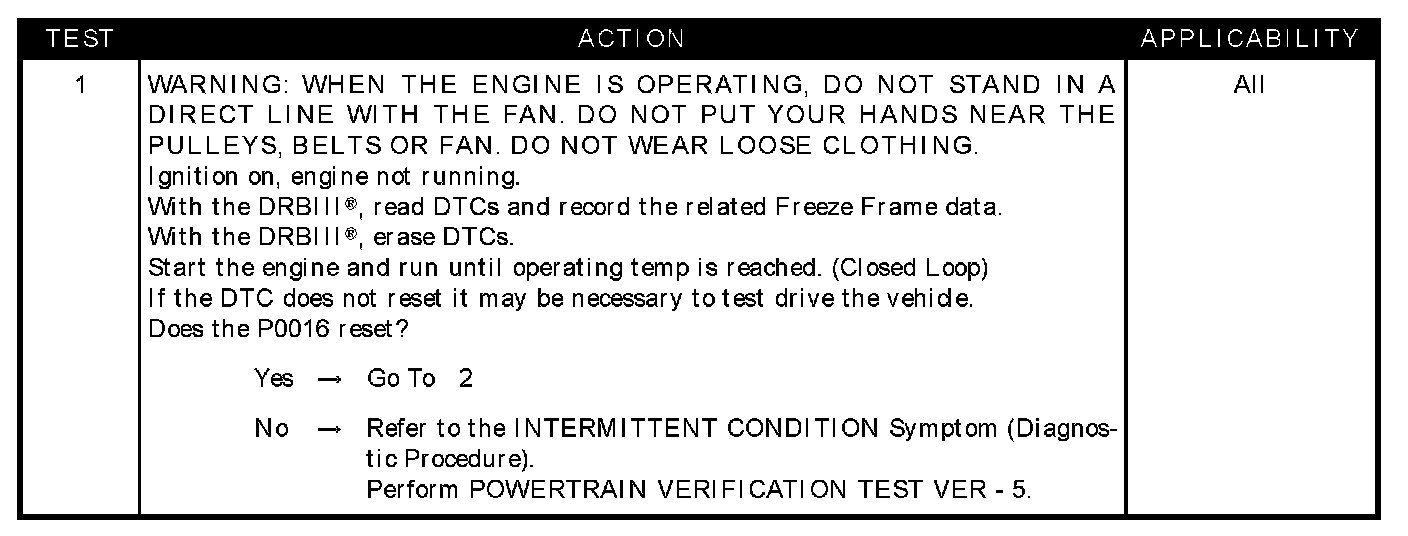

Test 1:

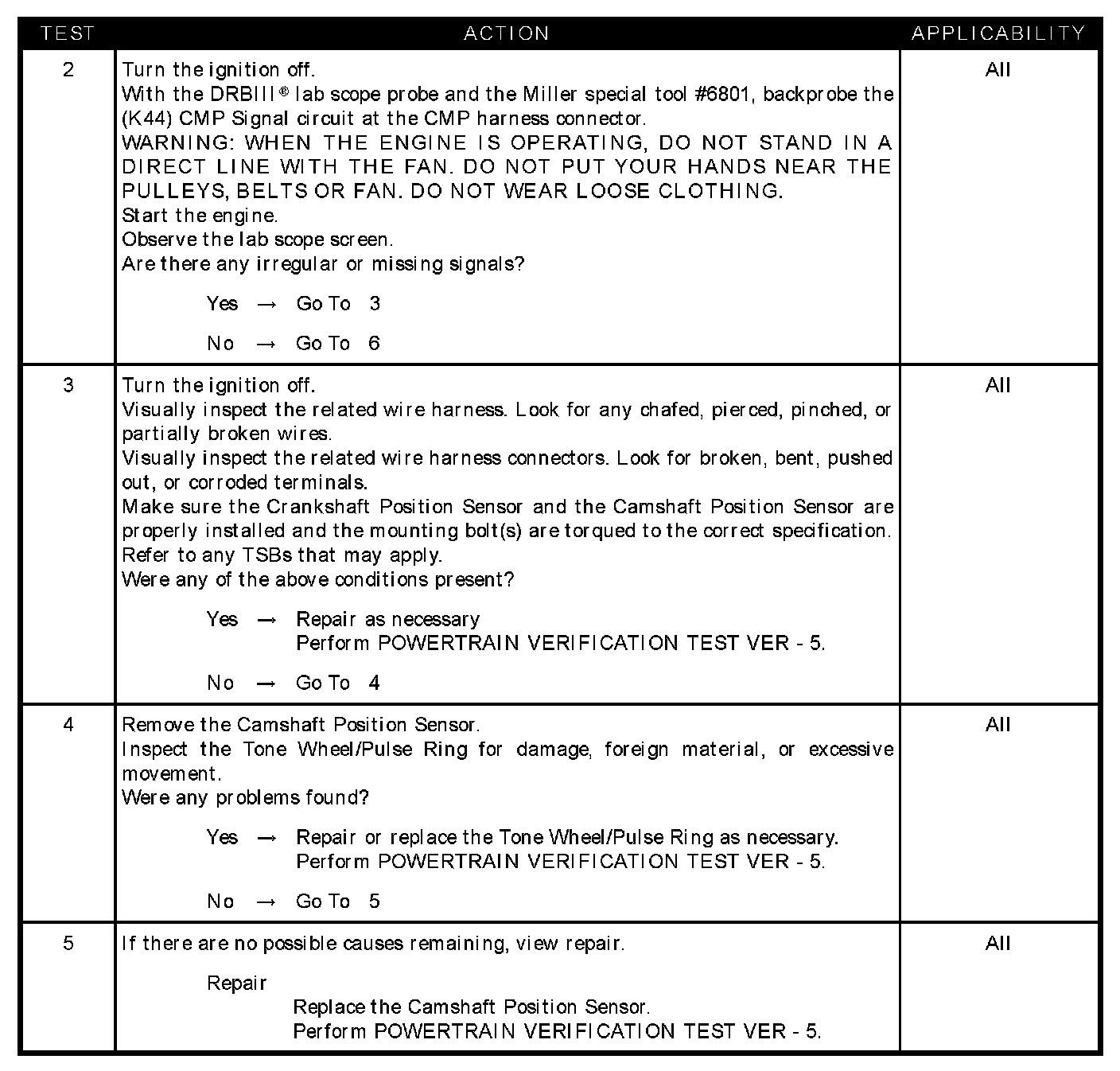

Test 2 - Test 5:

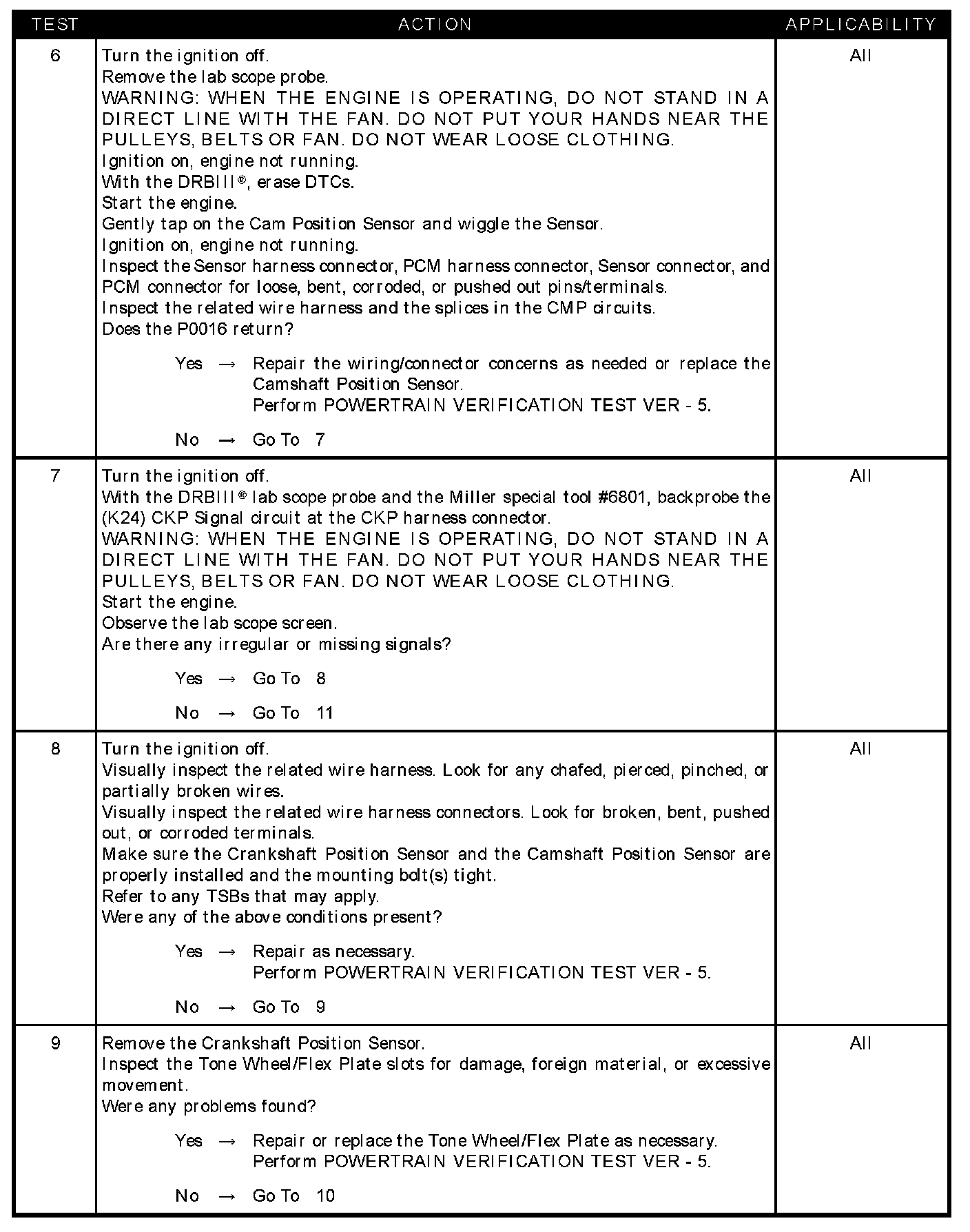

Test 6 - Test 9:

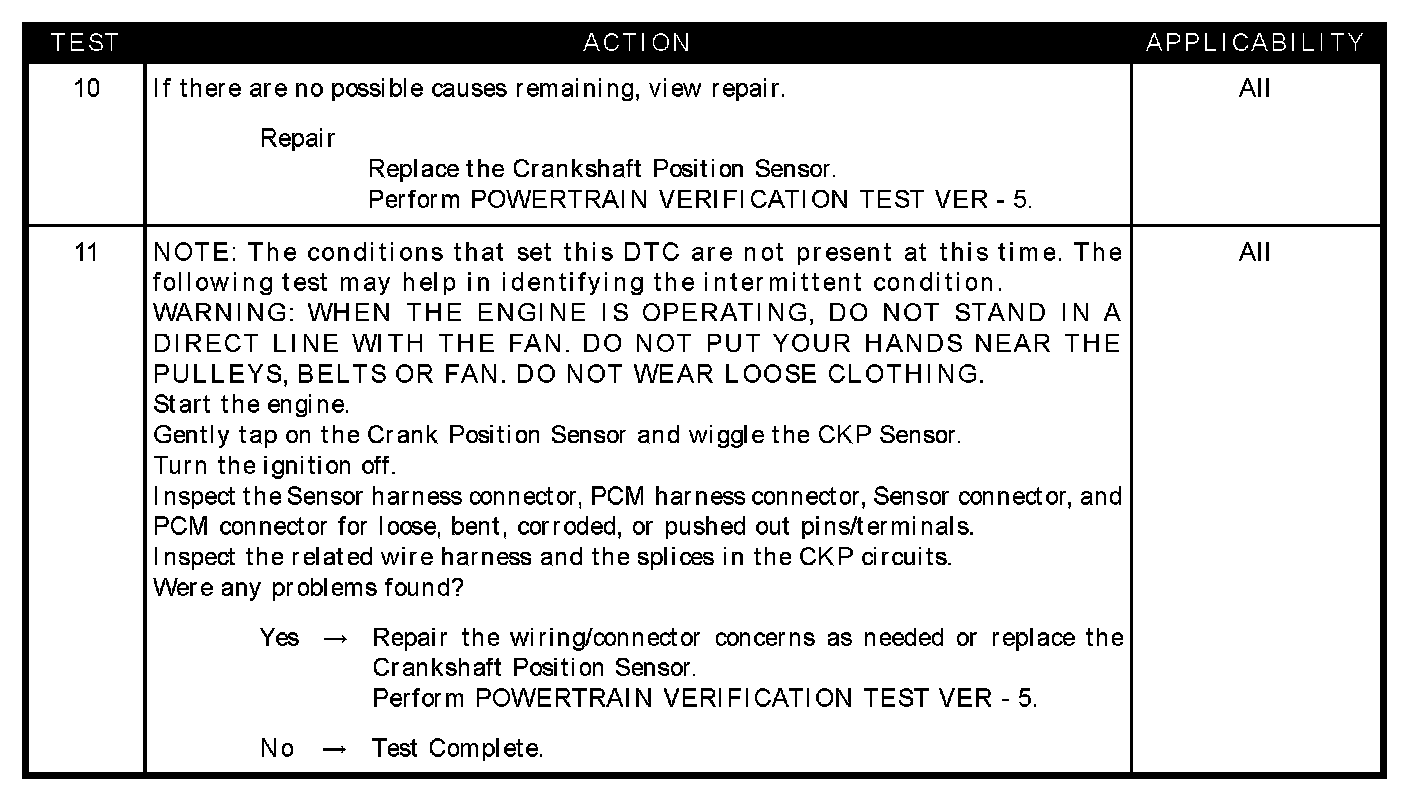

Test 10 - Test 11:

SYMPTOM
P0016-CRANKSHAFT/CAMSHAFT TIMING MISALIGNMENT

WHEN MONITORED
Engine cranking and Engine running

SET CONDITION
Powertrain Control Module detects an error when the camshaft position is out of phase with the crankshaft position.

POSSIBLE CAUSES
- Intermittent condition
- CMP wire harness inspection
- Tone wheel/pulse ring inspection
- Intermittent CMP signal
- CKP wire harness inspection
- Tone wheel/pulse ring inspection
- Intermittent CKP signal
- Camshaft position sensor
- Crankshaft position sensor
