Passenger Off Indicator Circuit Shorted to Ground

Test 1 - Test 2:

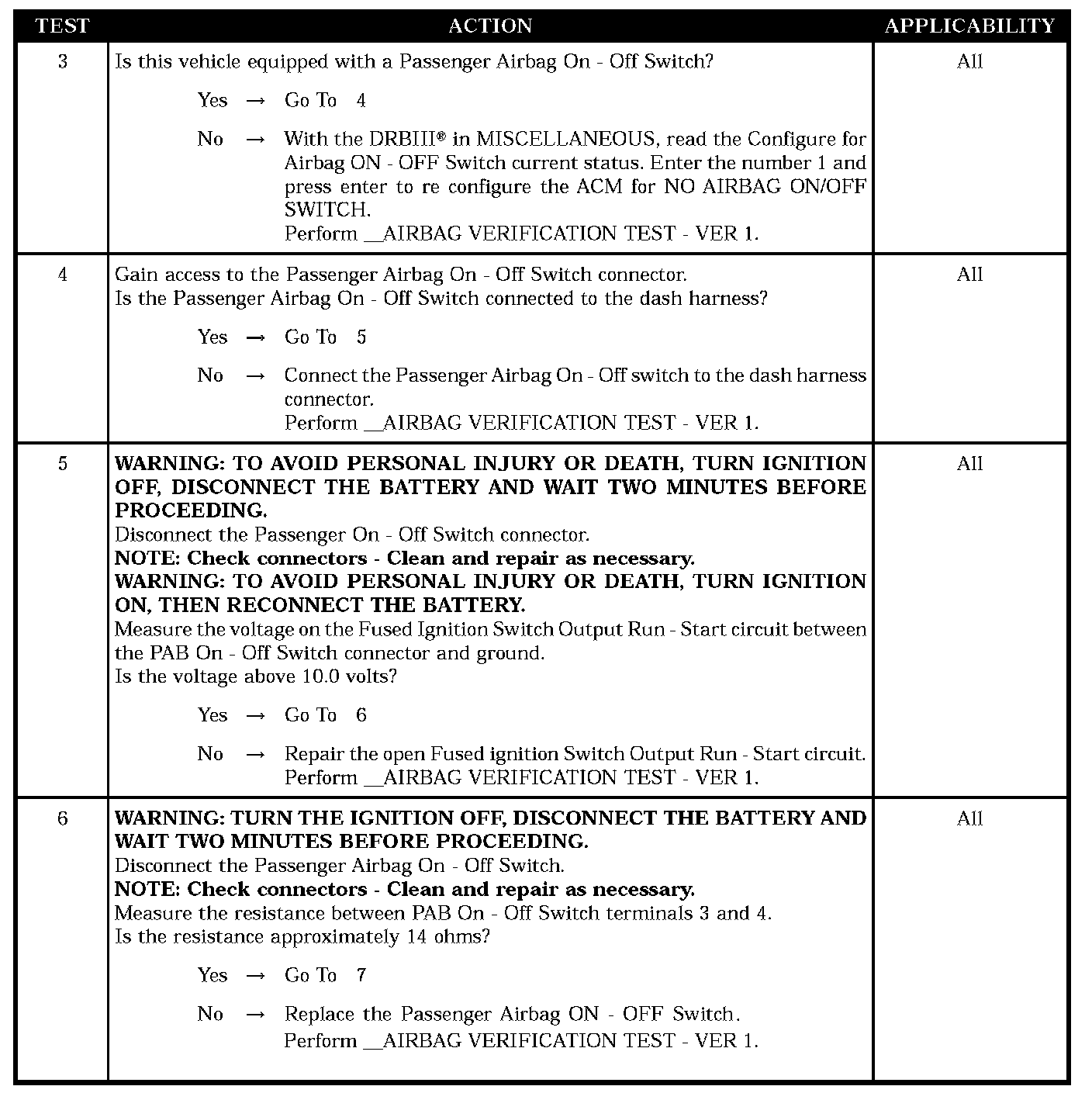

Test 3 - Test 6:

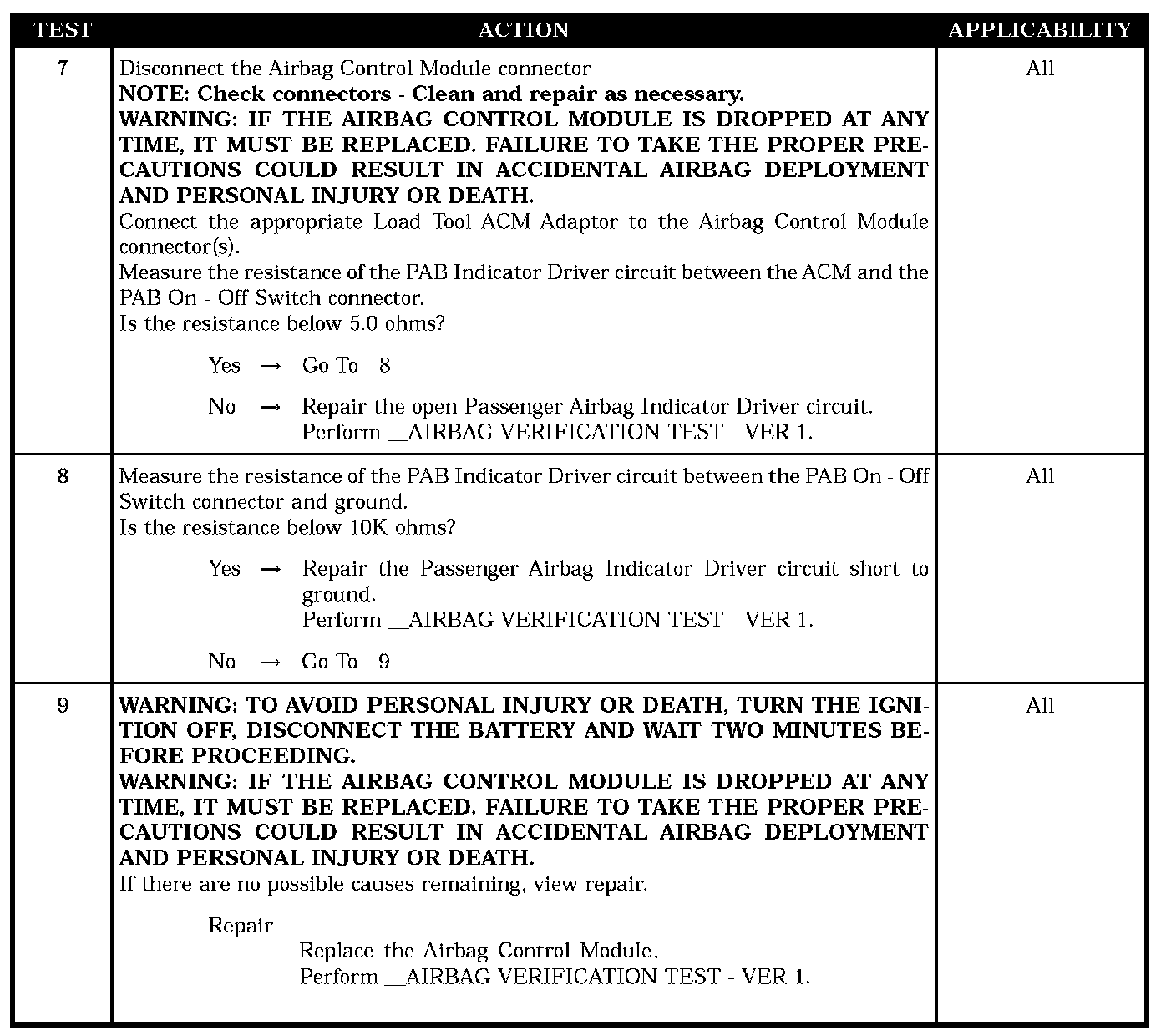

Test 7 - Test 9:

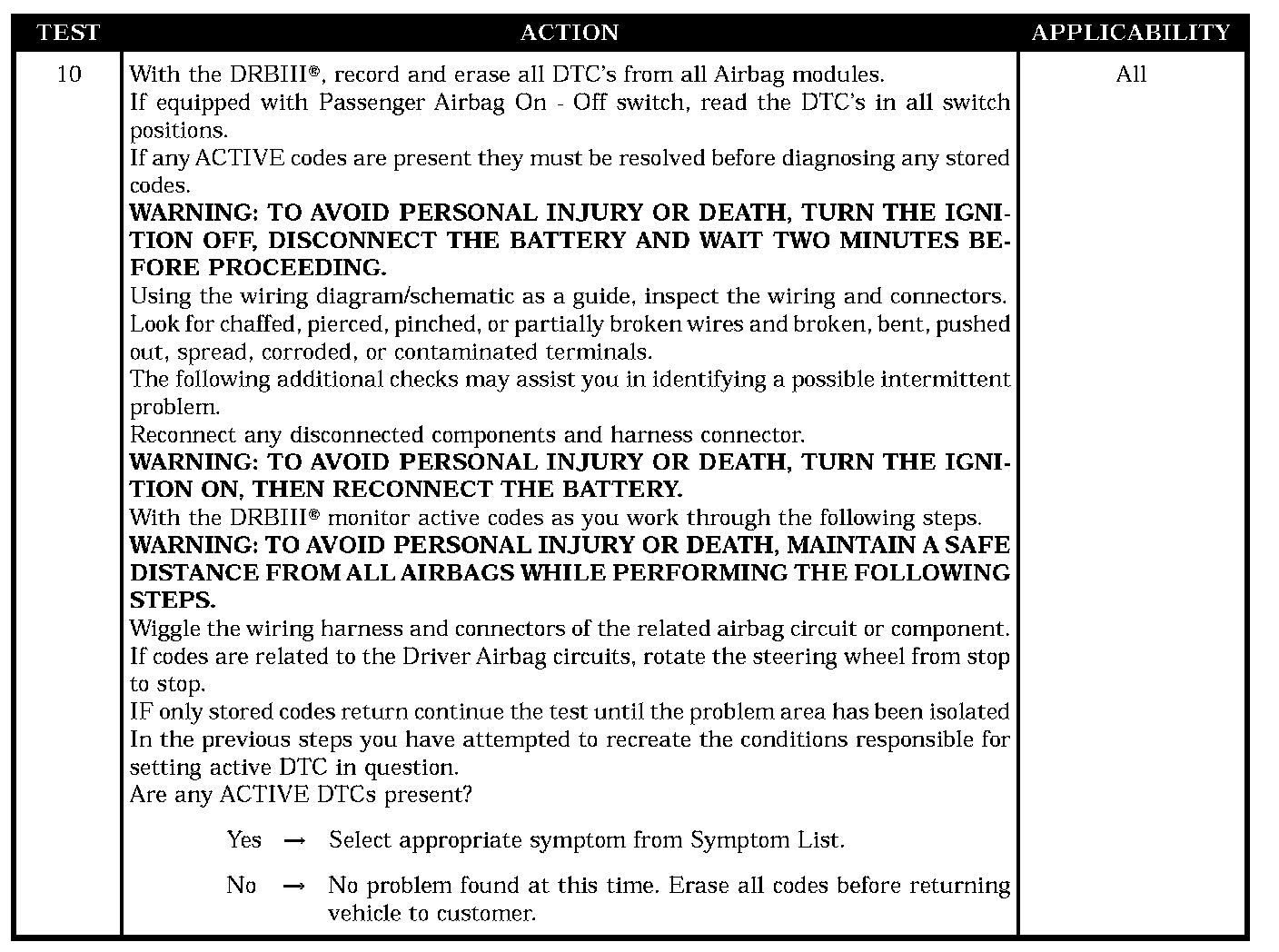

Test 10:

SYMPTOM
PASSENGER OFF INDICATOR CIRCUIT SHORT TO GROUND

WHEN MONITORED
With the ignition on, the ACM monitors the PAB Indicator Driver circuit for voltage from the PAB On - Off Switch indicator circuit.

SET CONDITION
The code will set if the ACM cannot detect voltage on the PAB Indicator Driver circuit.

POSSIBLE CAUSES
- Active ACM run - start codes
- Checking equipment
- Fused ignition switch output run - start
- Switch disconnected
- PAB on - off indicator open
- Passenger airbag indicator driver circuit open
- Passenger airbag indicator driver circuit short
- ACM, passenger on - off indicator circuit open
- Stored code or intermittent condition
- Active code present
