Passenger Airbag On-Off Switch Open

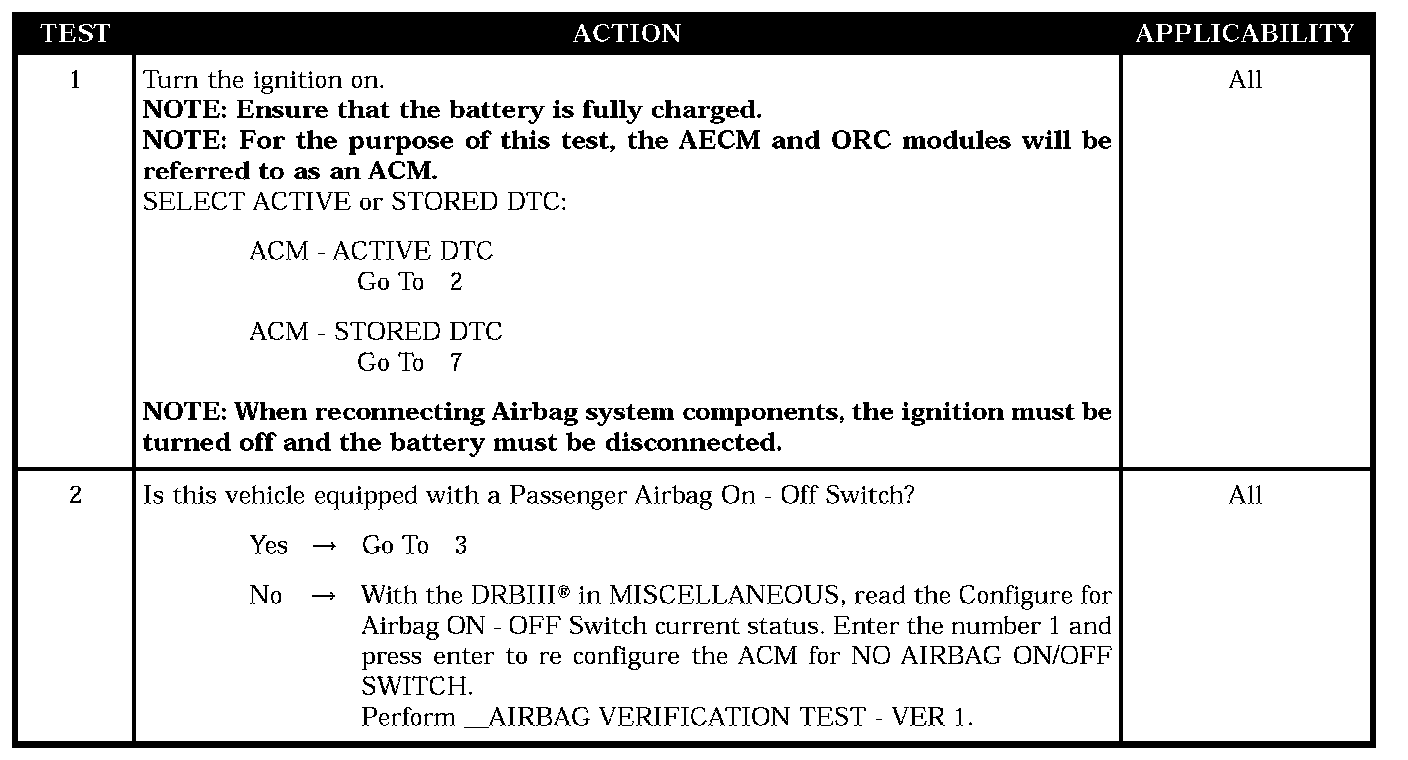

Test 1 - Test 2:

Test 3 - Test 6:

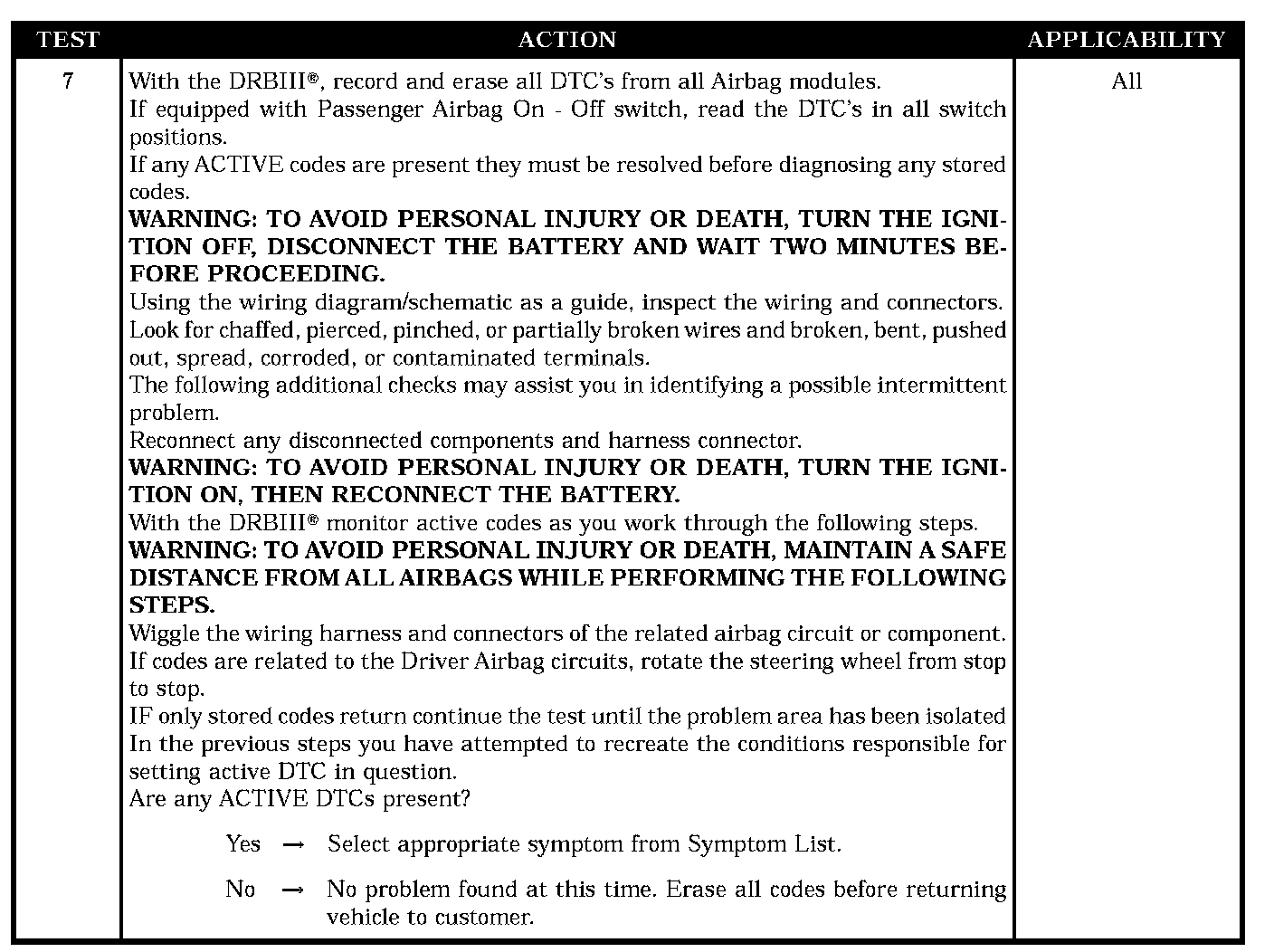

Test 7:

SYMPTOM
PASSENGER AIRBAG ON - OFF SWITCH OPEN

WHEN MONITORED
With the ignition on, the PAB MUX Switch Sense circuit supplies a 3 to 10 ms pulse every 100 ms across the On or Off switch resistor to the MUX Switch Return circuit.

SET CONDITION
The code will set if the ACM senses an open or high resistance on the PAB MUX Switch Sense circuit or PAB MUX Switch Return circuit.

POSSIBLE CAUSES
- Checking equipment
- PAB on - off switch open
- Switch disconnected
- Passenger airbag mux switch circuit open
- ACM, passenger on - off switch circuit open
- Stored code or intermittent condition
- Active code present
