Battery Tray
BATTERY TRAYREMOVAL

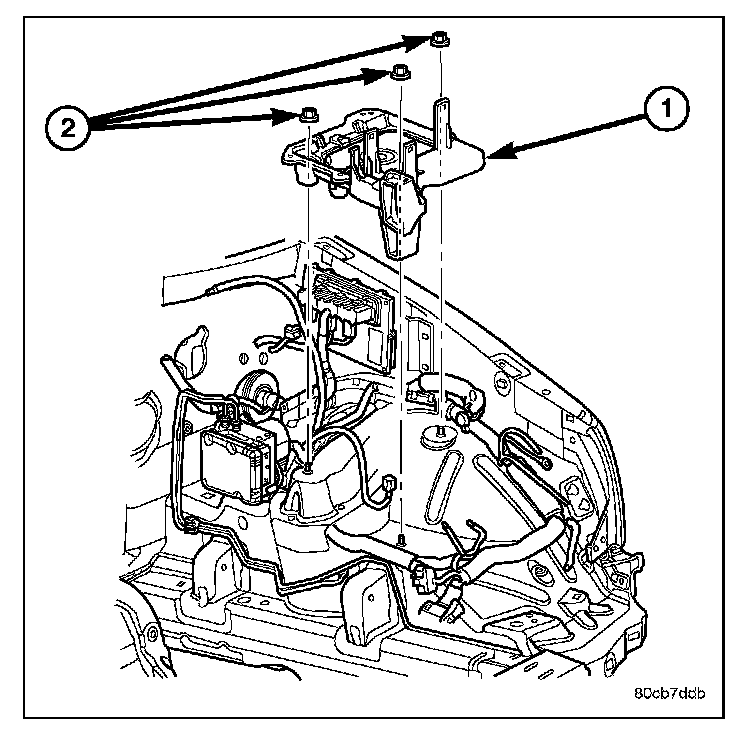

1. Remove the battery from the battery tray (1).
2. Unlatch and remove the PDC from the battery tray (1).
3. Remove the three nuts (2) that secure the battery tray (1) to the weld studs on the front extension of the left front wheelhouse inner panel.
4. Remove the battery tray (1) from the vehicle.
INSTALLATION
1. Clean and inspect the battery tray (1).
2. Position the battery tray (1) onto the weld studs on the front extension of the left front wheelhouse inner panel.
3. Install the three nuts (2) that secure the battery tray (1) to the weld studs on the front extension of the left front wheelhouse inner panel. Tighten the nuts to 7 N.m (65 in. lbs.).
4. Install the PDC on the battery tray.
5. Install the battery onto the battery tray.
