EGR Air Flow Control Valve

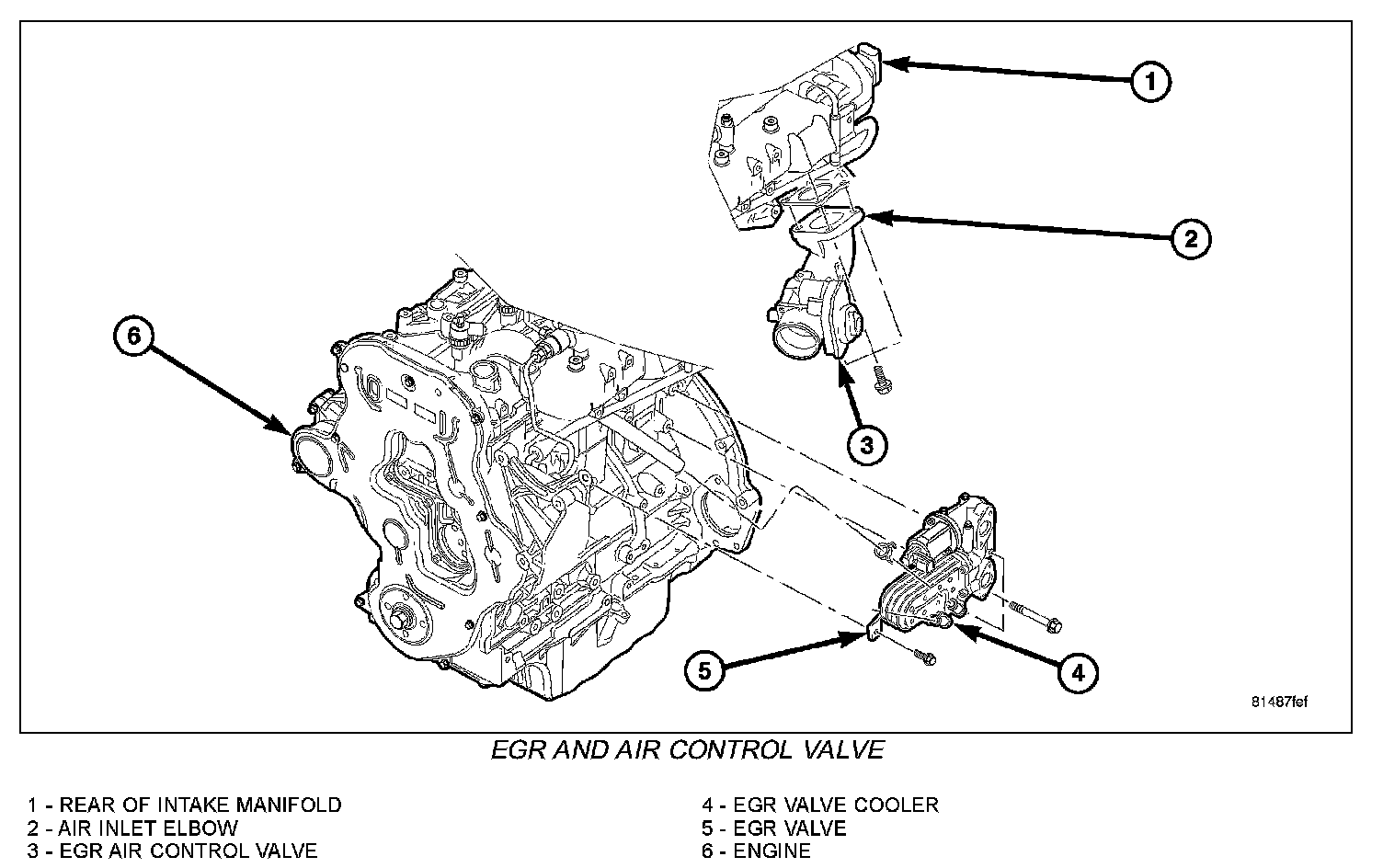

EGR And Air Control Valve:

The EGR air flow control valve is located between the incoming charge air and the intake manifold. It is used to increase the EGR flow rate at low engine loads. The valve is never totally closed, but the valve position depends on the exhaust gas quantity that needs to be recirculated with in the emission target.

EGR And Air Control Valve:

The EGR air flow control valve is a pulse width modulated control valve that is operated by the ECM in line with the EGR flow quantity required to remain inside the emissions target.
