Evaporator Core: Description and Operation
EVAPORATOR-A/CDESCRIPTION

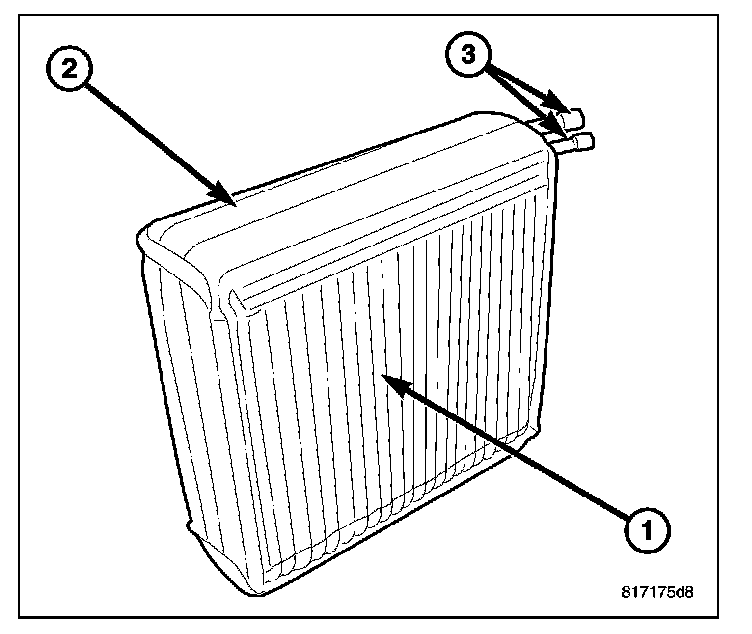

NOTE: LHD model shown. RHD model similar.
The A/C evaporator (1) and its insulator (2) for the heating-A/C system is located within the HVAC housing, behind the instrument panel. The A/C evaporator is positioned in the HVAC housing so that all air entering the housing must pass over the evaporator fins before it is distributed through the heating-A/C system ducts and outlets. However, air passing over the evaporator fins will only be conditioned when the A/C compressor is engaged and circulating refrigerant through the A/C evaporator.
On LHD models, the A/C liquid and suction lines are connected to the evaporator tubes (3) by use of rubber O-rings and quick-connect fittings. The refrigerant lines on RHD models are connected to the A/C evaporator by use of rubber O-rings, tapping blocks and retaining nuts.
The A/C evaporator can be serviced by removing and disassembling the HVAC housing assembly.
OPERATION
Refrigerant enters the A/C evaporator through the A/C orifice tube as a low-temperature, low-pressure mixture of liquid and gas. As air flows over the fins of the A/C evaporator, the humidity in the air condenses on the fins, and the heat from the air is absorbed by the refrigerant. Heat absorption causes the refrigerant to boil and vaporize. The refrigerant becomes a low-pressure gas when it leaves the A/C evaporator.
The A/C evaporator cannot be repaired and, if faulty or damaged, it must be replaced.
