Liberty 4WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Power Outlet
Auxiliary Power Outlet

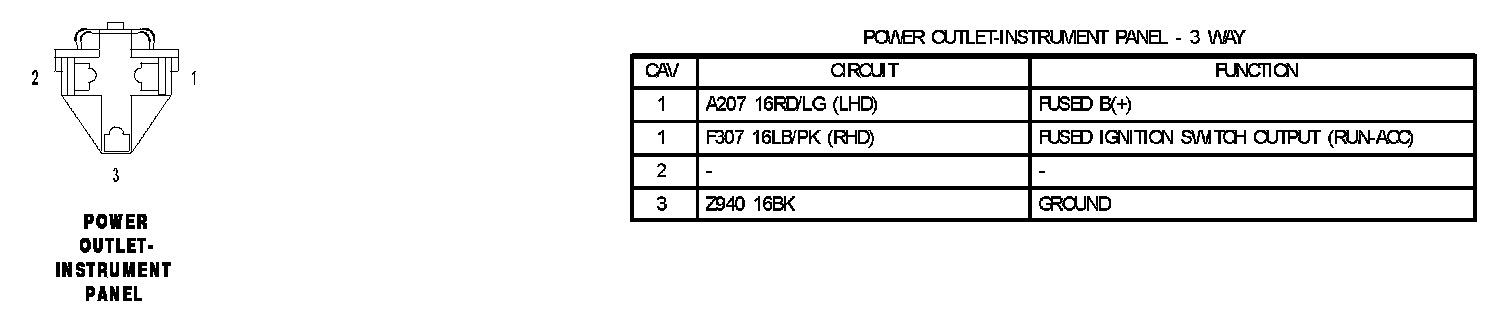

Power - Outlet Instrument Panel:

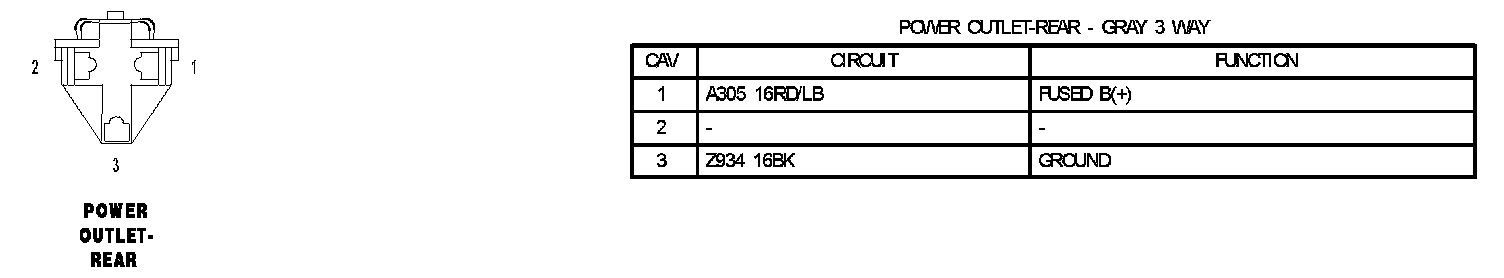

Power - Outlet Rear:
