Removal and Replacement

HEADLINER

REMOVAL




1. Remove the A-pillar trim.
2. Remove the visors.
3. Remove the sun visor support.
4. Remove the overhead console.
5. Cut rear washer hose at the mark about halfway up the A-pillar.
6. Remove the upper B-pillar trim. Refer to Trim Panel.
7. Remove the assist handles.
8. Remove the quarter trim. Refer to Trim Panel.
9. Disconnect the electrical connector along the left D-pillar and remove the ground wire.

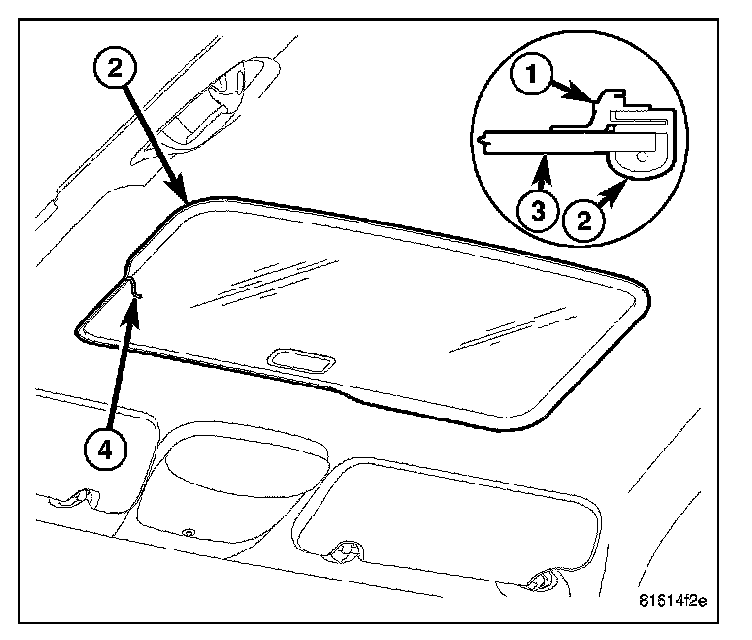

10. Remove the sunroof opening trim lace (2), if equipped.




11. Remove the dome light in the rear.
12. Remove the rear washer nozzle.

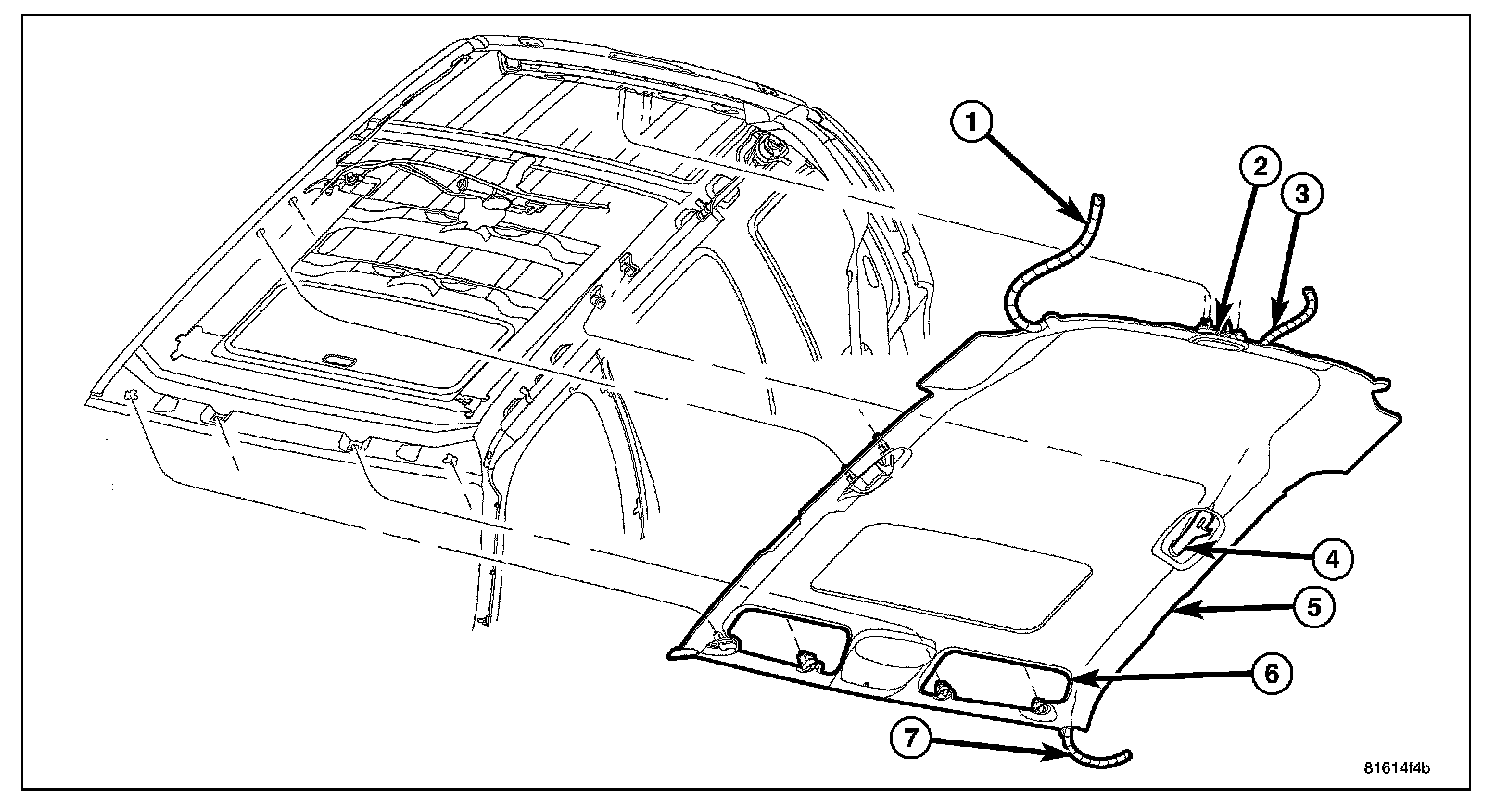

13. Remove the headliner.

INSTALLATION

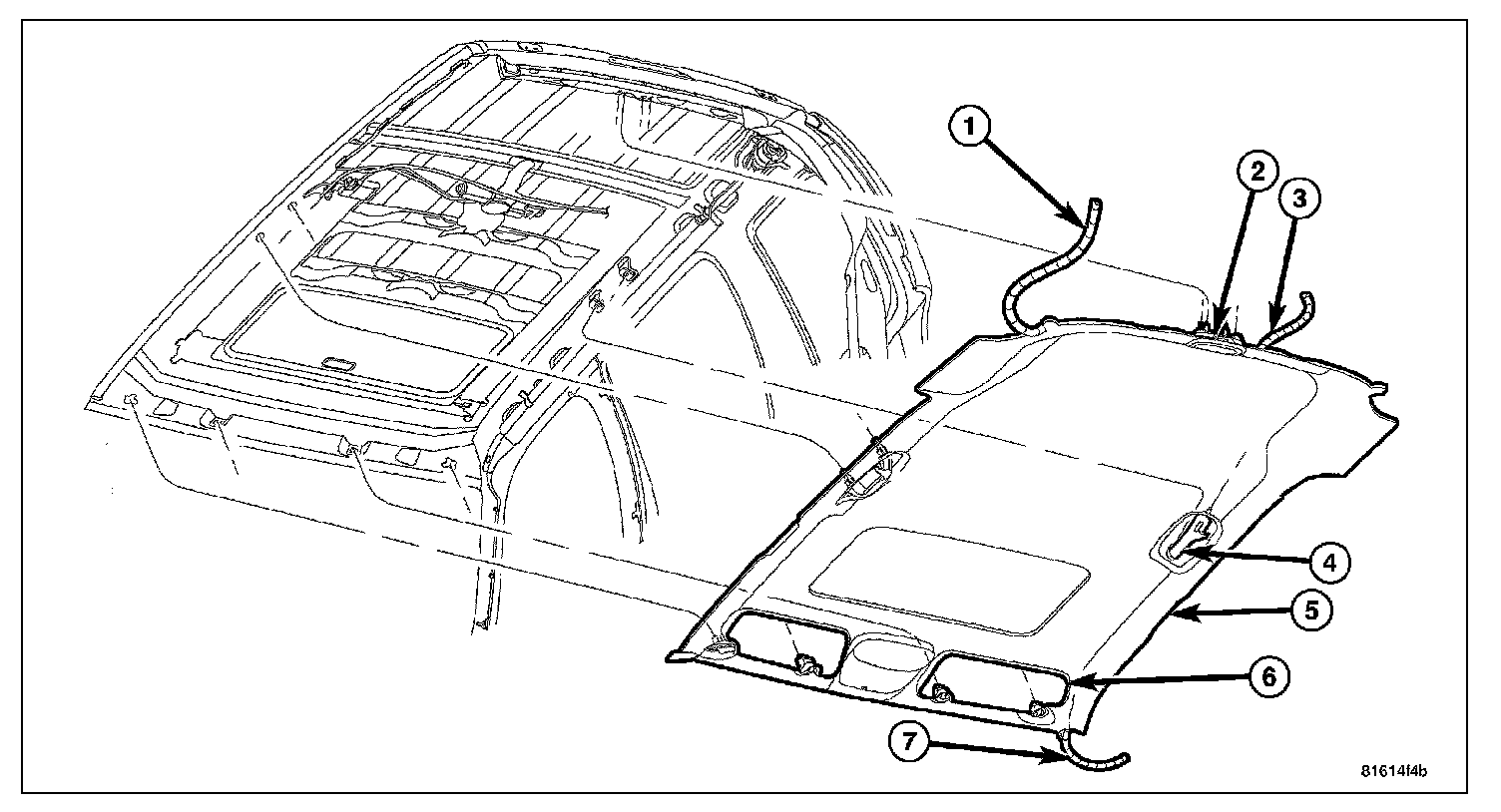

1. Install the headliner.
2. Install the assist handles (4).
3. Install the visors (6).
4. Install the visor supports.
5. Install the overhead console.
6. Connect the rear washer hose, previously cut, with a hose junction.
7. Install the A-pillar trim and grab handles.
8. Install the upper B-pillar trim.
9. Install the rear washer nozzle.
10. Connect the electrical connector and ground wire at the left D-pillar.
11. Install the quarter trim panels.
12. Install the rear dome light.
13. Install the sunroof opening trim lace, if equipped.
