Rear

WASHER NOZZLE

NOTE: The rear washer nozzle latch feature is a one time component, and will be damaged if the nozzle is removed from its mounting hole for service. If removed from its mounting hole for any reason, the rear washer nozzle must be replaced with a new unit.

REMOVAL

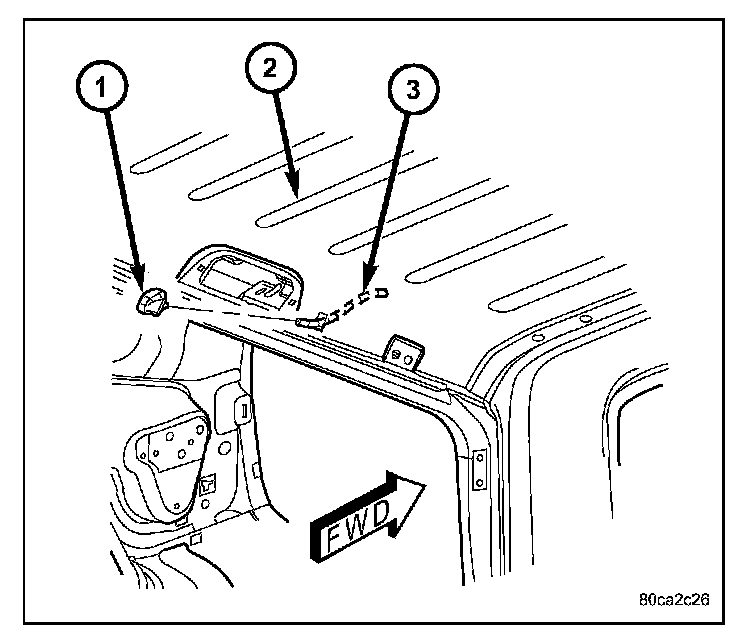

1. Using a trim stick or another suitable wide flatbladed tool, gently pry the bottom of the rear washer nozzle (1) away from the roof panel (2) until the latch feature at the bottom of the nozzle that secures it in the mounting hole of the roof panel unsnaps.
2. Pull the rear washer nozzle out from the roof panel far enough to access the headliner washer hose (3).
3. Disconnect the washer hose from the barbed nipple on the back of the rear washer nozzle.
4. Discard the rear washer nozzle.

INSTALLATION

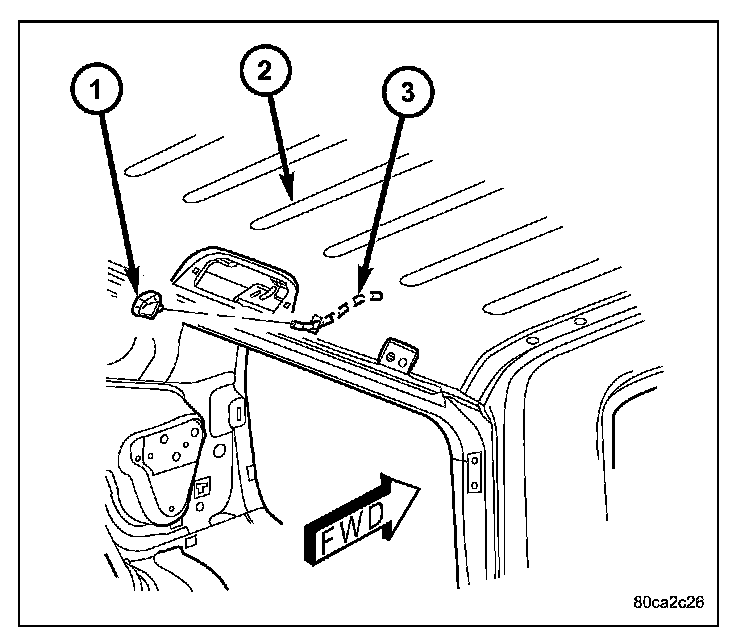

1. Position the new rear washer nozzle (1) to the mounting hole in the roof panel (2). Be certain that a new rubber gasket is in position on the back of the nozzle.
2. Reconnect the headliner washer hose (3) to the barbed nipple on the back of the rear washer nozzle.
3. Insert the rear washer nozzle and hose into the mounting hole in the roof panel and align the nozzle with the hole.
4. Engage the tab at the top of the nozzle behind the sheet metal at the top of the roof panel mounting hole.
5. Using hand pressure, press firmly and evenly on the hood of the rear washer nozzle until the lower latch feature snaps into place behind the sheet metal at the bottom of the roof panel mounting hole.
