WASHER NOZZLE

REMOVAL




1. Unlatch and open the hood.
2. Remove both front wiper arms from the wiper pivots.
3. Remove the cowl plenum cover/grille panel from over the cowl plenum.

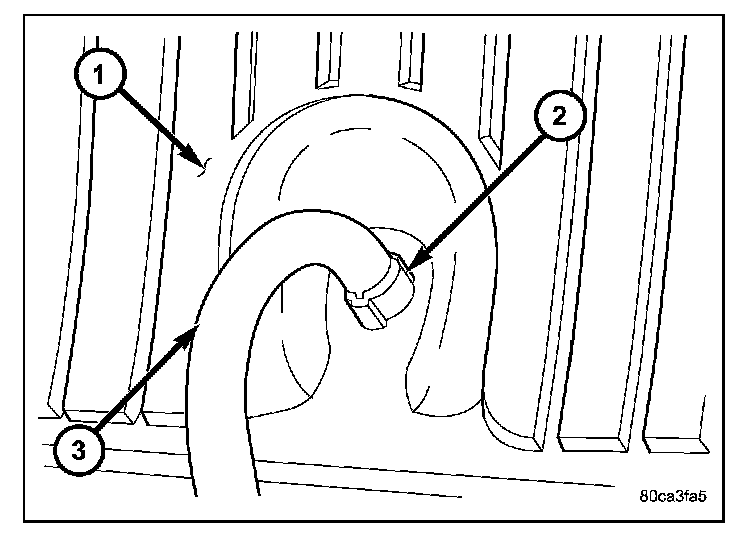

4. From the underside of the cowl plenum cover/grille panel (1), disconnect the washer nozzle hose (3) from the barbed nipple of the front washer nozzle (2).
5. From the underside of the cowl plenum cover/grille panel, release the integral latch features of the front washer nozzle and push the nozzle out through the mounting hole toward the top side of the cowl plenum cover/grille panel.
6. Remove the front washer nozzle from the top of the cowl plenum cover/grille panel.

INSTALLATION




1. From the top of the cowl plenum cover/grille panel, position the nipple end of the front washer nozzle (2) through the mounting hole and engage the antirotation tab of the nipple into the anti-rotation notch in the mounting hole.
2. Push firmly and evenly on the top of the front washer nozzle until the integral latch features lock into place on the underside of the cowl plenum cover/grille panel (1).
3. From the underside of the cowl grille cover, reconnect the washer hose (3) to the barbed nipple of the front washer nozzle.
4. Reinstall the washer hose for the front washer nozzle into its routing clips on the underside of the cowl plenum cover/grille panel.
5. Reinstall the cowl plenum cover/grille panel over the cowl plenum.
6. Reinstall both front wiper arms onto the wiper pivots.
7. Close and latch the hood.
