Pilot Bearing: Service and Repair

BEARING-PILOT

REMOVAL
1. Remove transmission.
2. Remove pressure plate and clutch disc.
3. Remove pilot bearing with an internal (blind hole) puller.

INSTALLATION





1. Lubricate new bearing with Mopar high temperature bearing grease or equivalent.

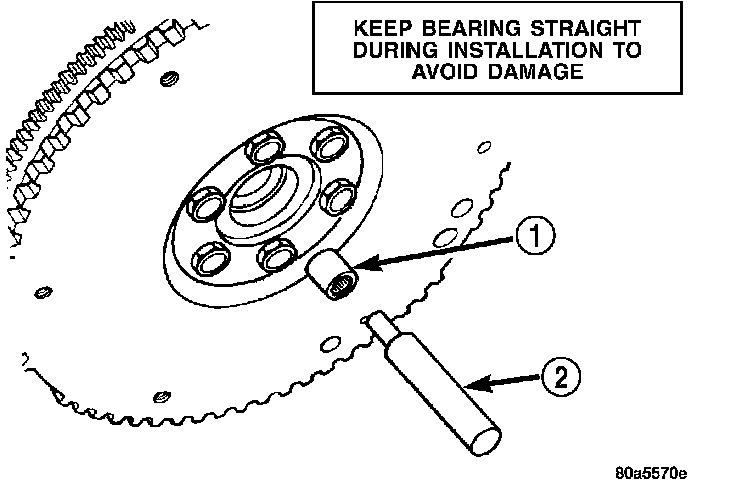

2. Start new pilot bearing (1) into crankshaft by hand. Then seat bearing with clutch alignment tool (2).
3. Install clutch disc and pressure plate.
4. Install transmission.
