Lower Control Arm
LOWER CONTROL ARMDESCRIPTION

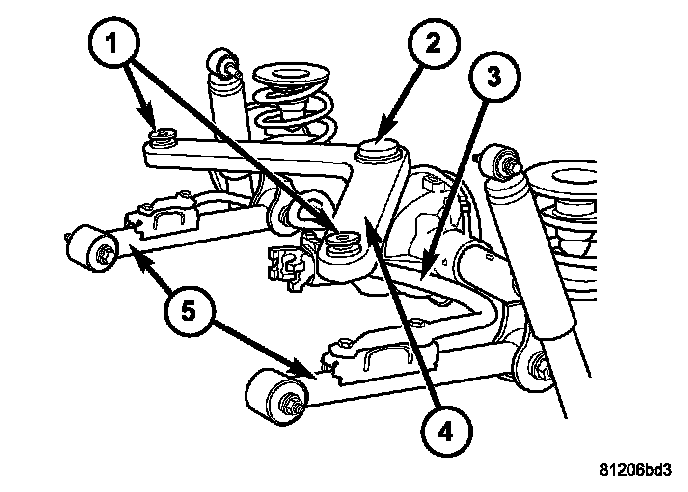

The lower suspension arms (5) are stamped steel and welded and use voided round bushings at the axle end and solid rubber at the body end of the arm.
OPERATION

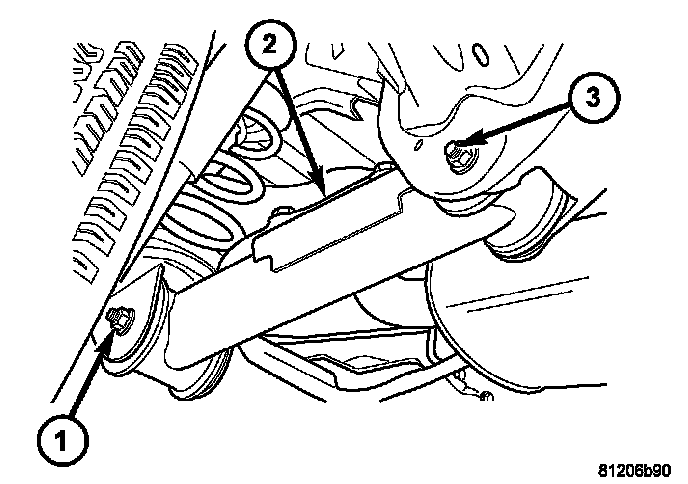

The bushings provide isolation from the axle. The arms (2) mount to the unibody frame rail bracket (3) and the axle brackets (1). The arm (2) and bushings provide location and react to loads.
