Tire Pressure Monitor Receiver / Transponder: Service and Repair
TRANSPONDERREMOVAL
FRONT
1. Raise and support the vehicle.
2. Remove the front part wheel well housing cover and pull it back toward the tire to gain access to the transponder.

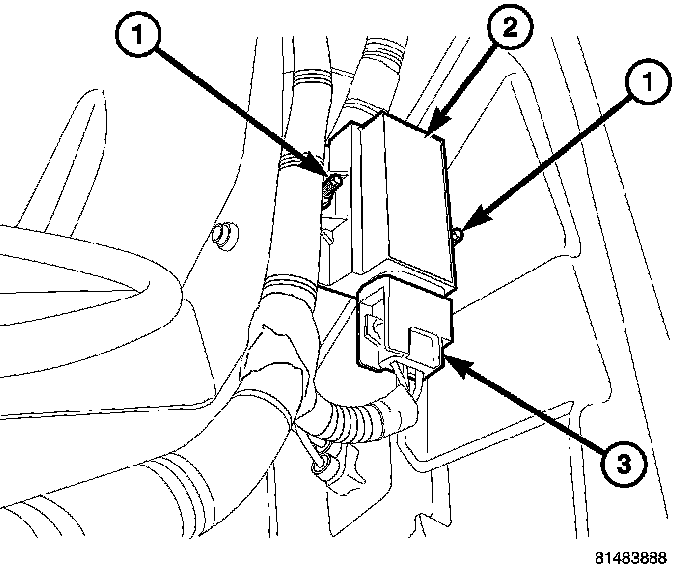

3. Remove the mounting nuts (1) for the transponder (2) from the mounting bracket.
4. Disconnect the electrical connector (3) and remove the transponder (2) from the vehicle.
REAR
1. Raise and support the vehicle.

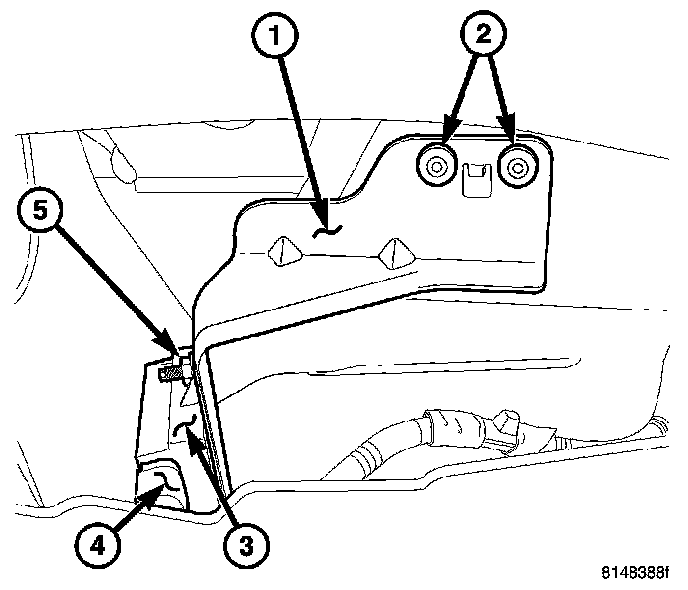

2. Drill out the rivets (2) for the transponder mounting bracket (1).
3. Disconnect the electrical connector (4).

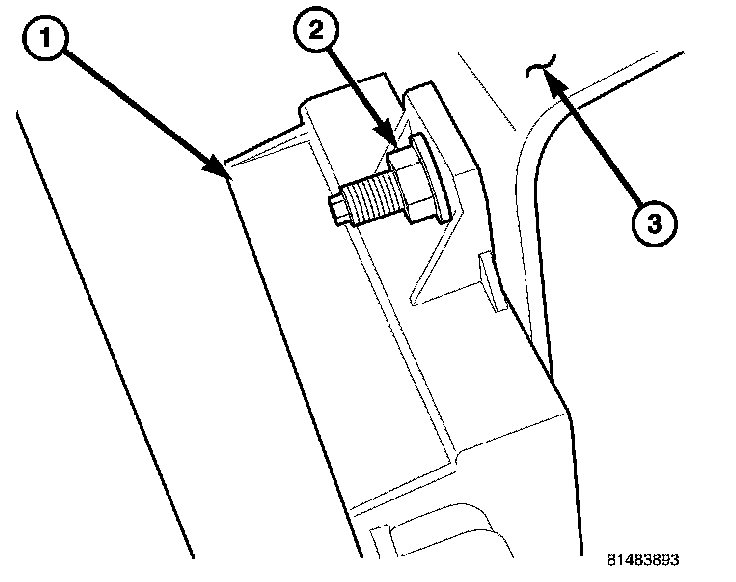

4. Pull the transponder (1) with the bracket down and remove the mounting nuts (2) for the transponder (1).
5. Remove the transponder (1) from the bracket (3).
INSTALLATION
FRONT

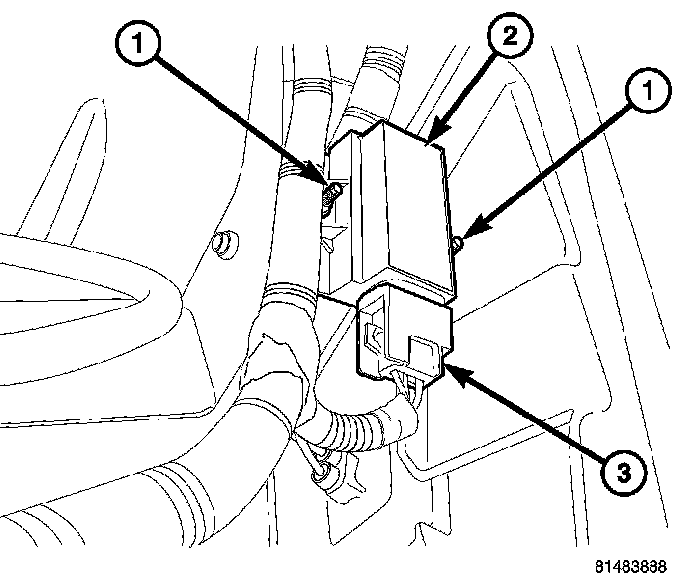

1. Reconnect the electrical connector (3) to the transponder (2).
2. Install the transponder (2) to the mounting bracket and install the mounting nuts (1).
3. Install the front part of the wheel well housing cover.
4. Lower the vehicle.
REAR

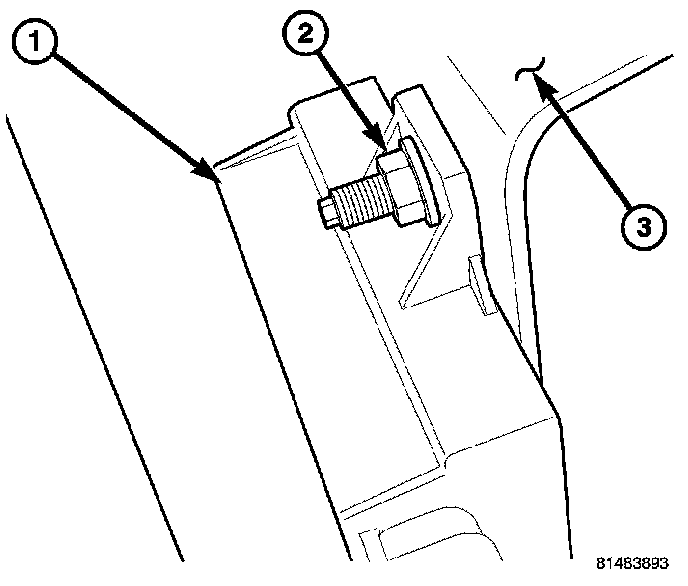

1. Install the transponder (1) to the bracket (3) and install the mounting nuts (2).
2. Reconnect the electrical connector (4) to the transponder (3).
3. Install the transponder/bracket assembly (1) to the vehicle and install new rivets (2).
4. Lower the vehicle.
