Lamp Bar
LAMP BARBULB
CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.
NOTE: The optional light bar includes either two or four lamps, depending upon the requirements in the market for which the vehicle is manufactured. Each lamp contains a single bulb. The service procedures for
each of these bulbs is the same.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the cover from the light bar lamps and reinforcement.

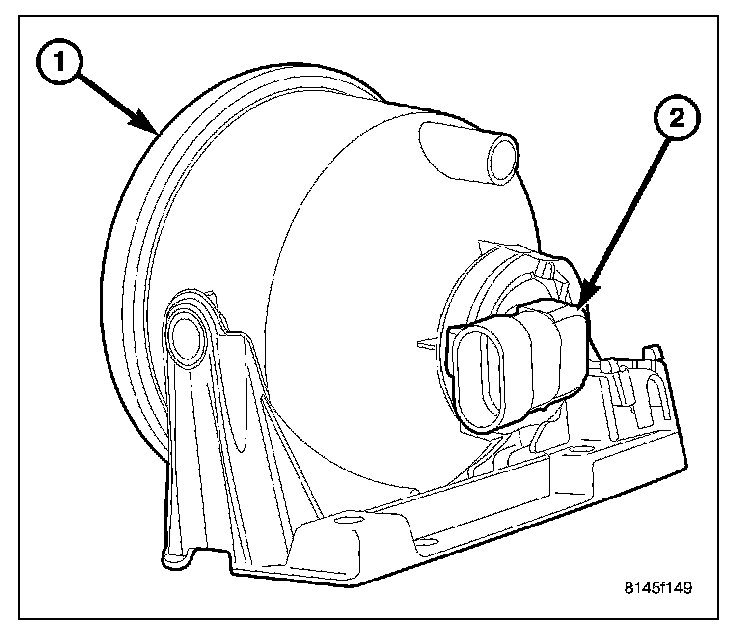

3. Disconnect the wire harness connector from the light bar lamp socket (2).
4. Firmly grasp the socket on the back of the lamp housing (1) and rotate it counterclockwise about 30 degrees to unlock it.
5. Pull the socket and bulb straight out from the keyed opening in the housing.
6. Pull the base of the bulb straight out of the socket.
INSTALLATION
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket and/or the lamp wiring.

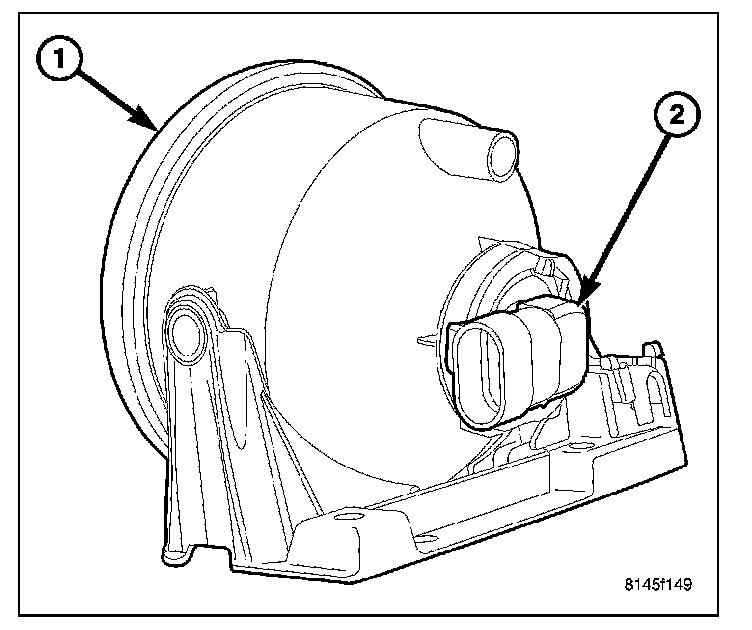

1. Align the base of the bulb with the light bar lamp socket (2).
2. Push the bulb straight into the socket until the base is firmly seated.
3. Align the socket and bulb with the keyed opening on the back of the light bar lamp housing (1).
4. Insert the socket and bulb into the housing until the socket is firmly seated.
5. Rotate the socket clockwise about 30 degrees to lock it into place.
6. Reconnect the wire harness connector to the socket.
7. Reinstall the cover over the light bar lamps and reinforcement.
8. Reconnect the battery negative cable.
