Fascia Mounted

BULB - FASCIA MOUNTED

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

REMOVAL




1. Disconnect and isolate the battery negative cable.

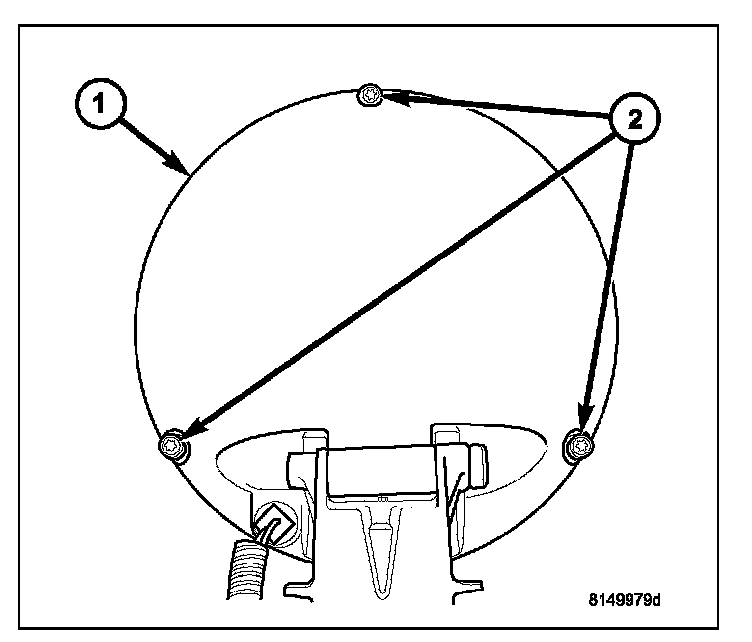

2. Remove the three screws (2) that secure the front fog lamp bezel and lens to the back of the lamp housing (1).




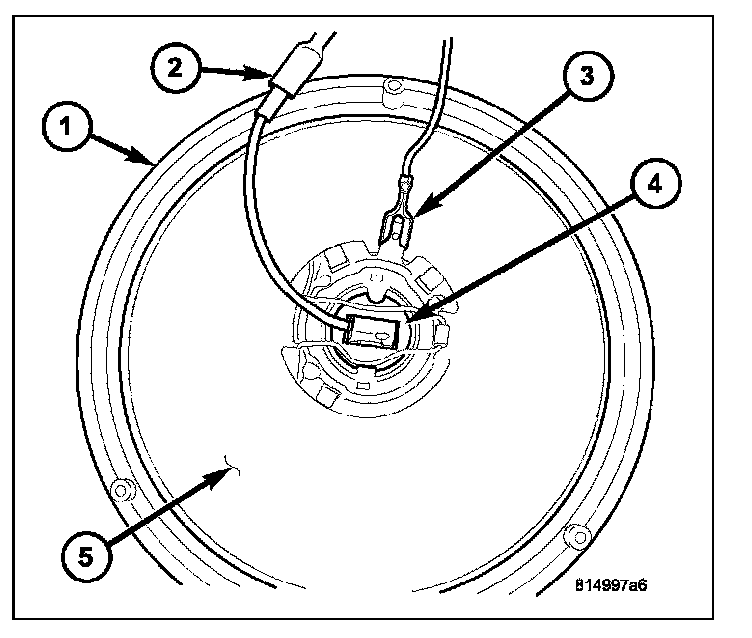

3. Pull the bezel (1) and lens away from the front of the lamp housing far enough to access and disconnect the fog lamp wiring connector from the bulb pigtail wire (2).

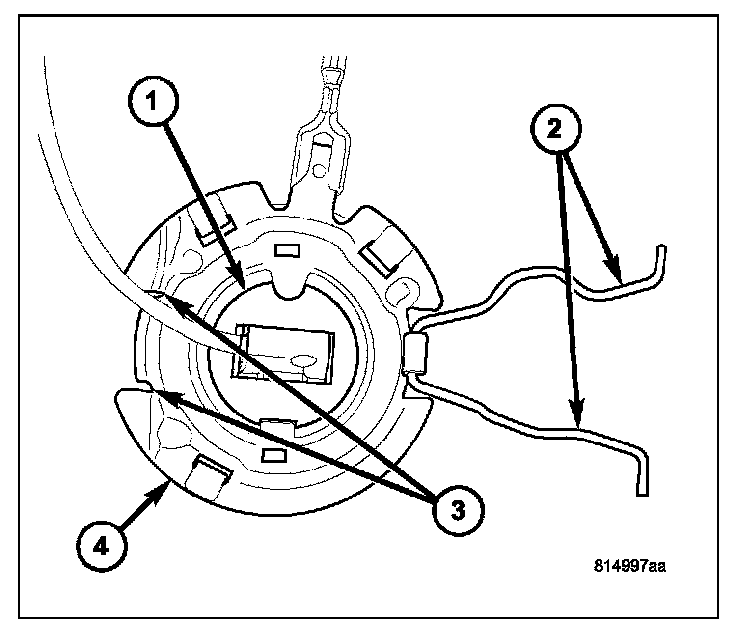

4. Pinch together the two hooked ends of the bulb retainer clip (2) and disengage them from the slots
3. in the mounting flange (4) on the back of the lens reflector.
5. Pivot the retainer clip up off of the bulb flange and out of the way.
6. Pull the bulb straight out of the mounting flange on the back of the lens reflector.

INSTALLATION

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket and/or the lamp wiring.




1. Align the fog lamp bulb flange (1) with the mounting flange (4) on the back of the lens reflector.
2. Insert the bulb straight into the opening in the mounting flange until the bulb flange is firmly seated.
3. Pivot the bulb retainer clip (2) up and over the bulb flange.
4. Pinch together the two hooked ends of the retainer clip and engage them into the slots (3) in the mounting flange to lock the bulb into place.




5. Reconnect the bulb pigtail wire to the fog lamp wiring connector (2).
6. Align and install the lens and bezel (1) into the front fog lamp housing. Be certain not to pinch the lamp wiring between the housing and the bezel.




7. Install and tighten the three screws (2) that secure the bezel and lens to the back of the lamp housing (1) Tighten the screws to 2 N.m (17 in. lbs.).
8. Reconnect the battery negative cab
