Outlet-Air

OUTLET-AIR

REMOVAL

NOTE: The instrument panel air outlet barrels are retained onto the pivots located in the outlet housing by a light snap fit.

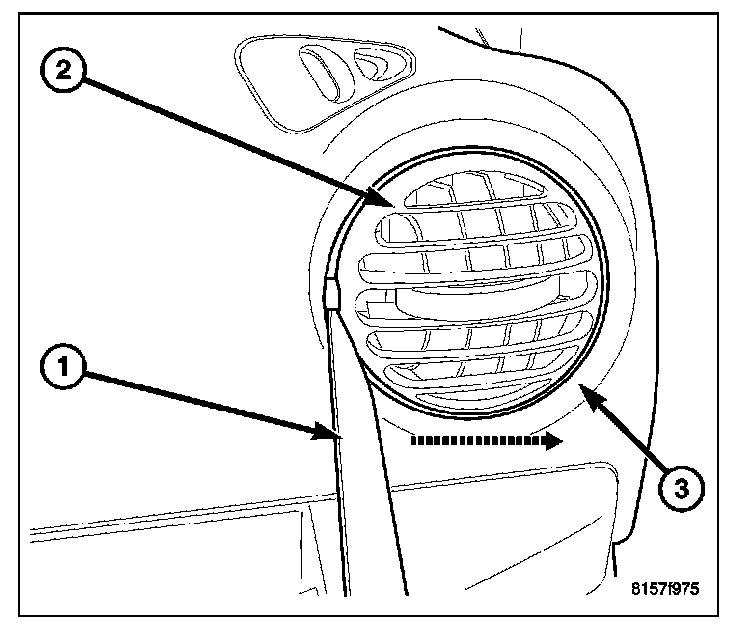

1. Using a trim stick C-4755 or equivalent (1), gently pry the panel air outlet barrel(s) (2) out of the instrument panel air outlet(s) (3) as required.

INSTALLATION

CAUTION: The instrument panel air outlet barrels can only be installed in one direction. If the air outlet barrel is not properly oriented prior to installation, damage to the air outlet barrel will occur.

NOTE: Each air outlet barrel is retained into the air outlet housing by two pivot shafts. One pivot shaft is larger than the other. The air outlet barrel must be first installed onto the larger pivot shaft, then snapped into place over the smaller pivot shaft.

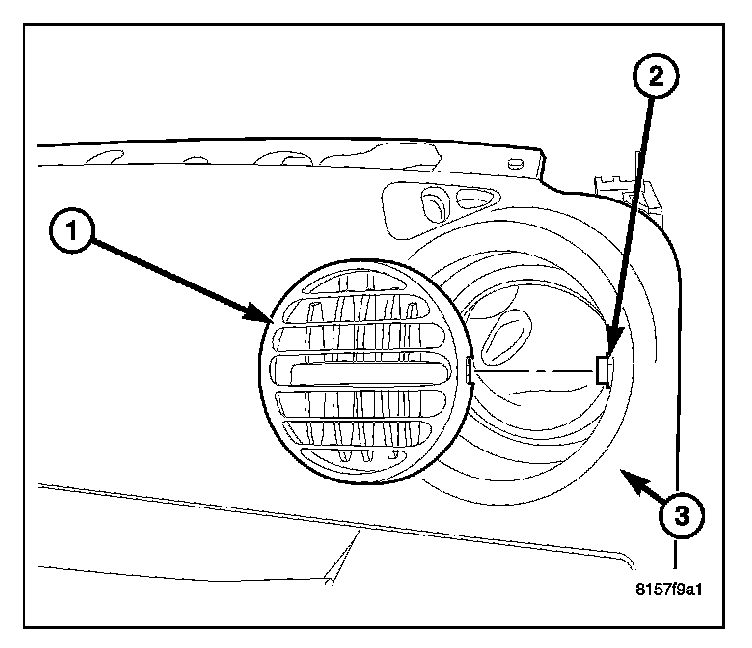

1. Install the air outlet barrel (1) onto the larger pivot shaft (2) located in the instrument panel air outlet housing (3).

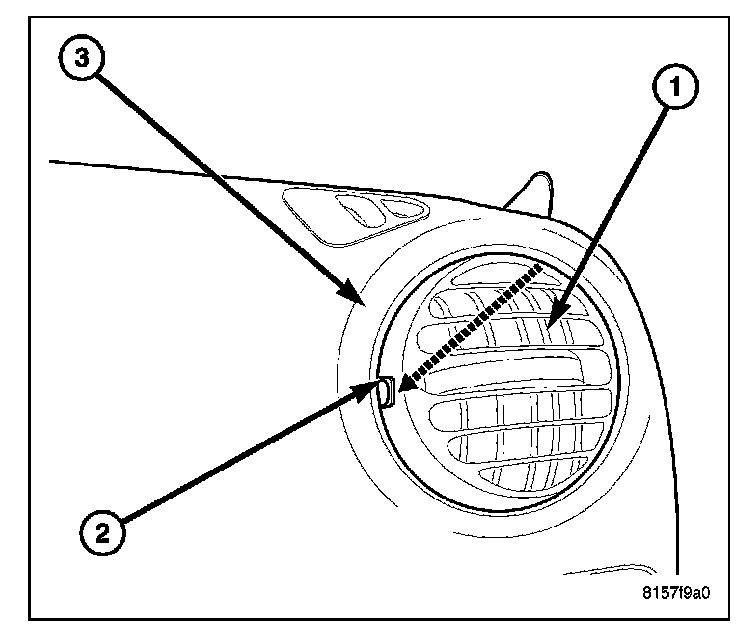

2. Gently push the air outlet barrel (1) onto the smaller pivot shaft (2) of the instrument panel air outlet housing (3) until it snaps into position.
