Duct-Floor Distribution

DUCT-FLOOR DISTRIBUTION

NOTE:
- LHD model shown in illustration. RHD model similar.
- If the foam seal on the floor distribution duct is deformed or damaged, the foam seal must be replaced.

REMOVAL




1. Remove the HVAC Housing and place it on a workbench.

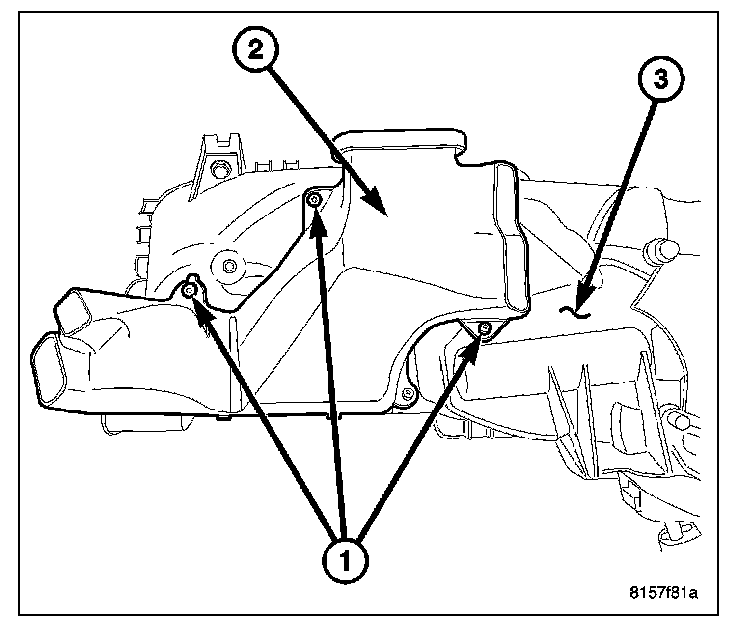

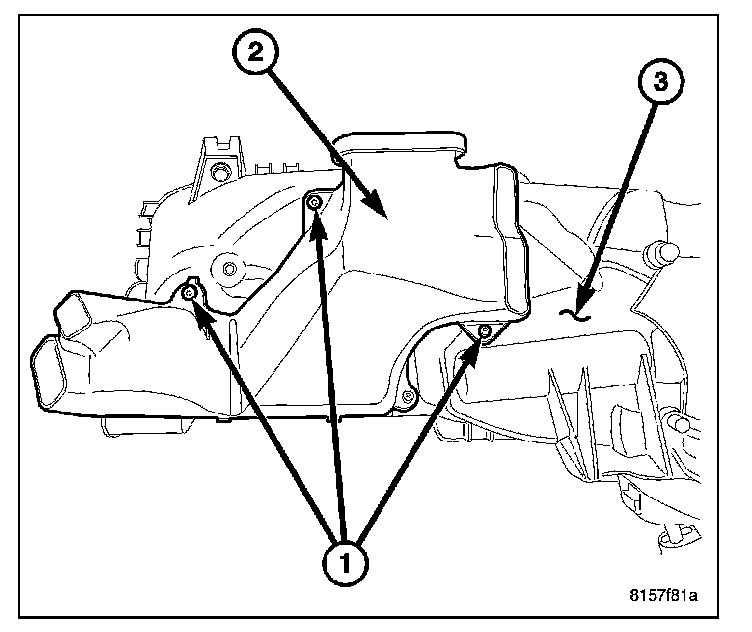

2. Remove the three screws (1) that secure the floor distribution duct (2) to the bottom of the HVAC housing (3).
3. Remove the floor distribution duct from the HVAC housing. If the foam seal on the floor distribution duct is deformed or damaged, the seal must be replaced.

INSTALLATION




1. Position the floor distribution duct (2) onto the bottom of the HVAC housing (3).
2. Install the three screws (1) that secure the floor distribution duct to the HVAC housing. Tighten the screws to 2 N.m (17 in. lbs.).
3. Install the HVAC housing.
