Jeep Truck
>>
2006
>>
Liberty 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
System Diagram
System Diagram

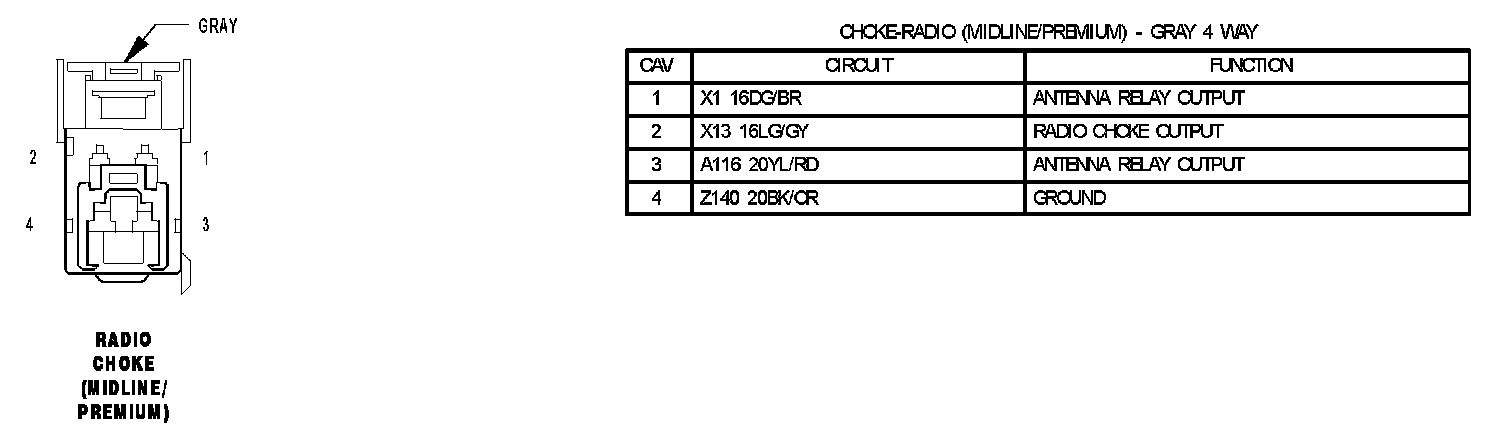

Radio Choke (Midline/Premium):
