Pressure Regulating Solenoid, A/T
Pressure Regulating Solenoid, A/T

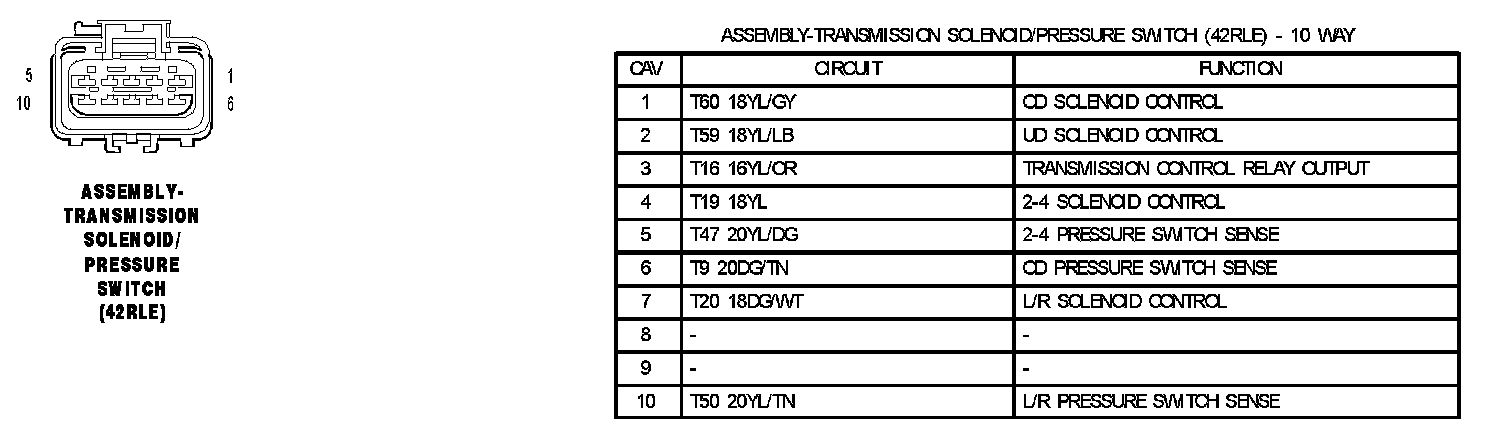

Assembly - Transmission Solenoid/Pressure Switch (42RLE):
