Jeep Truck
>>
2006
>>
Liberty 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C203
>>

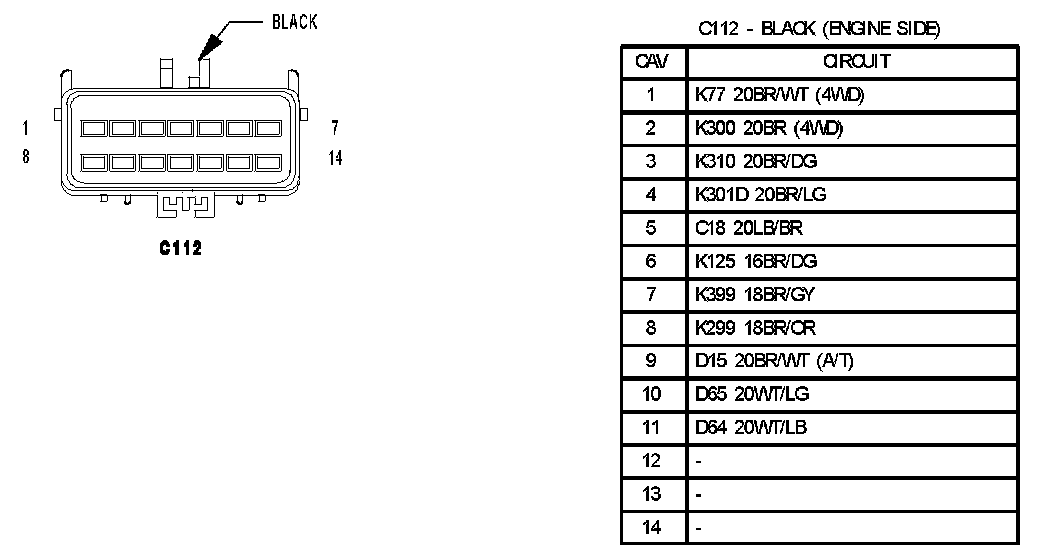

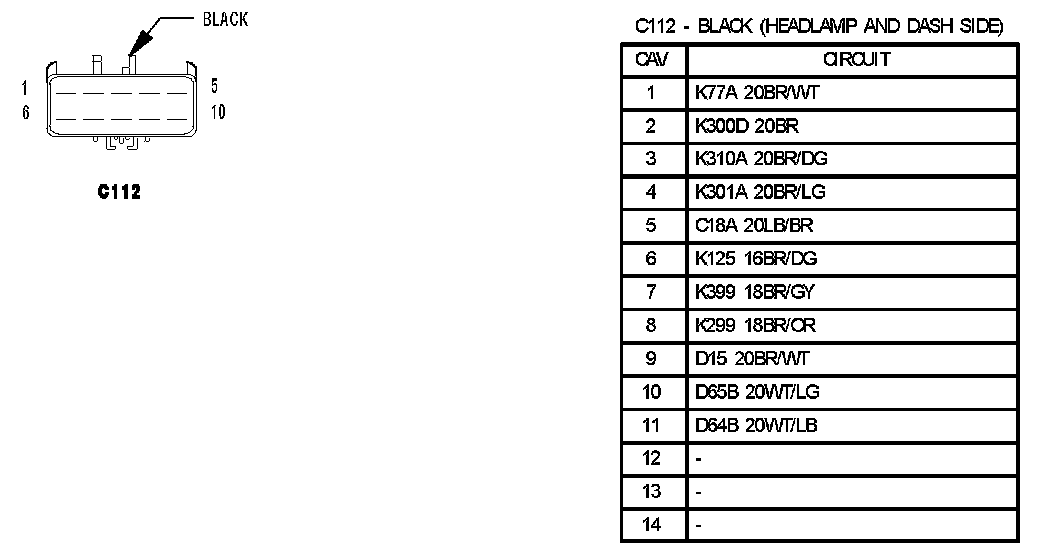

C112
C112
C112:
C112:
