Parking Brake Cable: Service and Repair

CABLES

REMOVAL





1. Lock out the parking brake cables.





2. Remove the rear seat.
3. Pull the carpet forward far enough in the rear to gain access to the two parking brake cables thru the floor.

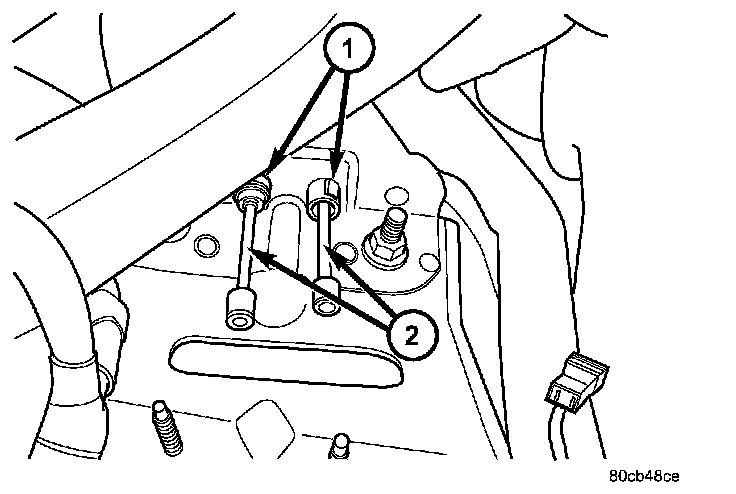

4. Disconnect the two cables (1) from the front mount.

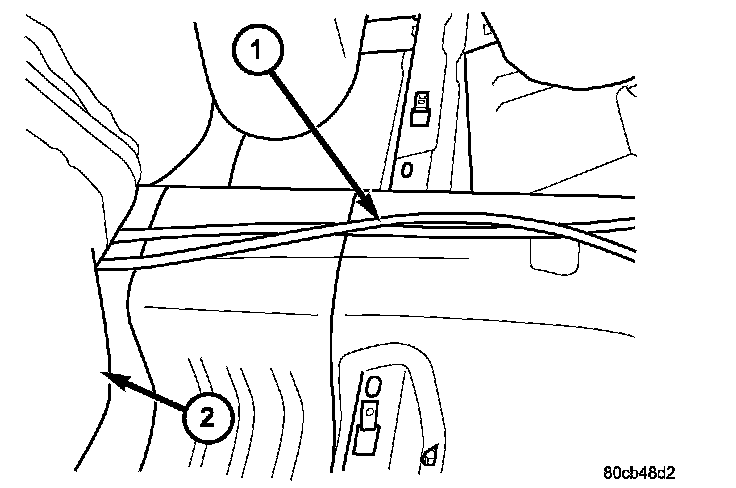

5. Push the cables (2) thru the floor with the grommets.

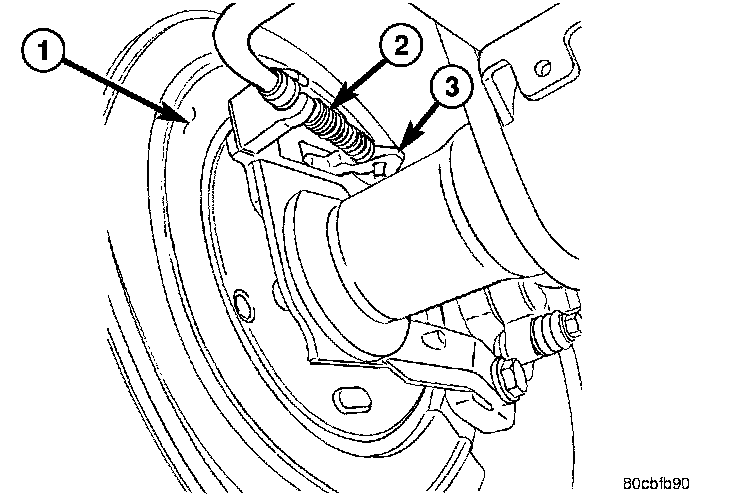

6. Remove the cable from the axle bracket with a proper sized box end wrench over the tangs (1).

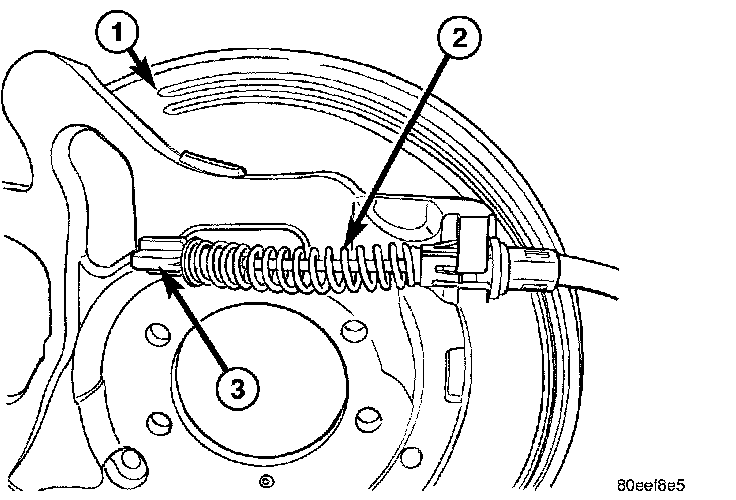

7. Remove the brake cable (2) from the brake lever (3).

INSTALLATION





1. Install the cables (2) into the axle bracket.
2. Reconnect the cable to the park brake lever (3).





3. Push the cables (2) thru the floor and seat the tangs (1).





4. Reconnect the two cables (1) to the front mount.

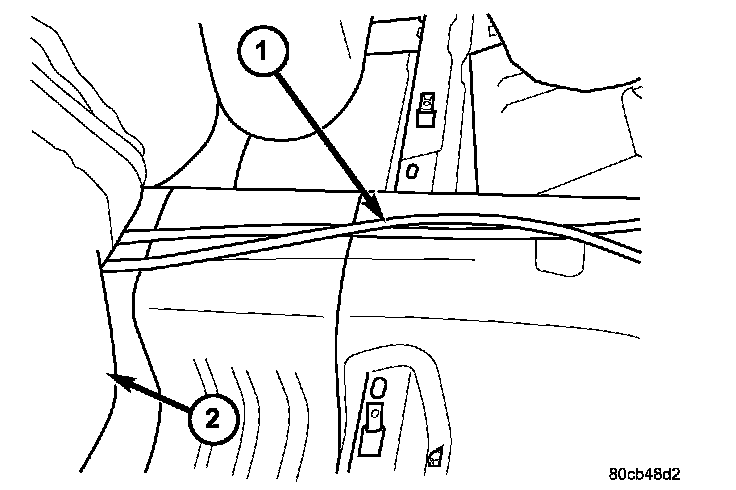

5. Lay the carpet (2) back down in the rear.
6. Install the rear seat.

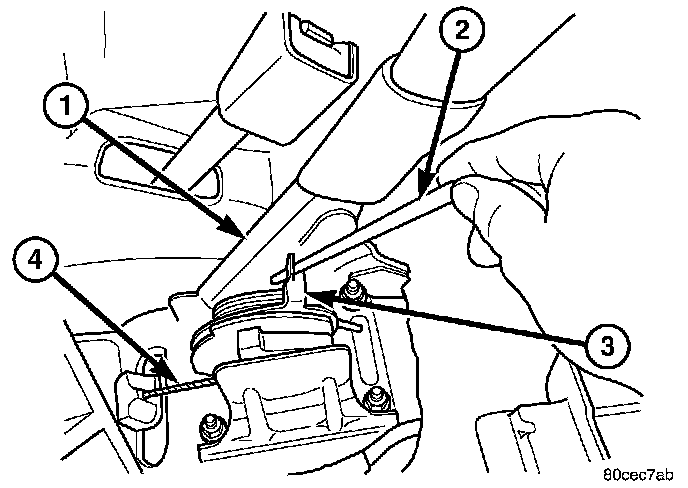

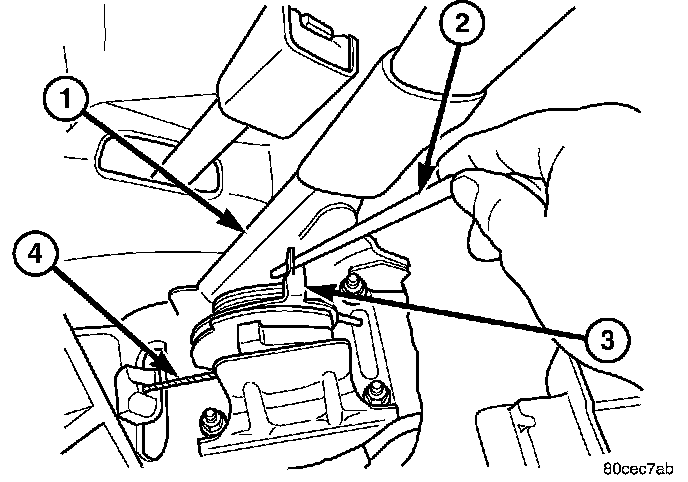

7. Remove the lock out device (2) on the lever (1).
8. Adjust the park brake shoes.
9. Test the parking brake.
