Removal and Installation

DISC BRAKE ROTOR

REMOVAL
FRONT





1. Raise and support the vehicle.
2. Remove the tire and wheel assembly

CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose will result. Provide a suitable support to hang the caliper securely.

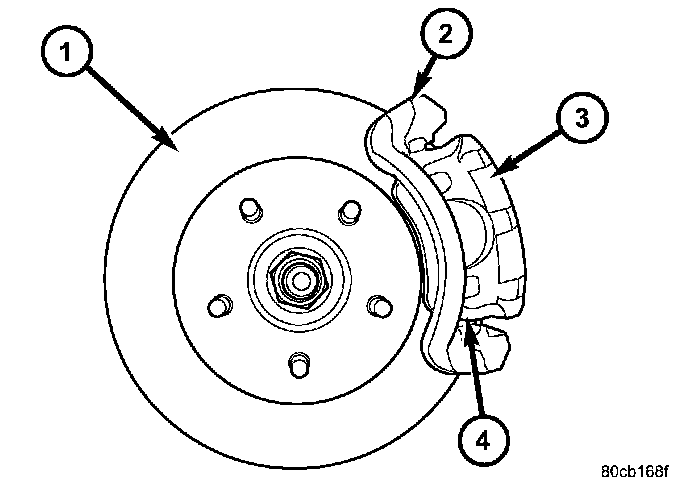

3. Remove the caliper adapter (2).
4. Remove the disc brake rotor (1).

REAR





1. Raise and support the vehicle
2. Remove the tire and wheel assembly

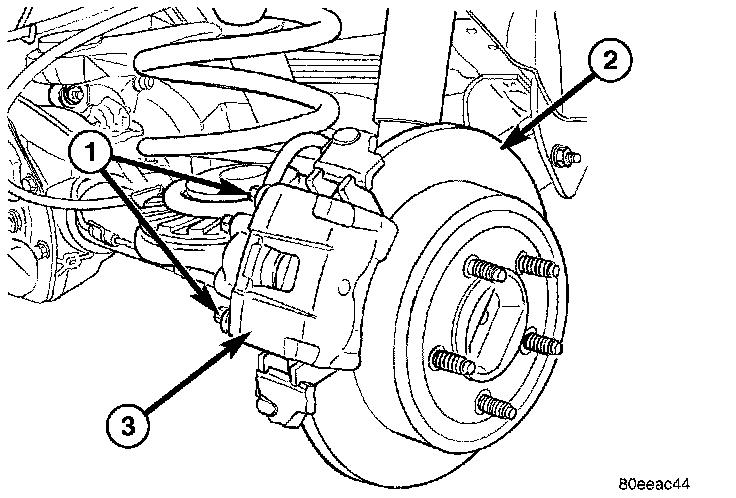

3. Remove the disc brake caliper (1) and pads (3).
4. Remove the retaining clips and rotor assembly.

INSTALLATION
FRONT

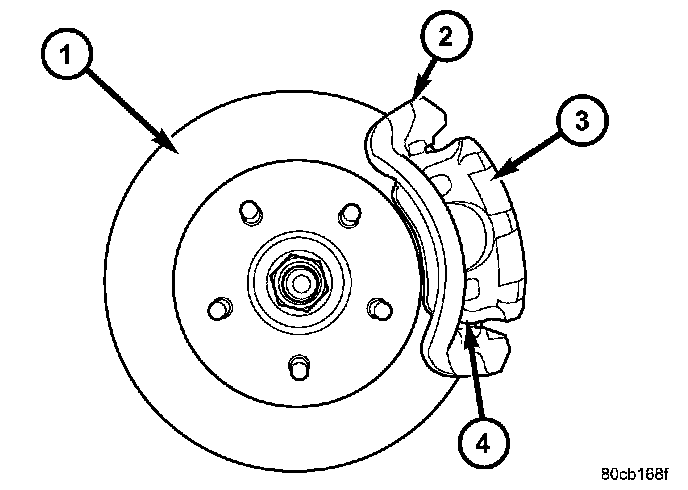

1. Install the disc brake rotor (1) to the hub.
2. Install the caliper mounting adapter (2).
3. Install the tire and wheel assembly.

REAR

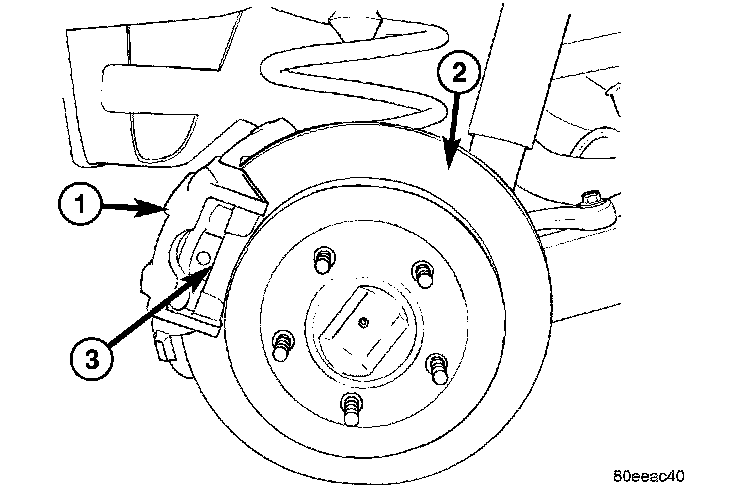

1. Install the rotor (2) to the axle shaft.
2. Install the disc brake caliper (3) and pads.
3. Install the tire and wheel assembly.
4. Lower the vehicle.
