Front Tow Hook

FRONT TOW HOOK

REMOVAL

NOTE: Front fascia must be removed to replace the stud plate. Refer to Front Bumper.







1. Remove the nuts and bolt and remove the tow eye/hook.

INSTALLATION

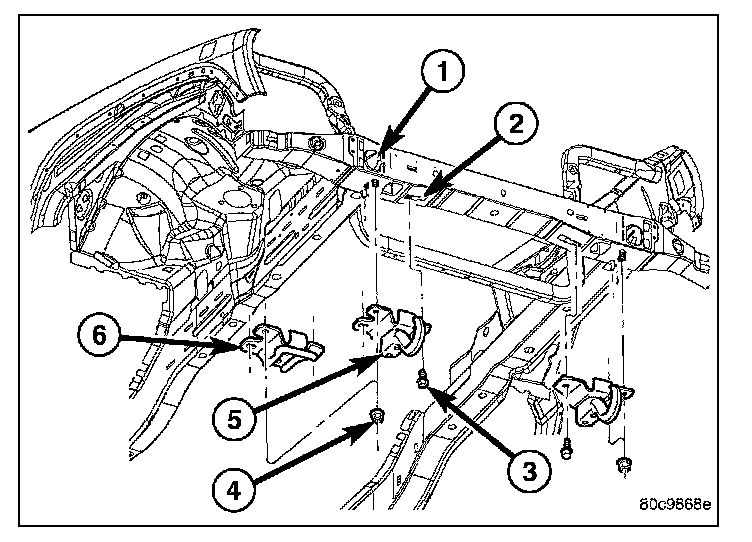

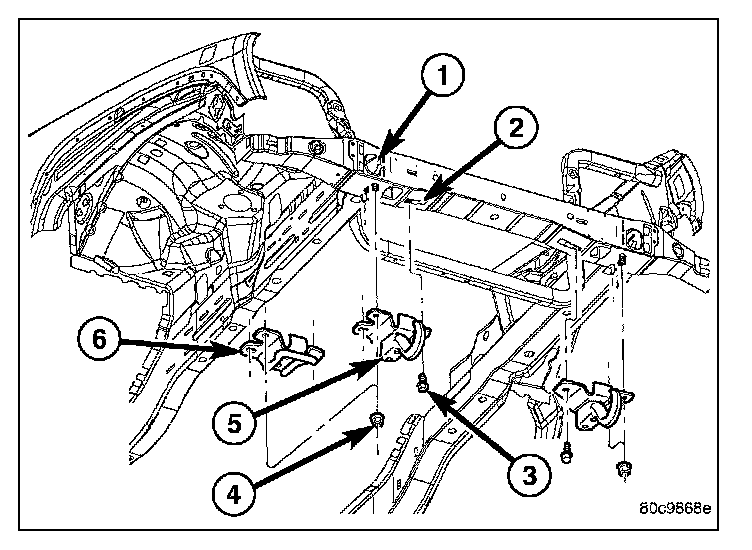

1. Install the stud plate if previously removed.
2. Install the tow eye/hook.
3. Install the nuts and bolt and tighten to 61 N.m (45 ft.lbs.).




4. Install the front fascia if the stud plate was replaced.
