Stabilizer Wedge / Insert
STABILIZER WEDGE / INSERTREMOVAL
1. Open the swing gate.

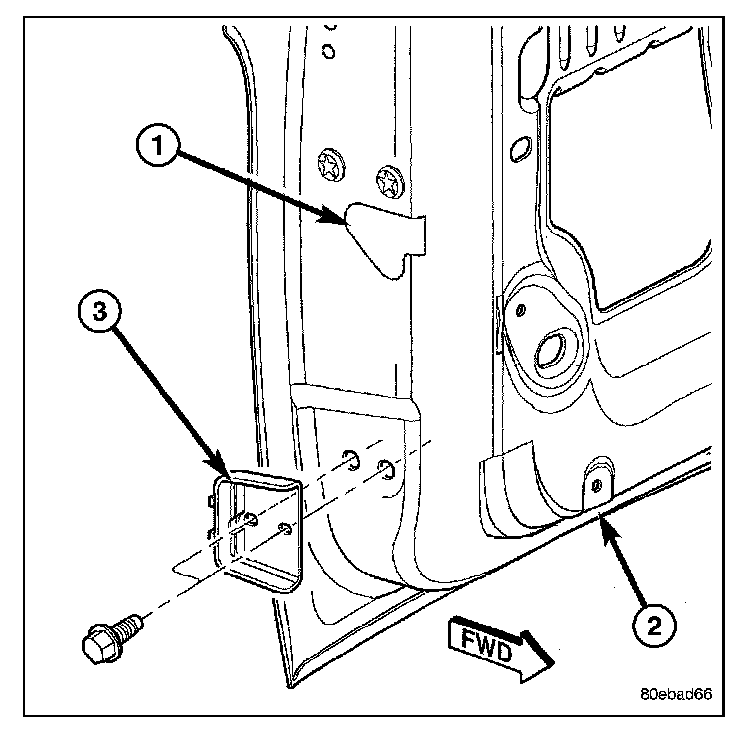

2. Using a grease pencil or equivalent, mark the location of the stabilizer cup (3) and insert to aid installation.
3. Remove the bolts for the stabilizer cup and remove the cup.

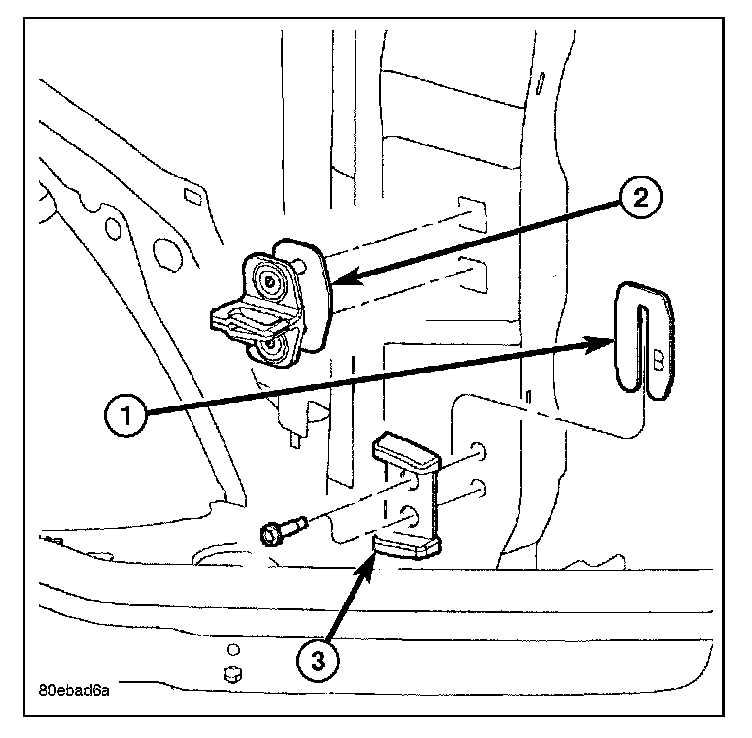

4. Remove the bolts for the insert and remove the insert (3) and shim (1), if equipped.
INSTALLATION

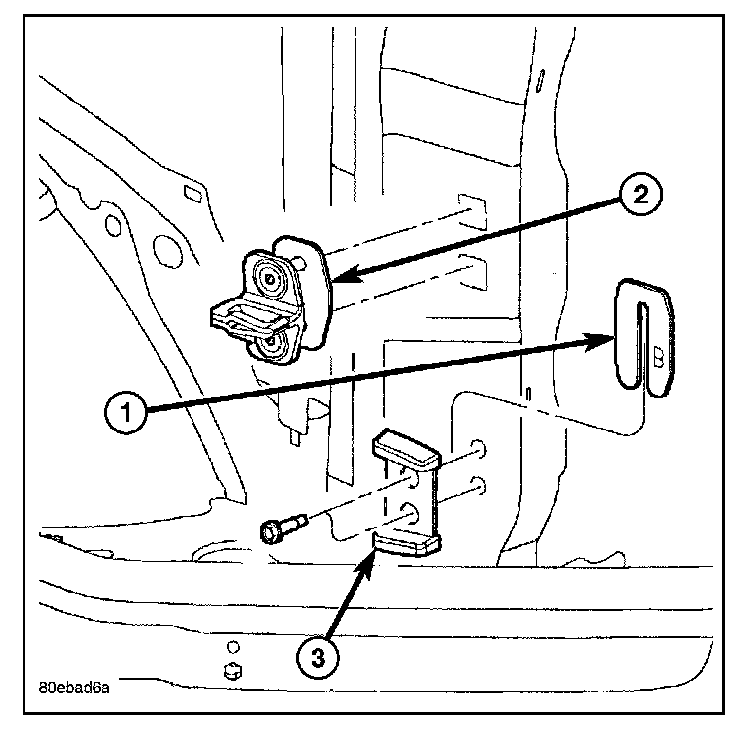

1. Install the stabilizer insert (3) with the narrow end toward the rear of the vehicle and install the bolts.
2. Tighten the bolts to 9 N.m (80 in.lbs.).

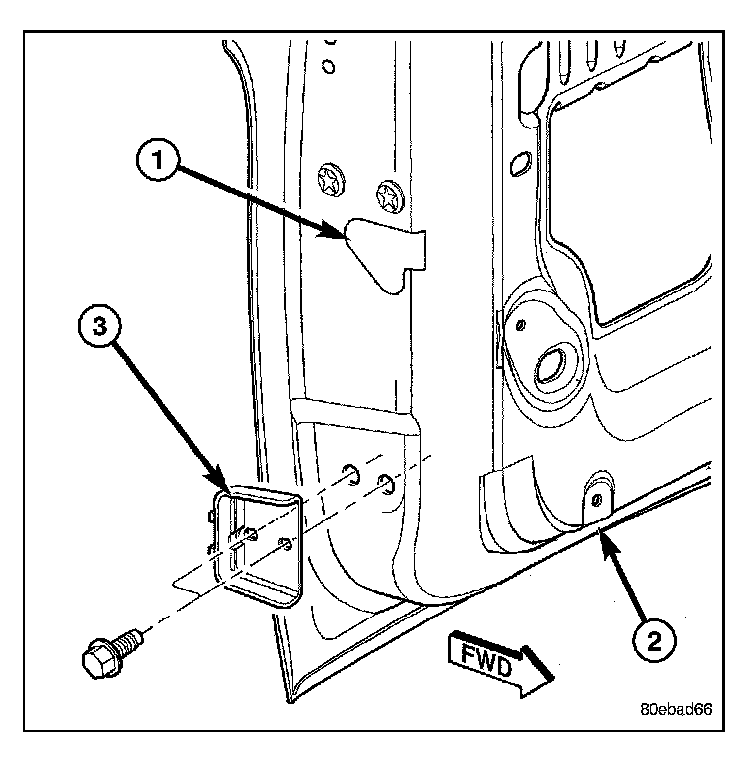

3. Install the stabilizer cup (3) and loosely install the bolts.
4. Adjust the stabilizer and tighten the bolts to 9 N.m (80 in.lbs.).
