Power Seat Motor: Diagrams

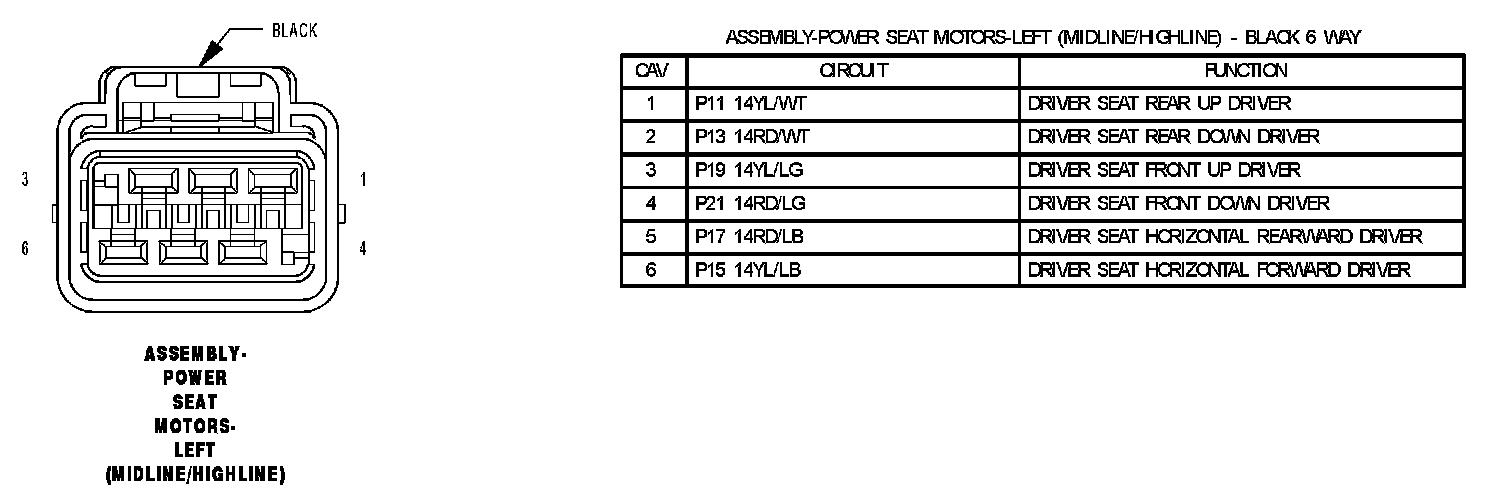

Assembly - Power Seat Motors Left (Midline/Highline):

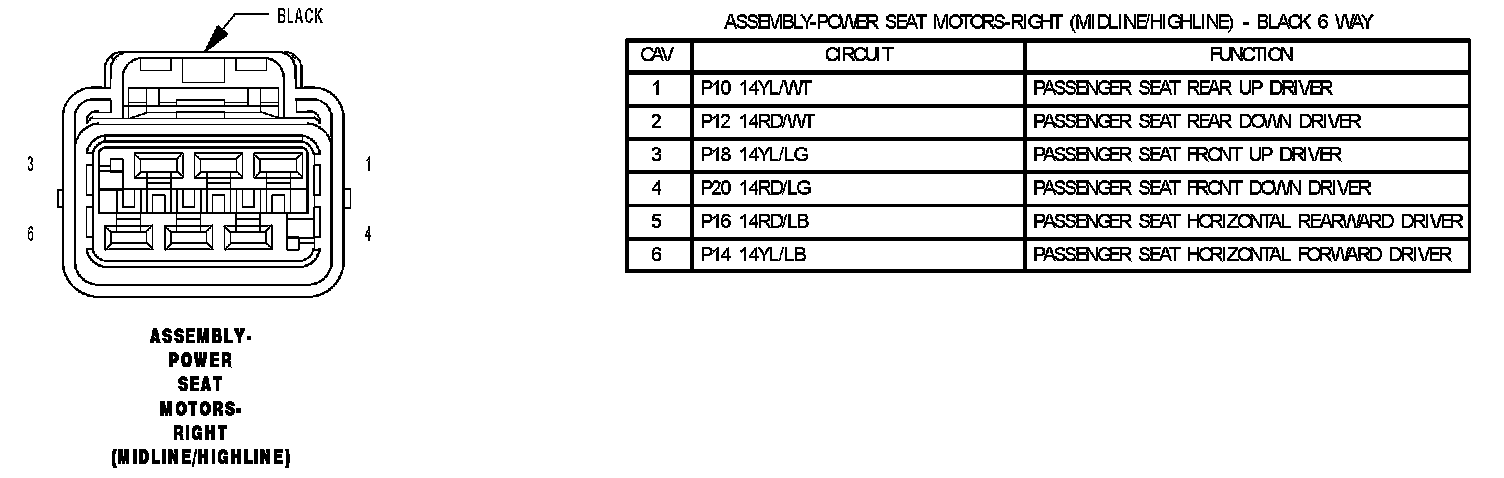

Assembly - Power Seat Motors Right (Midline/Highline):
