Passenger Assist Handle: Service and Repair

ASSIST HANDLE

REMOVAL

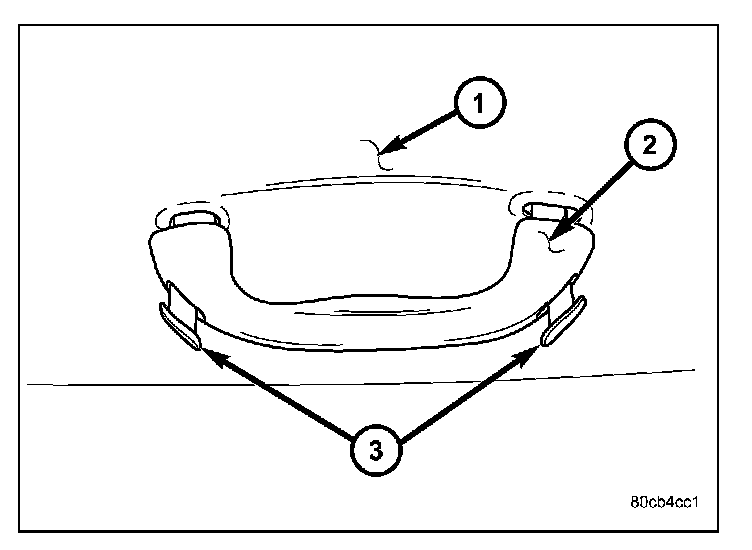

1. Using a small pry tool or equivalent, release the assist handle by prying out the clips (3) at either end.

INSTALLATION




1. Position the assist handle and seat the retaining clips (3).
