Fuel Tank Skid Plate

FUEL TANK SKID PLATE

REMOVAL

1. Raise and support the vehicle.
2. Support the skid plate with a suitable lifting device.

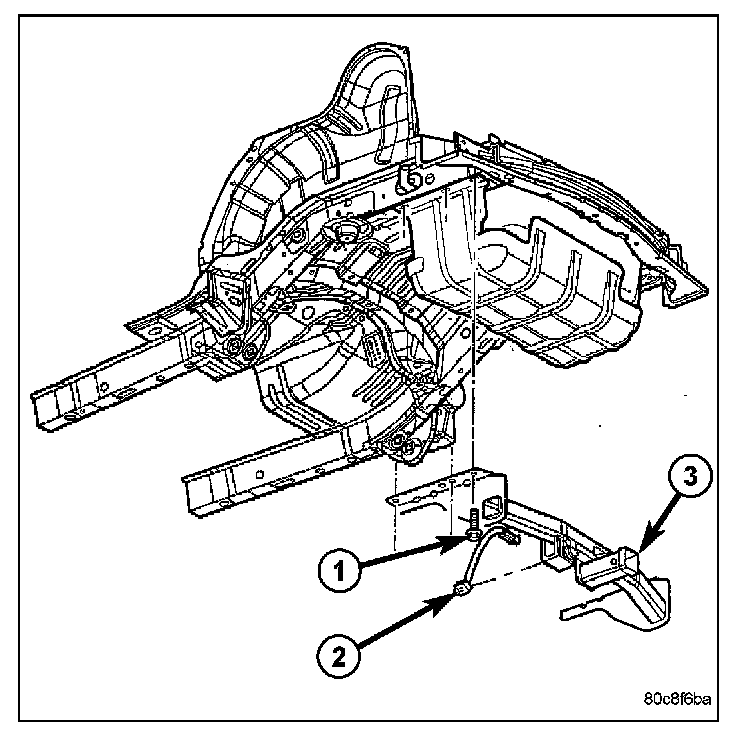

3. Remove the trailer hitch, if equipped.

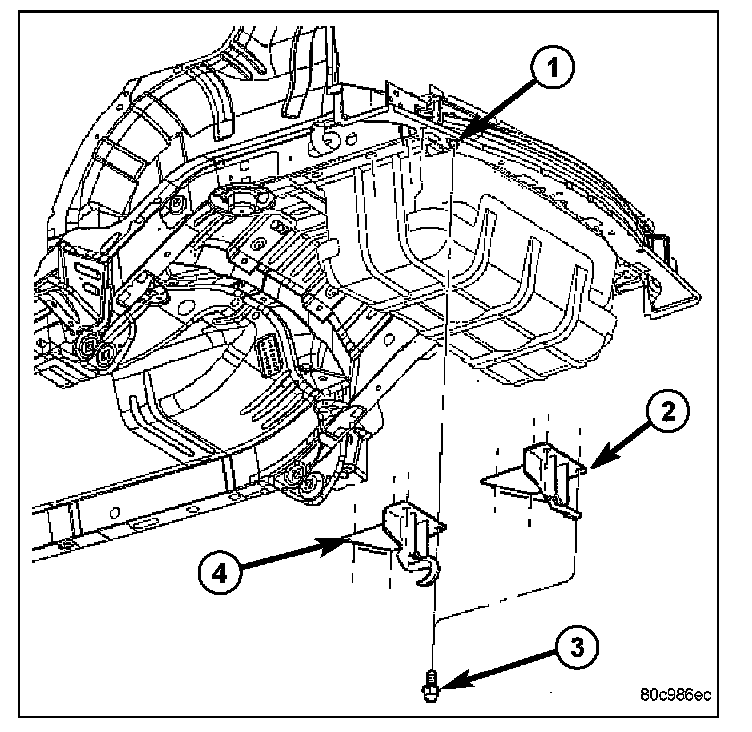

4. Remove the tow hooks, if not previously removed.

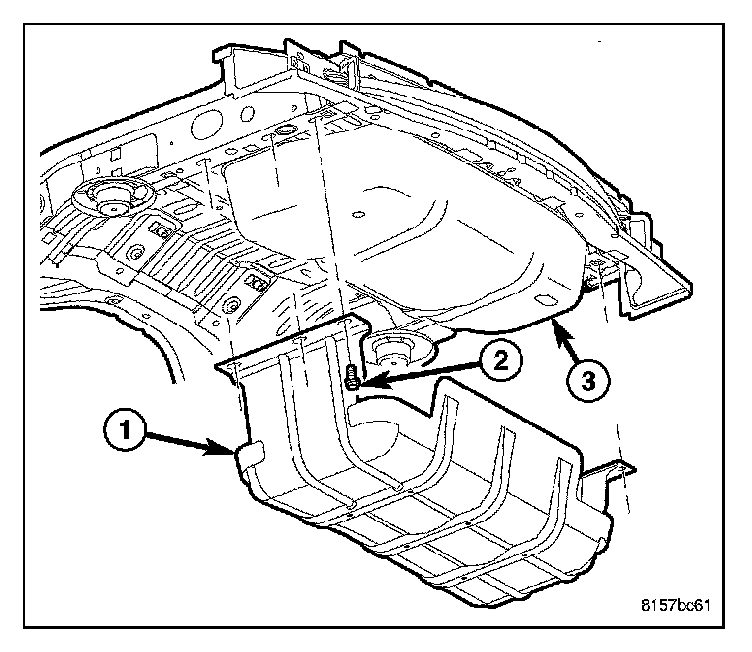

5. Remove the bolts and remove the fuel tank skid plate.

INSTALLATION




1. Install the skid plate and support with a suitable lifting device.




2. Install the tow hooks, if equipped.




3. Install the trailer hitch, if equipped.

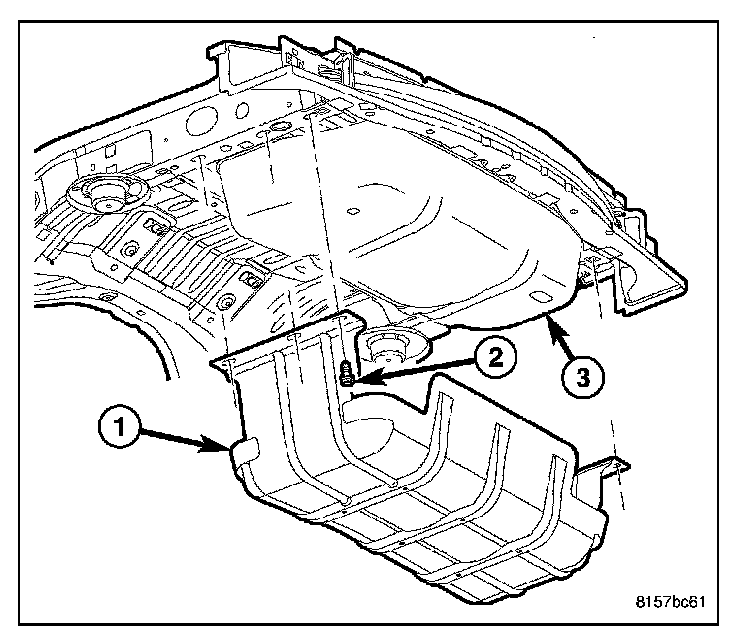

4. Install the bolts and tighten to 88 N.m (65 ft.lbs.).
