Rear Fender Liner: Service and Repair

REAR WHEELHOUSE SPLASH SHIELD

REMOVAL

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the wheel.
3. Remove the two rivets connecting the shield to the side sill molding.
4. Remove the four rivets connecting the flare molding to the shield.

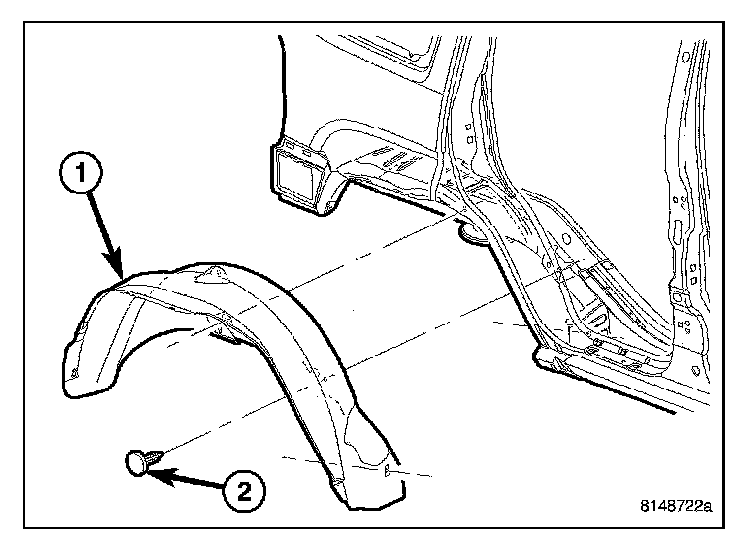

5. Remove the two push pin fasteners (2) and remove the shield (1).

INSTALLATION




1. Install the splash shield (1) and install the three push pin fasteners (2).
2. Position the rear flare molding and seat the clips attaching it to the body and the rear fascia.
3. Install five new rivets attaching the flare to the splash shield.
4. Install the wheel.
