Cellular Phone: Service and Repair

HANDS FREE MODULE

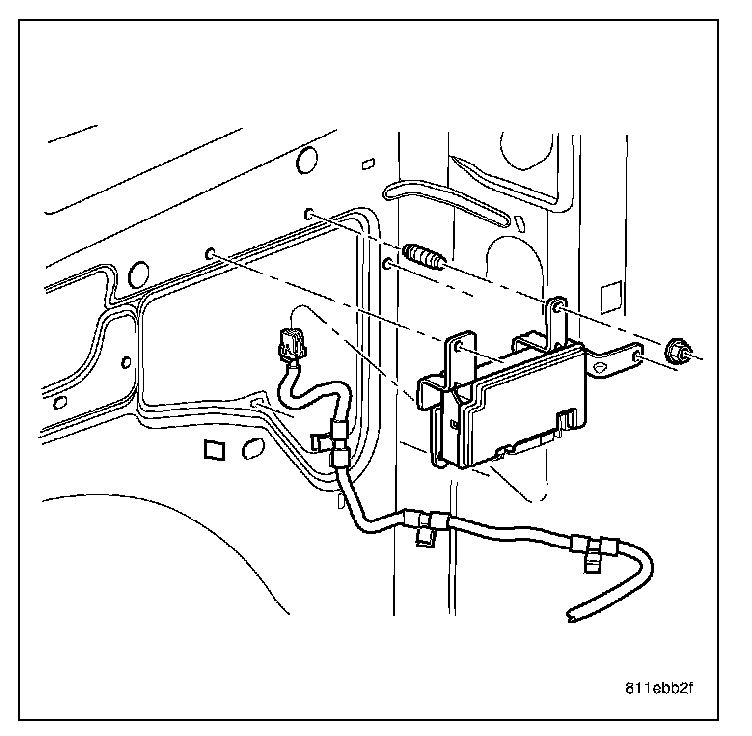

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove the right quarter trim panel.
3. Remove mounting fasteners.
4. Disconnect electrical harness connector.

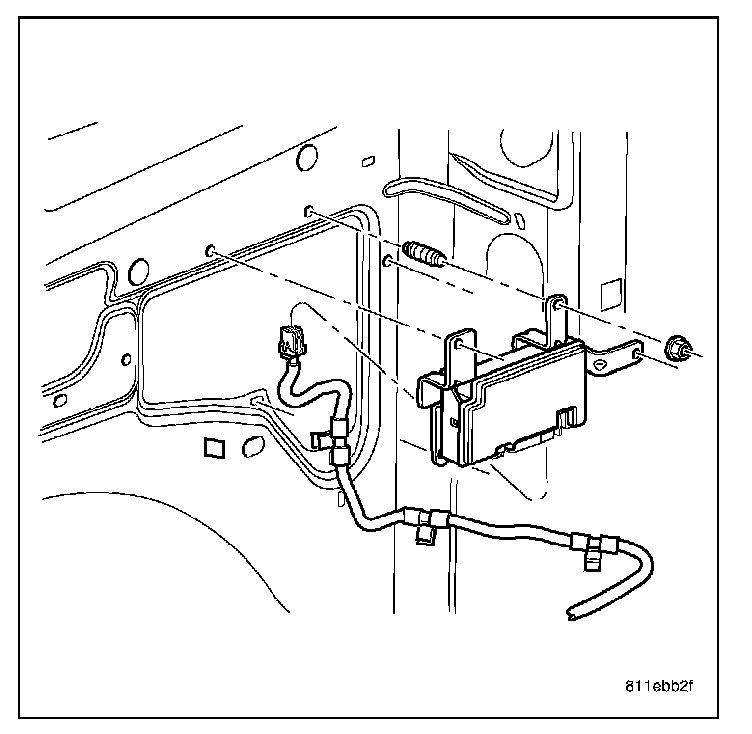

INSTALLATION




1. Connect electrical harness connector.
2. Position module, and install mounting fasteners.
3. Install quarter trim panel.
4. Connect battery negative cable.
