Body Control System

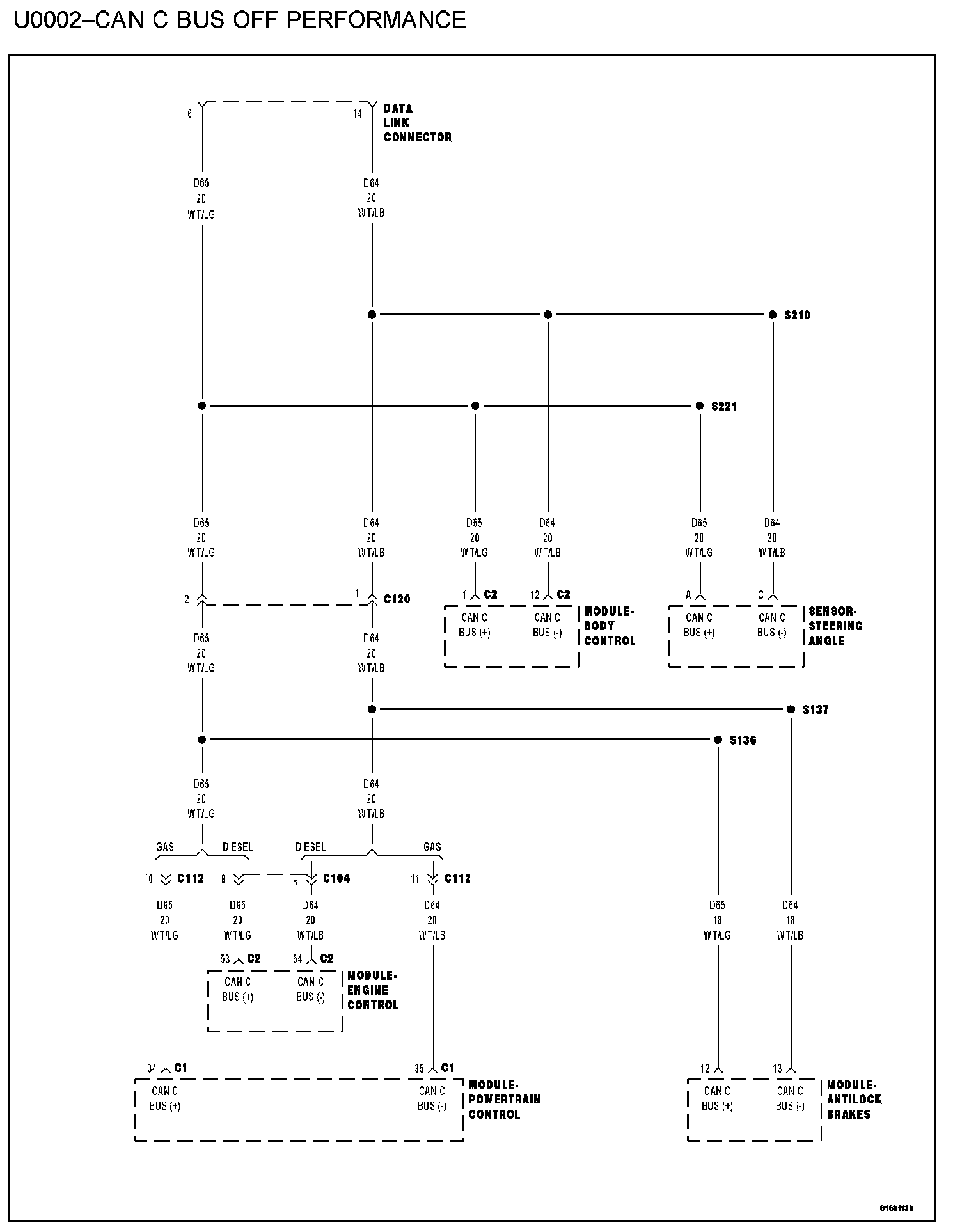

U0002-CAN C BUS OFF PERFORMANCE

U0002 - Can C Bus Off Performance:

WHEN MONITORED
With the ignition on.

SET CONDITION
A module detects a short in either CAN C Bus circuit.

Perform the CAN C Bus Communication Failure diagnostic test procedure. CAN C Bus Communication Failure
