Body Control System

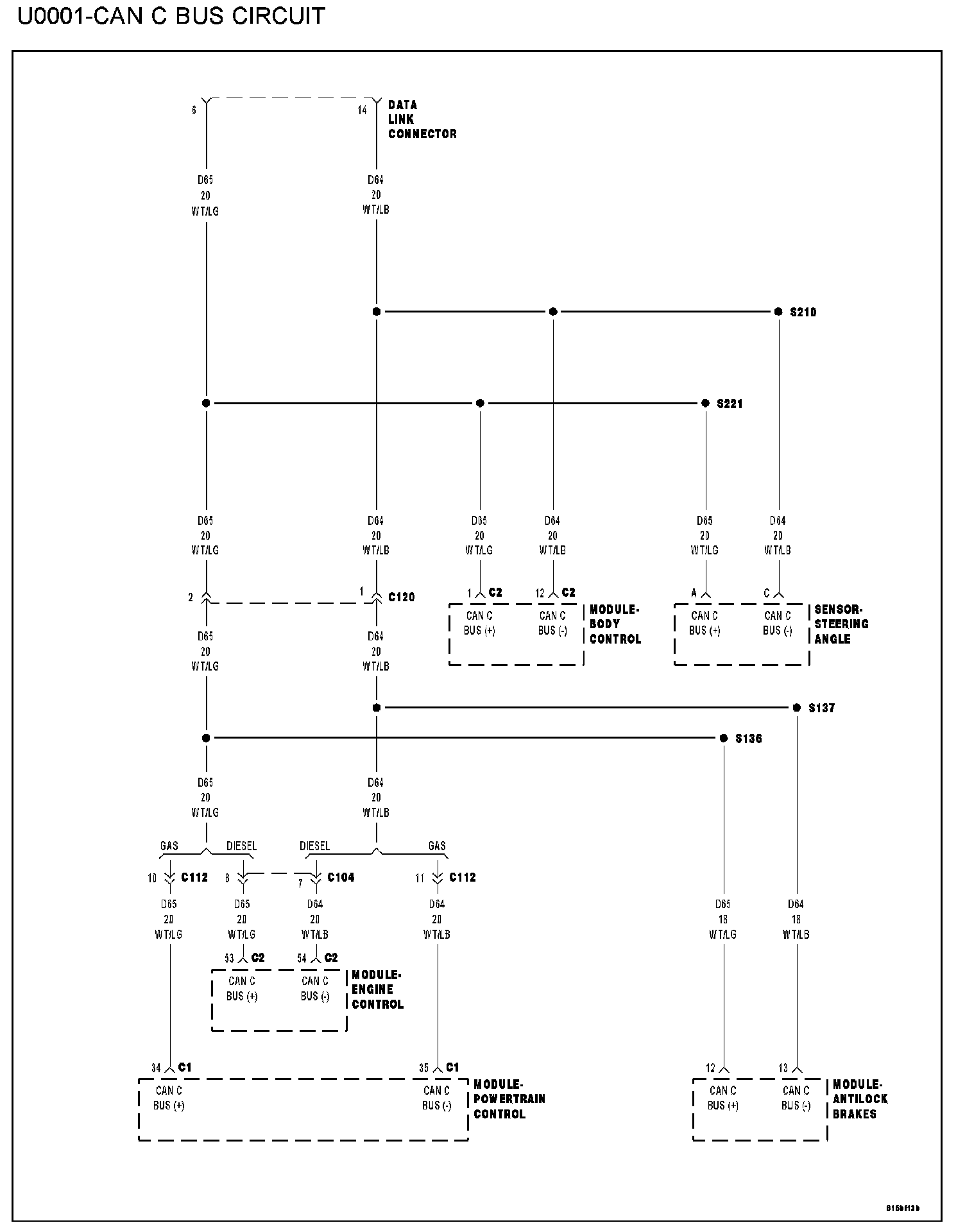

U0001-CAN C BUS CIRCUIT

U0001 - Can C Bus Circuit:

WHEN MONITORED
With the ignition on.

SET CONDITION
A module detects a short in either CAN C Bus circuit.

Perform the CAN C Bus Communication Failure diagnostic test procedure. CAN C Bus Communication Failure
