Jeep Truck
>>
2006
>>
Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Motor
>>
Diagrams
>>
Connector Views
Connector Views
Motor Rear Window Wiper:

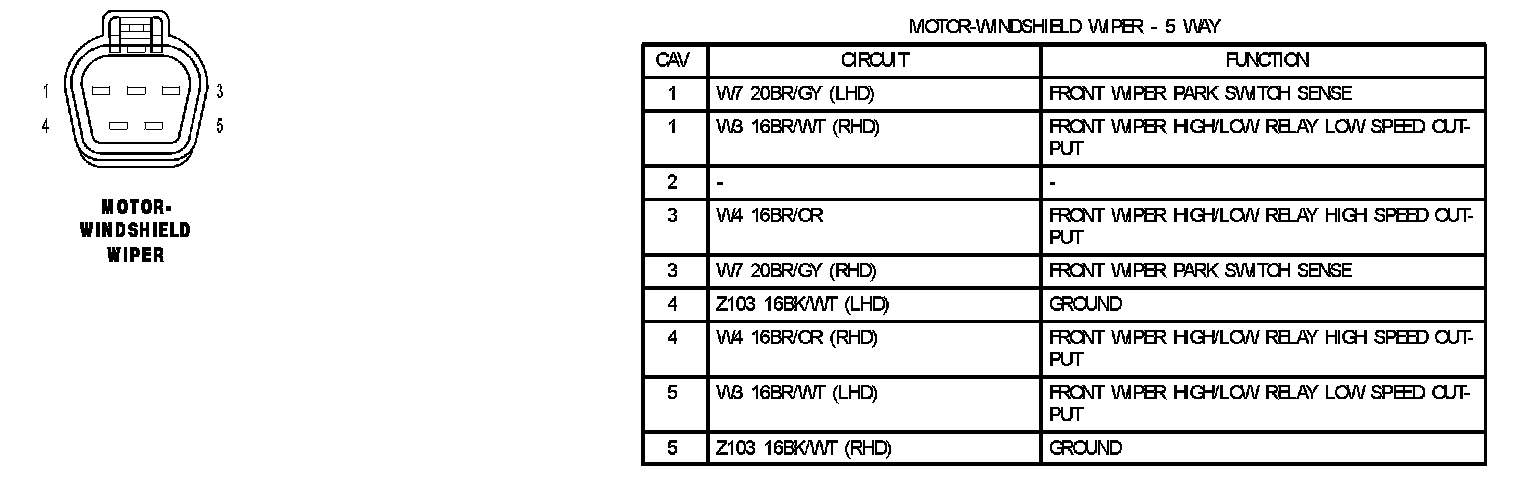

Motor Windshield Wiper:
