Flex Plate: Service and Repair

FLEX PLATE

REMOVAL





1. Remove the transmission.

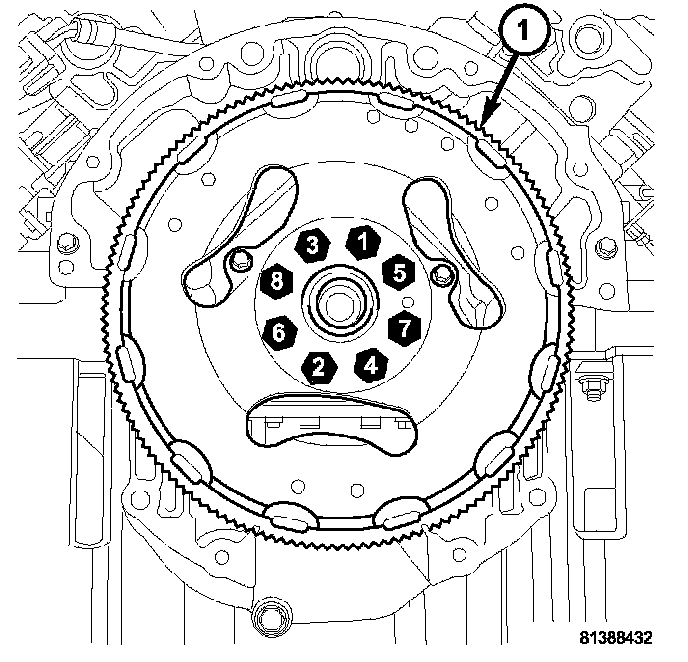

2. Remove the bolts and flexplate (1).

INSTALLATION





1. Position the flexplate or flywheel onto the crankshaft and install the bolts hand tight.
2. For automatic transmissions: Tighten the flexplate retaining bolts to 95 Nm (70 ft. lbs.).
3. Install the transmission.
