Home >> Jeep Truck >> 2006 >> Grand Cherokee 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shifter A/T >> Diagrams

Shifter A/T: Diagrams

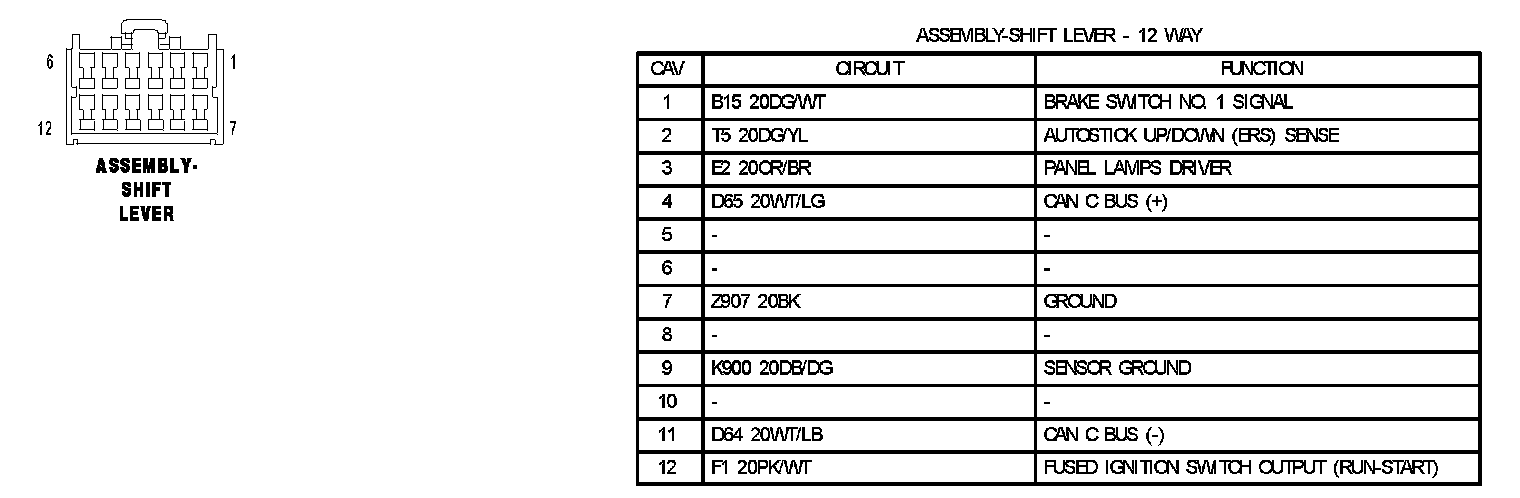

Assembly Shift Lever:
