Impact Sensor: Service and Repair
FRONTWARNING:
- TO AVOID PERSONAL INJURY OR DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, AIRBAG, OCCUPANT CLASSIFICATION SYSTEM, SEAT BELT TENSIONER, IMPACT SENSOR, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT.
- TO AVOID PERSONAL INJURY OR DEATH, NEVER STRIKE OR DROP THE FRONT IMPACT SENSOR, AS IT CAN DAMAGE THE IMPACT SENSOR OR AFFECT ITS CALIBRATION. THE FRONT IMPACT SENSOR ENABLES THE SYSTEM TO DEPLOY THE FRONT SUPPLEMENTAL RESTRAINTS. IF AN IMPACT SENSOR IS ACCIDENTALLY DROPPED DURING SERVICE, THE SENSOR MUST BE SCRAPPED AND REPLACED WITH A NEW UNIT. FAILURE TO OBSERVE THIS WARNING COULD RESULT IN ACCIDENTAL, INCOMPLETE, OR IMPROPER FRONT SUPPLEMENTAL RESTRAINT DEPLOYMENT.
NOTE: The front and side impact sensors are interchangeable.
REMOVAL
1. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.

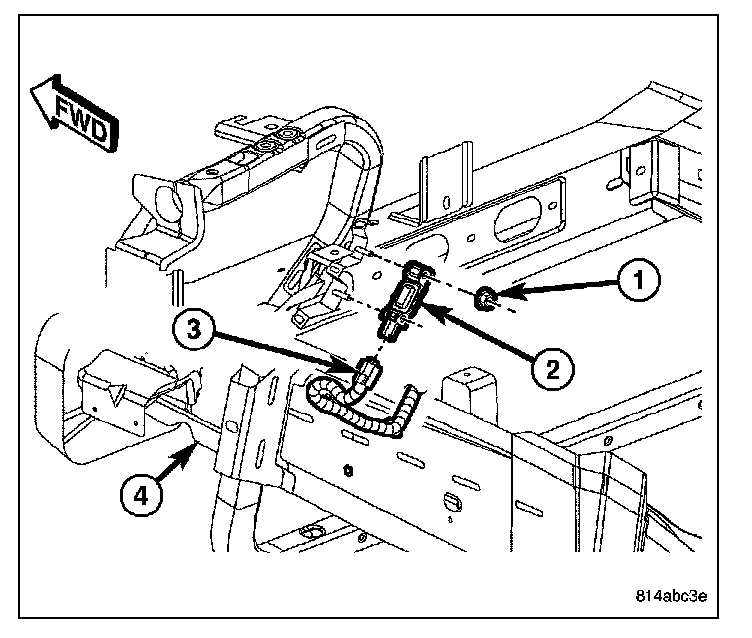

2. Disconnect the headlamp and dash wire harness connector (3) from the right or left front impact sensor (2) connector receptacle.
3. Remove the two nuts (1) that secure the sensor to the studs on the back of the right or left radiator support vertical member.
4. Remove the right or left front impact sensor from the engine compartment.
INSTALLATION
1. Position the right or left front impact sensor (2) into the engine compartment.
2. Carefully position the sensor onto the studs on the back of the right or left radiator support vertical member. Be certain that the anti - rotation pin on the back of the sensor is engaged in the center clearance hole of the radiator support and the arrow on the sensor label is pointed forward in the vehicle.
3. Reconnect the headlamp and dash wire harness connector (3) to the sensor connector receptacle.
4. Install and tighten the two nuts that secure the sensor to the back of the support vertical member. Tighten the nuts to 8 N.m (70 in. lbs.).
5. Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test procedure should be performed following service of any supplemental restraint system component.
SIDE-B-PILLAR
WARNING:
- TO AVOID PERSONAL INJURY OR DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, AIRBAG, OCCUPANT CLASSIFICATION SYSTEM, SEAT BELT TENSIONER, IMPACT SENSOR, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT.
- TO AVOID PERSONAL INJURY OR DEATH, NEVER STRIKE OR DROP THE SIDE IMPACT SENSOR, AS IT CAN DAMAGE THE IMPACT SENSOR OR AFFECT ITS CALIBRATION. THE SIDE IMPACT SENSOR ENABLES THE SYSTEM TO DEPLOY THE SIDE CURTAIN SUPPLEMENTAL RESTRAINTS. IF AN IMPACT SENSOR IS ACCIDENTALLY DROPPED DURING SERVICE, THE SENSOR MUST BE SCRAPPED AND REPLACED WITH A NEW UNIT. FAILURE TO OBSERVE THIS WARNING COULD RESULT IN ACCIDENTAL, INCOMPLETE, OR IMPROPER FRONT SUPPLEMENTAL RESTRAINT DEPLOYMENT.
NOTE: The front and side impact sensors are interchangeable.
REMOVAL
1. Adjust the driver or passenger side front seat to its most forward position for easiest access to the B - pillar trim.
2. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.
3. Remove the trim from the inside of the lower right or left B - pillar (1).

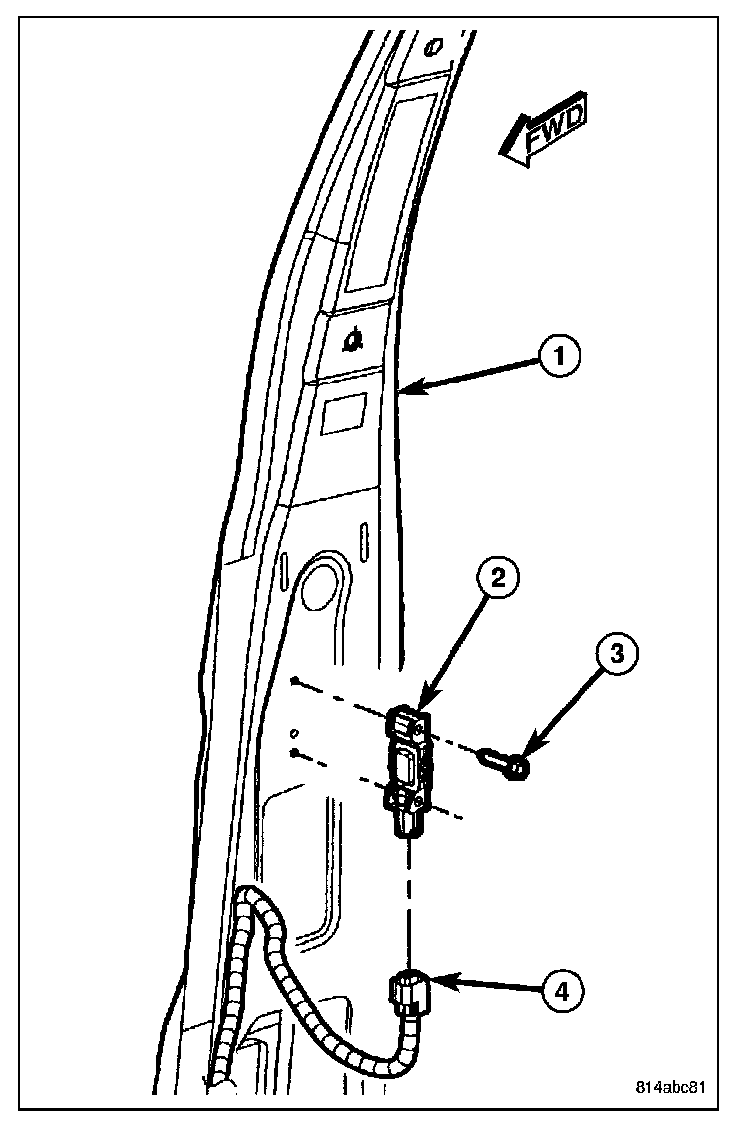

4. Disconnect the body wire harness connector (4) from the side impact sensor (2) connector receptacle.
5. Remove the two screws (3) that secure the sensor to the lower B - pillar.
6. Remove the sensor from the B - pillar.
INSTALLATION
1. Position the side impact sensor (2) onto the inner B - pillar (1). Be certain that the anti - rotation pin on the back of the sensor is engaged in the clearance hole of the B - pillar.
2. Install and tighten the two screws (3) that secure the sensor to the inner B - pillar. Tighten the screws to 8 N.m (70 in. lbs.).
3. Reconnect the body wire harness connector (4) to the sensor connector receptacle.
4. Reinstall the lower trim onto the inside of the B - pillar.
5. Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test procedure should be performed following service of any supplemental restraint system component.
SIDE-C-PILLAR
WARNING:
- TO AVOID PERSONAL INJURY OR DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, AIRBAG, OCCUPANT CLASSIFICATION SYSTEM, SEAT BELT TENSIONER, IMPACT SENSOR, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT.
- TO AVOID PERSONAL INJURY OR DEATH, NEVER STRIKE OR DROP THE SIDE IMPACT SENSOR, AS IT CAN DAMAGE THE IMPACT SENSOR OR AFFECT ITS CALIBRATION. THE SIDE IMPACT SENSOR ENABLES THE SYSTEM TO DEPLOY THE SIDE CURTAIN SUPPLEMENTAL RESTRAINTS. IF AN IMPACT SENSOR IS ACCIDENTALLY DROPPED DURING SERVICE, THE SENSOR MUST BE SCRAPPED AND REPLACED WITH A NEW UNIT. FAILURE TO OBSERVE THIS WARNING COULD RESULT IN ACCIDENTAL, INCOMPLETE, OR IMPROPER FRONT SUPPLEMENTAL RESTRAINT DEPLOYMENT.
NOTE: The front and side impact sensors are interchangeable.
REMOVAL
1. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.
2. Remove the quarter trim panel from the lower C - pillar.

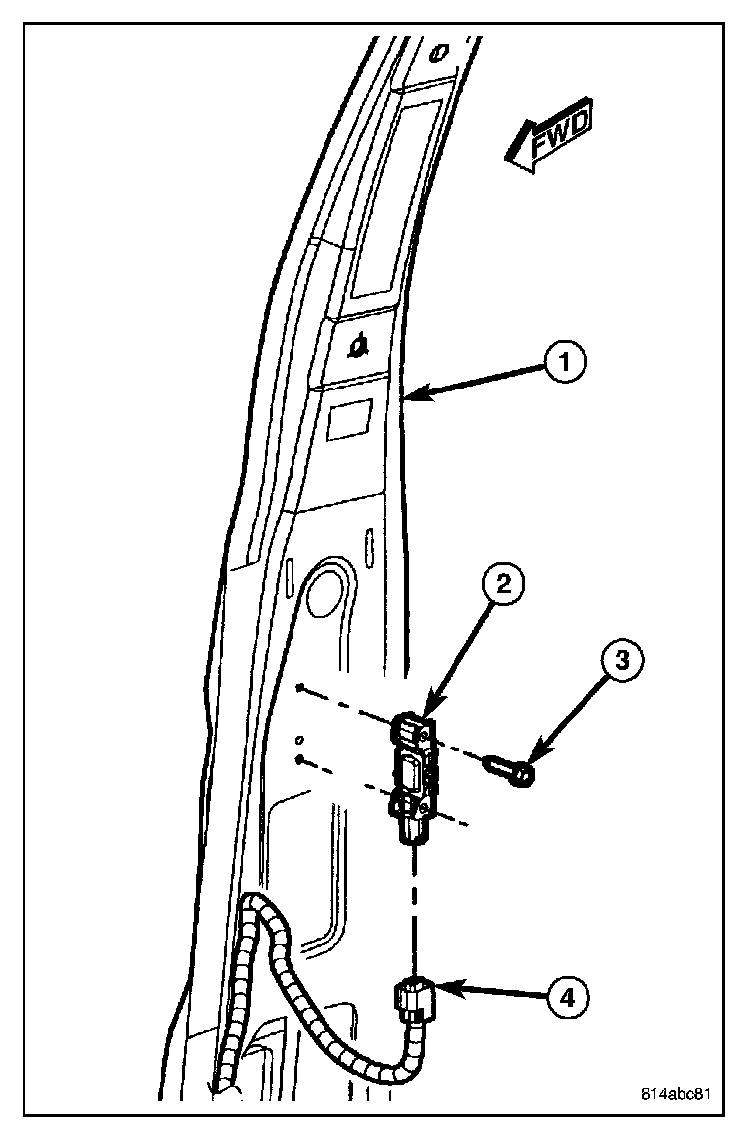

3. Disconnect the body wire harness connector (4) from the side impact sensor (2) connector receptacle.
4. Remove the two screws (3) that secure the sensor to the C - pillar (1).
5. Remove the sensor from the C - pillar.
INSTALLATION

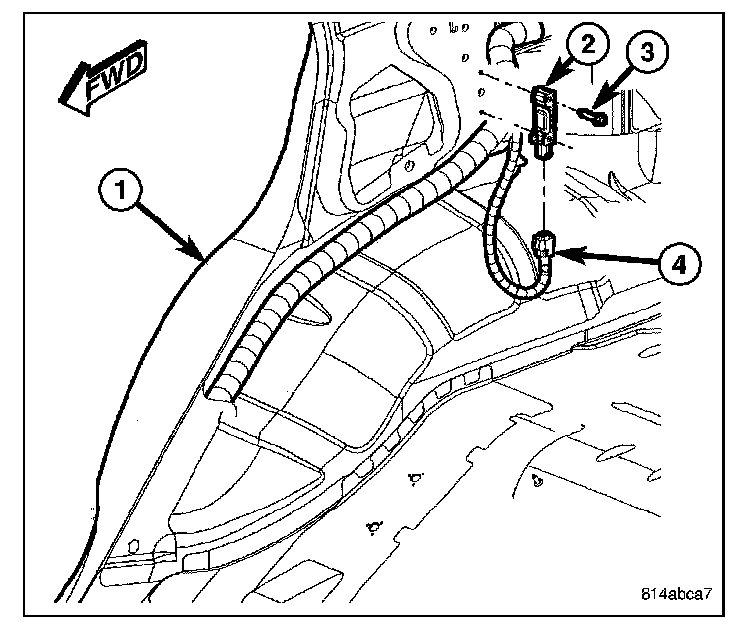

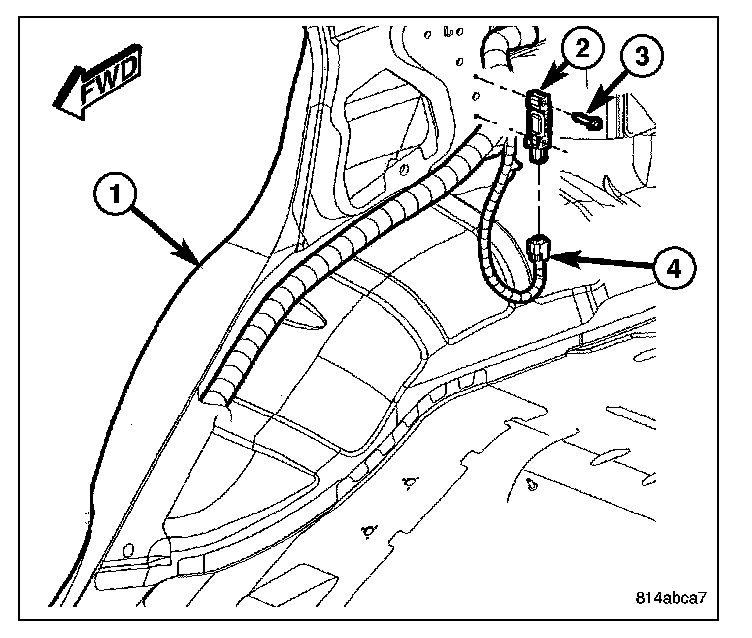

1. Position the side impact sensor (2) onto the inner C - pillar (1). Be certain that the anti - rotation pin on the back of the sensor is engaged in the clearance hole of the C - pillar.
2. Install and tighten the two screws (3) that secure the sensor to the inner C - pillar. Tighten the screws to 8 N.m (70 in. lbs.).
3. Reconnect the body wire harness connector (4) to the sensor connector receptacle.
4. Reinstall the quarter trim panel onto the lower C - pillar.
5. Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test procedure should be performed following service of any supplemental restraint system component.
