Home >> Jeep Truck >> 2006 >> Grand Cherokee 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Starting and Charging >> Starter Relay >> Diagrams

Starter Relay: Diagrams

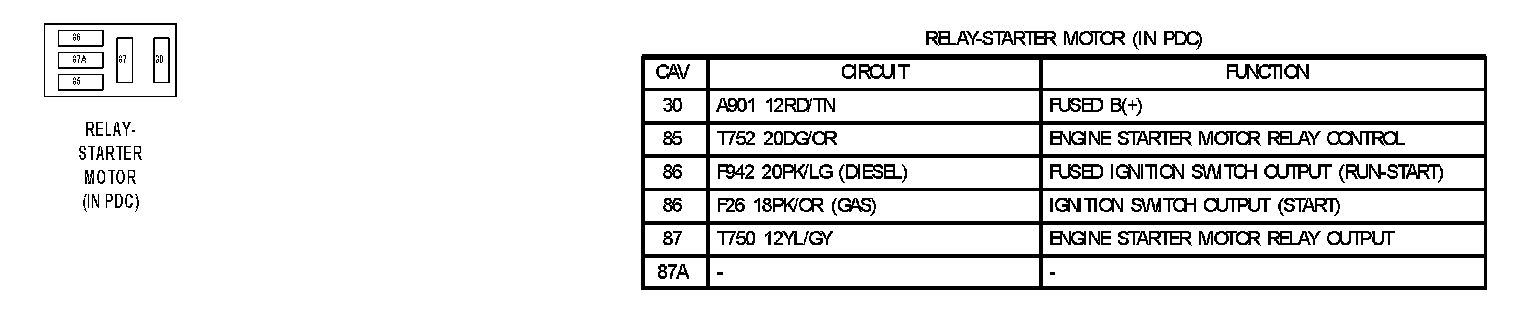

Relay Starter Motor (In PDC):
