Blower Motor Relay: Service and Repair

NOTE:

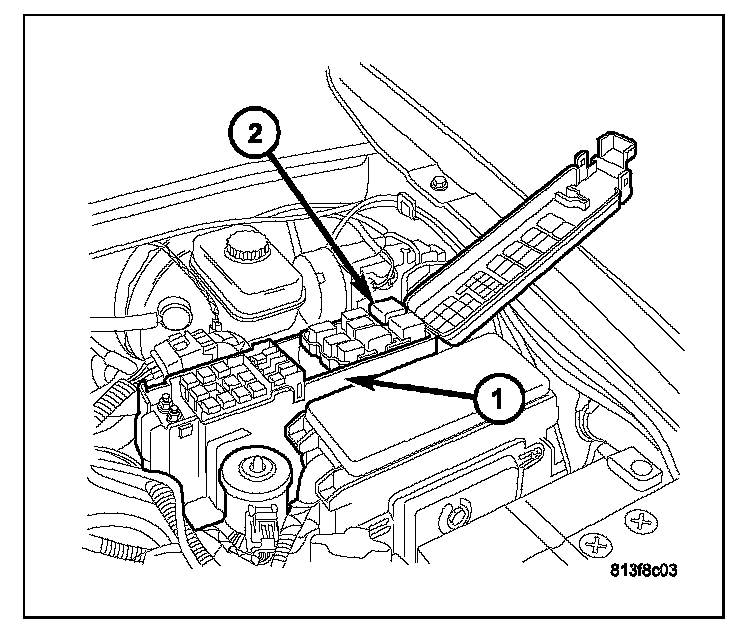

- LHD gasoline model shown. Diesel and RHD models similar.
- Refer to the fuse and relay layout map on the inside of the PDC cover for blower motor relay location.

REMOVAL




1. Disconnect and isolate the negative battery cable.
2. Open the cover of the power distribution center (PDC) (1) located in the engine compartment.
3. Remove the blower motor relay (2) from the PDC.

INSTALLATION




1. Position the blower motor relay (2) into the proper receptacle of the power distribution center (PDC) (1).
2. Align the blower motor relay terminals with the terminal cavities in the PDC receptacle and push down firmly on the relay until the terminals are fully seated.
3. Close the cover of the PDC.
4. Reconnect the negative battery cable.
