Trailer Towing Relay: Diagrams

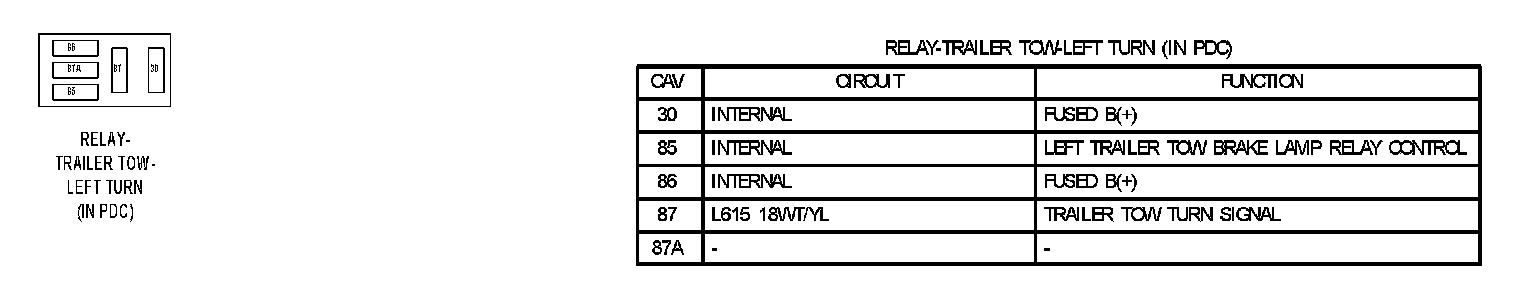

Relay Trailer Tow Left Turn (In PDC):



Relay Trailer Tow Right Turn (In IPM):



Wiring Trailer Tow 4-way:

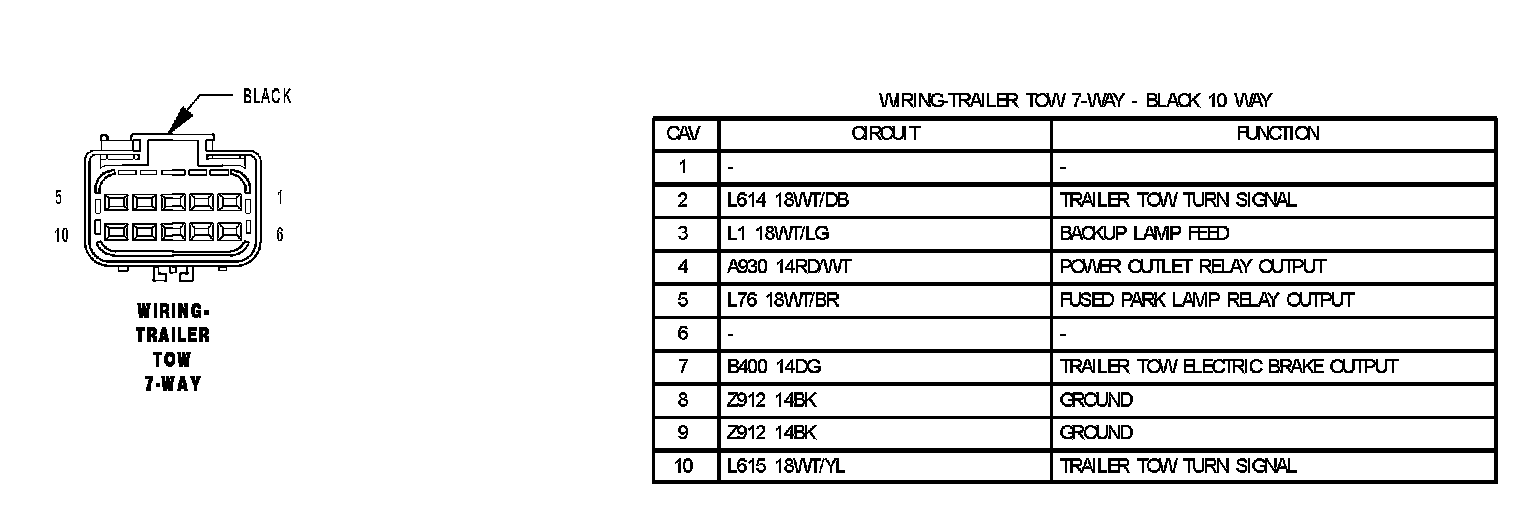

Wiring Trailer Tow 7-way:



Wiring Trailer Tow Terminal - 1 Way:
