Air Cleaner Housing: Service and Repair

AIR INTAKE SYSTEM

Housing Assembly

REMOVAL

NOTE: Always unplug the Charge Air Temperature sensor before removing the resonator.





1. Loosen clamp and disconnect air duct at air cleaner cover.

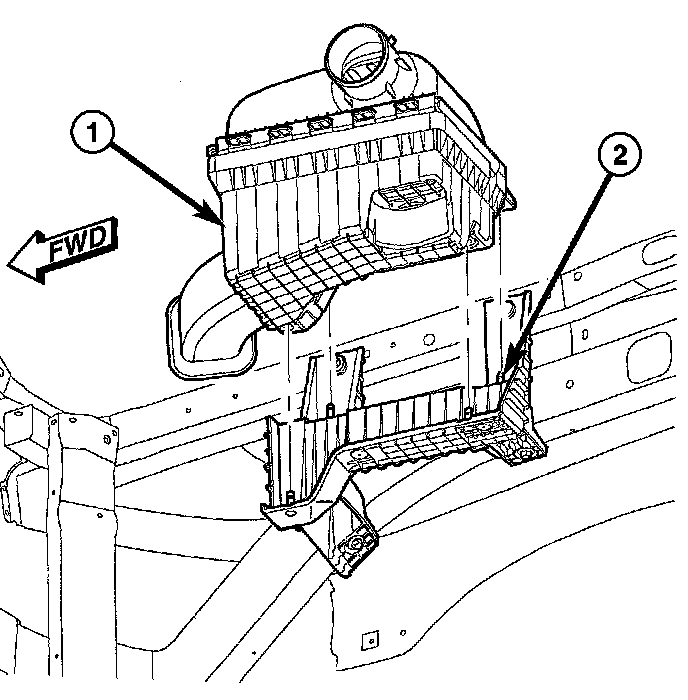

2. Lift entire housing assembly (1)from 4 locating pins (2).

INSTALLATION
1. Install filter element into housing.
2. Position housing cover into housing locating tabs.
3. Pry up 4 spring clips and lock cover to housing.
4. Install air duct to air cleaner cover and tighten hose clamp to 3 Nm (30 inch lbs.) torque.
5. If any other hose clamps were removed from air intake system, tighten them to 3.4 Nm (30 inch lbs.) torque.
6. If any bolts were removed from air resonator housing or air intake tubing, tighten them to 4.5 Nm (40 inch lbs.) torque.
