Jeep Truck
>>
2006
>>
Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Figure 5
Figure 5

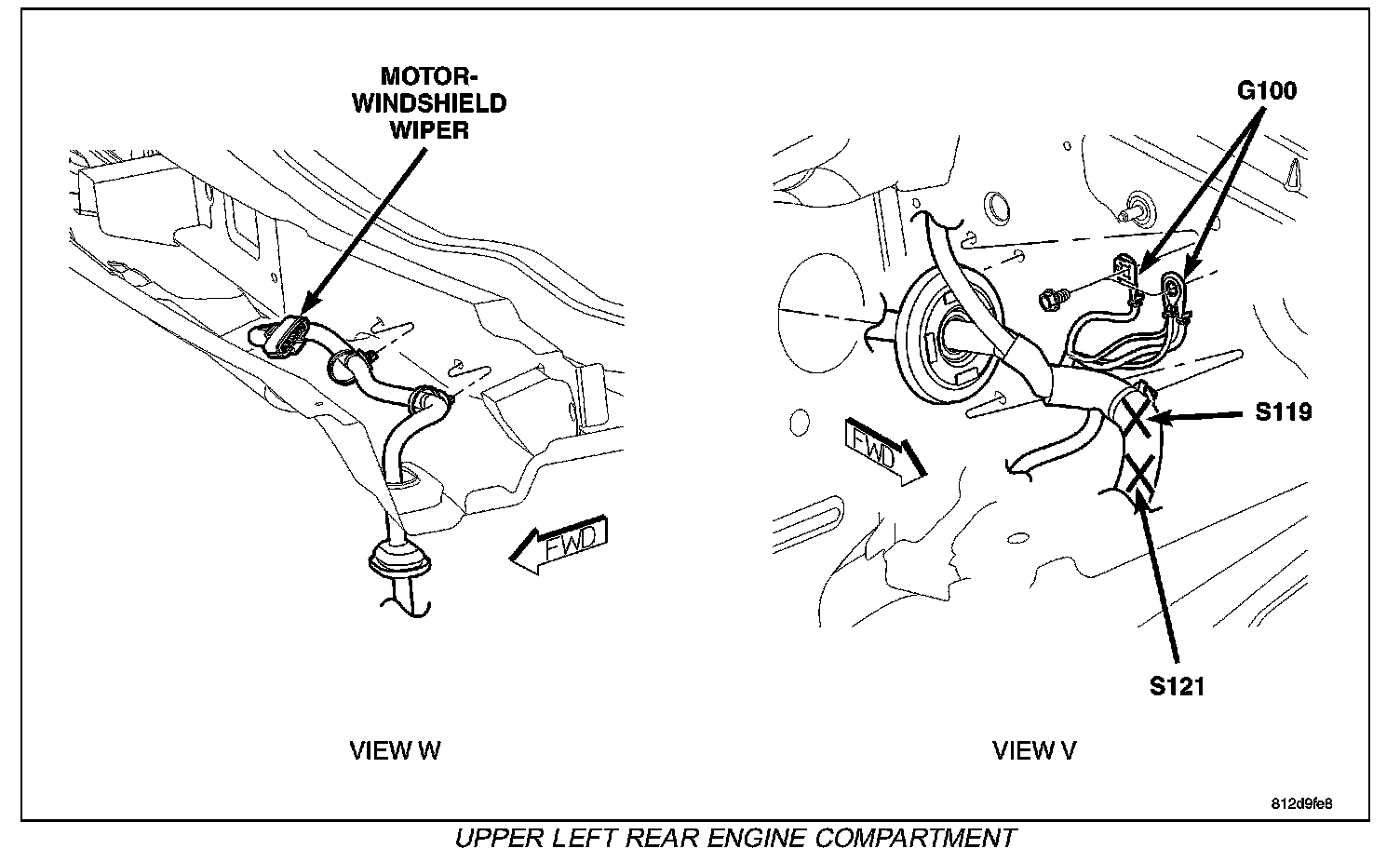

Upper Left Rear Engine Compartment:

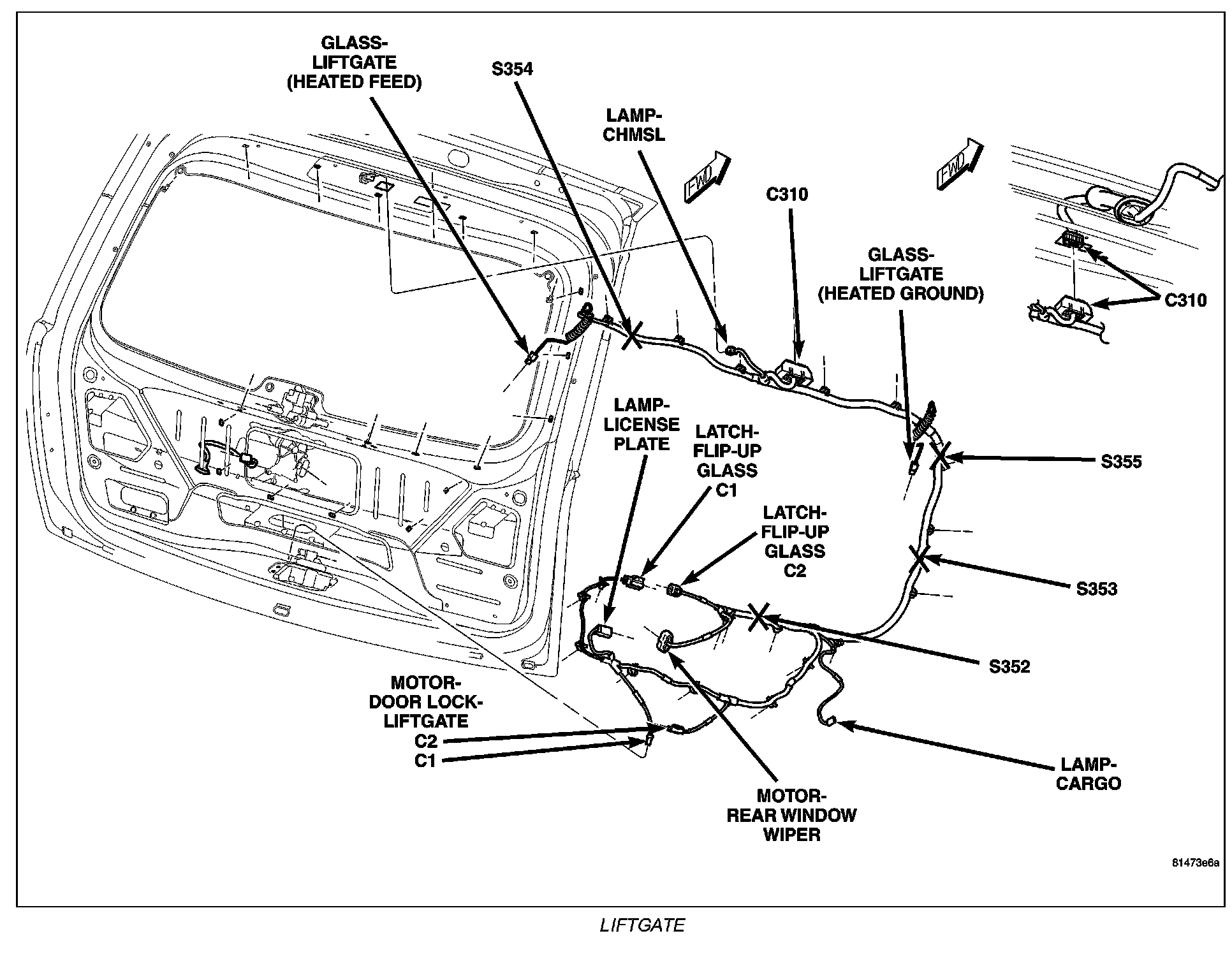

Liftgate:
