Jeep Truck
>>
2006
>>
Grand Cherokee 2WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Connector Views
Connector Views

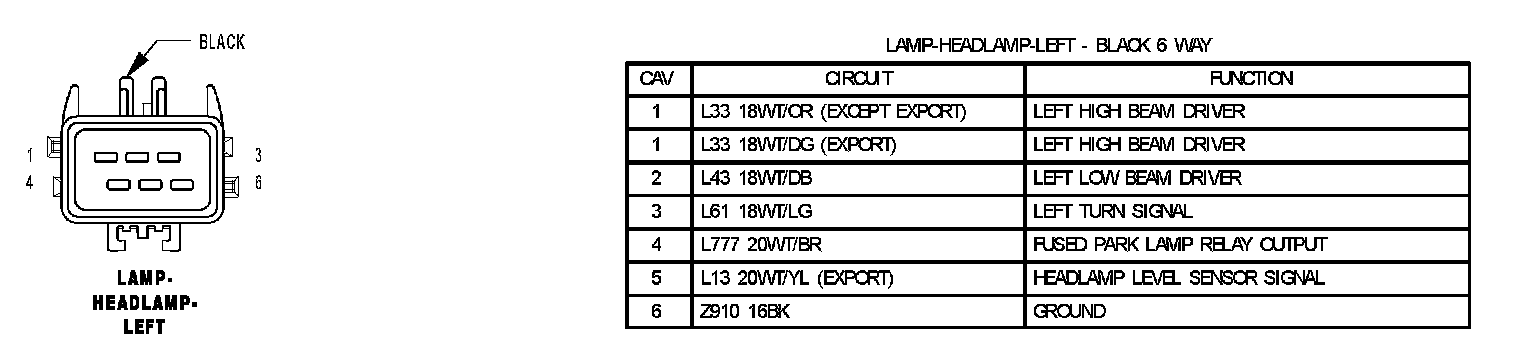

Lamp Headlamp Left:

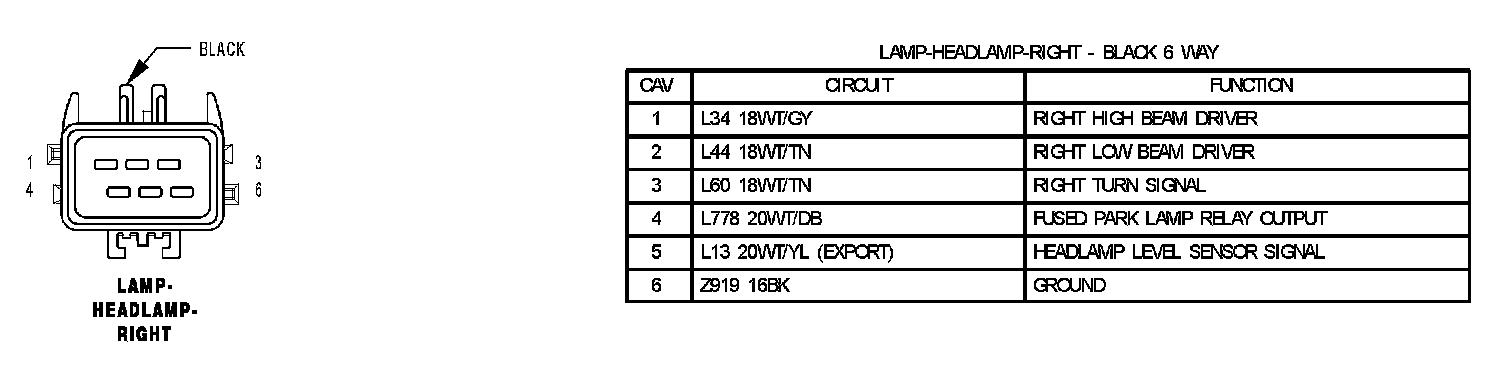

Lamp Headlamp Right:
