Connector Views

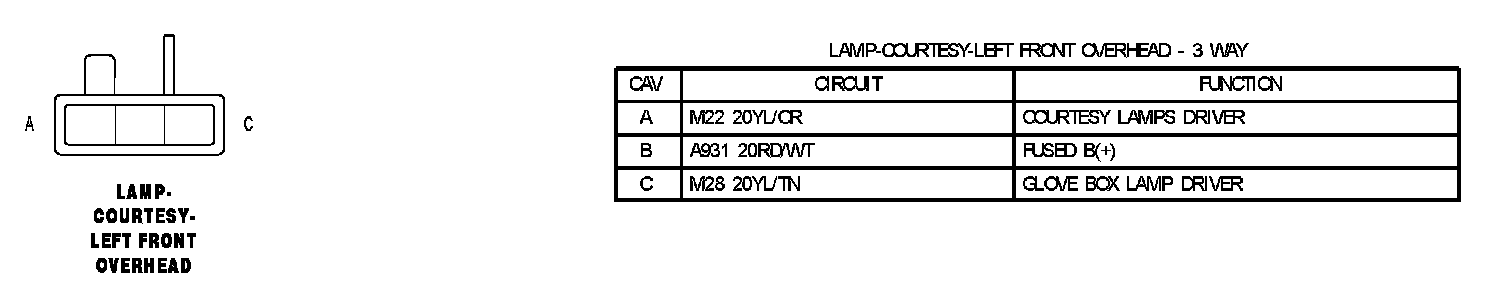

Lamp Courtesy Left Front Overhead:

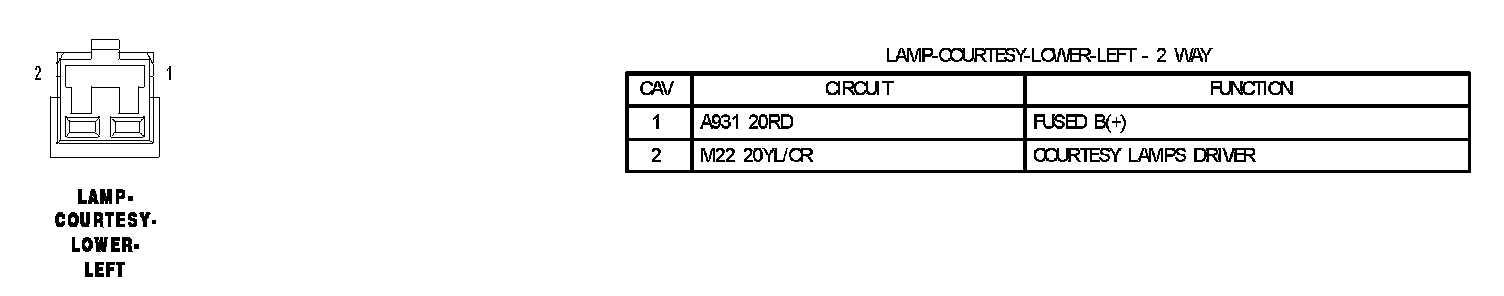

Lamp Courtesy Lower Left:

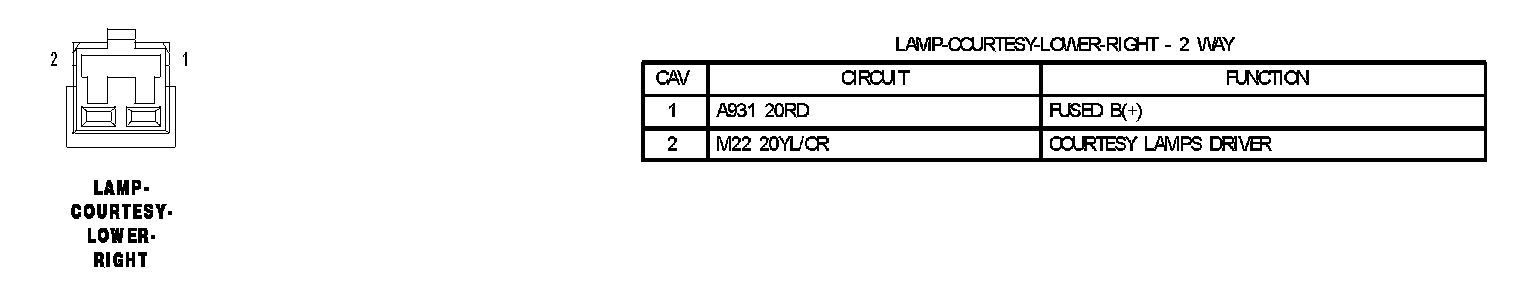

Lamp Courtesy Lower Right:

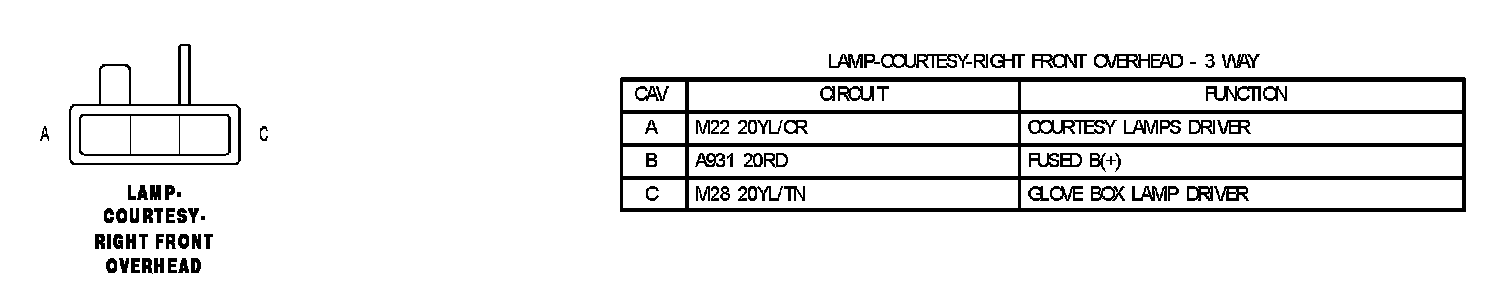

Lamp Courtesy Right Front Overhead:

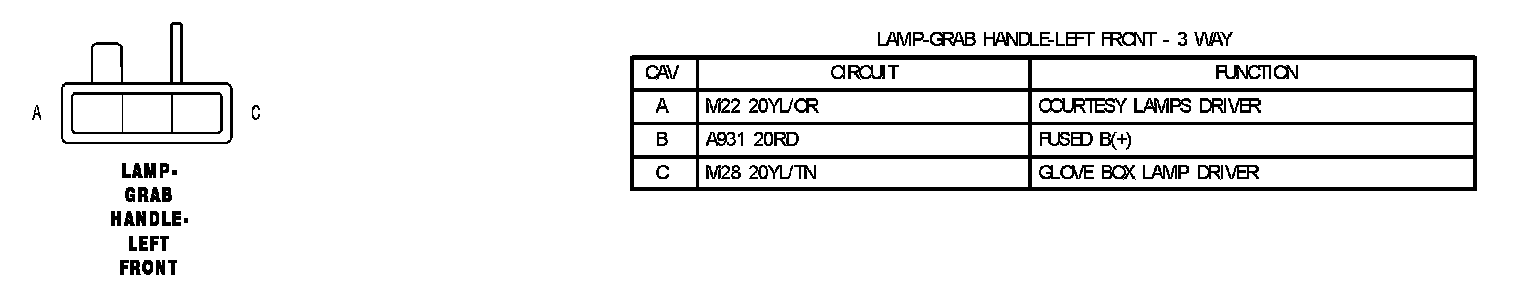

Lamp Grab Handle Left Front:

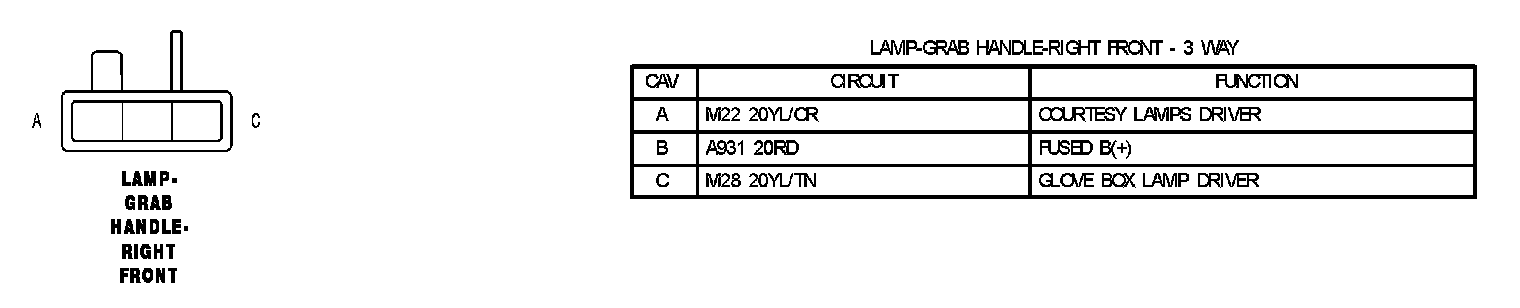

Lamp Grab Handle Right Front:
