Vent

REMOVAL




1. Remove the front lamp unit from the front of the vehicle.

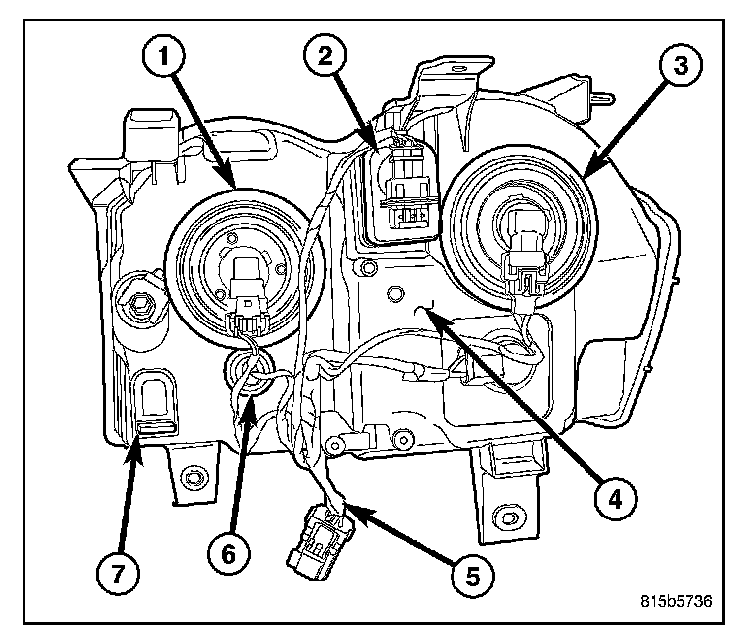

2. Locate the vent (7) in the lower inboard corner on the back of the lamp housing.




3. Using a suitable pair of pliers, firmly grasp the vent (1) and pry it out of the vent chimney formation (3) on the back of the lamp housing until the vent latch features (2) release.
4. Discard the removed vent.

INSTALLATION




1. Align the new vent (1) to the vent chimney formation (3) on the back of the lamp housing.
2. Using hand pressure, press the vent firmly and evenly onto the chimney until the vent latch features (2) are fully engaged.
3. Reinstall the front lamp unit onto the front of the vehicle.
